(1.34.2/01) - 28X16 FOR 16X16 MECHANICAL TRANSMISSION (CREEPER) - LEVER AND BELLOWS (VAR.330111)

Запчасти Case IH FARMALL 75C (1.34.2/01) - 28X16 FOR 16X16 MECHANICAL TRANSMISSION (CREEPER) - LEVER AND BELLOWS (VAR.330111) (04) - FRONT AXLE & STEERING

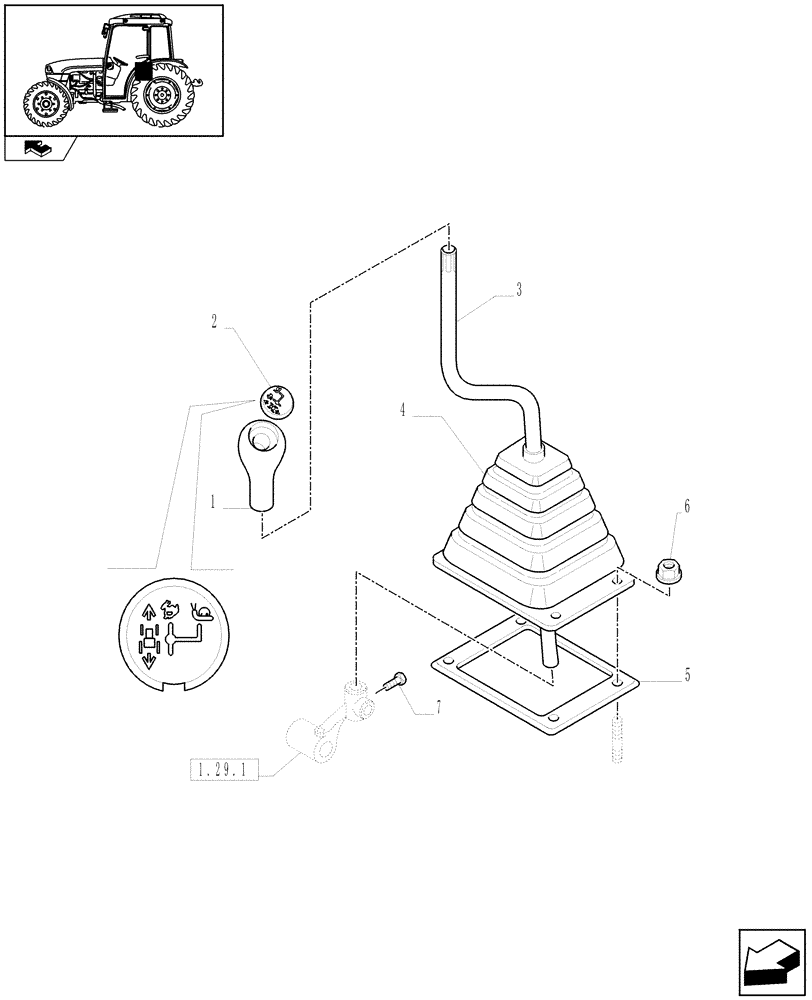

Схема запчастей Case IH FARMALL 75C - (1.34.2/01) - 28X16 FOR 16X16 MECHANICAL TRANSMISSION (CREEPER) - LEVER AND BELLOWS (VAR.330111) (04) - FRONT AXLE & STEERING
5
7
6
3
1.29.1
1
home
4
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47056480

KNOB

1шт.

2

47056544

IDEOGRAM

1шт.

3

5184495

LEVER

1шт.

4

5180694

BELLOWS

1шт.

5

5180678

PLATE

1шт.

6

12578017

FLANGE NUT,Hex, M5 x 0.8, Cl 8

M5

4шт.

7

44013453

SCREW,Hex, M12 x 1.25 x 33mm

M12 x 1.25 x 28

1шт.
