Запчасти Case IH FARMALL 75C (1.33.1/05[01]) - REAR MECH. DIFF. LOCK FOR POWER SHUTTLE - SOLENOID VALVE CAPS - C6389 (VAR.332381) (04) - FRONT AXLE & STEERING

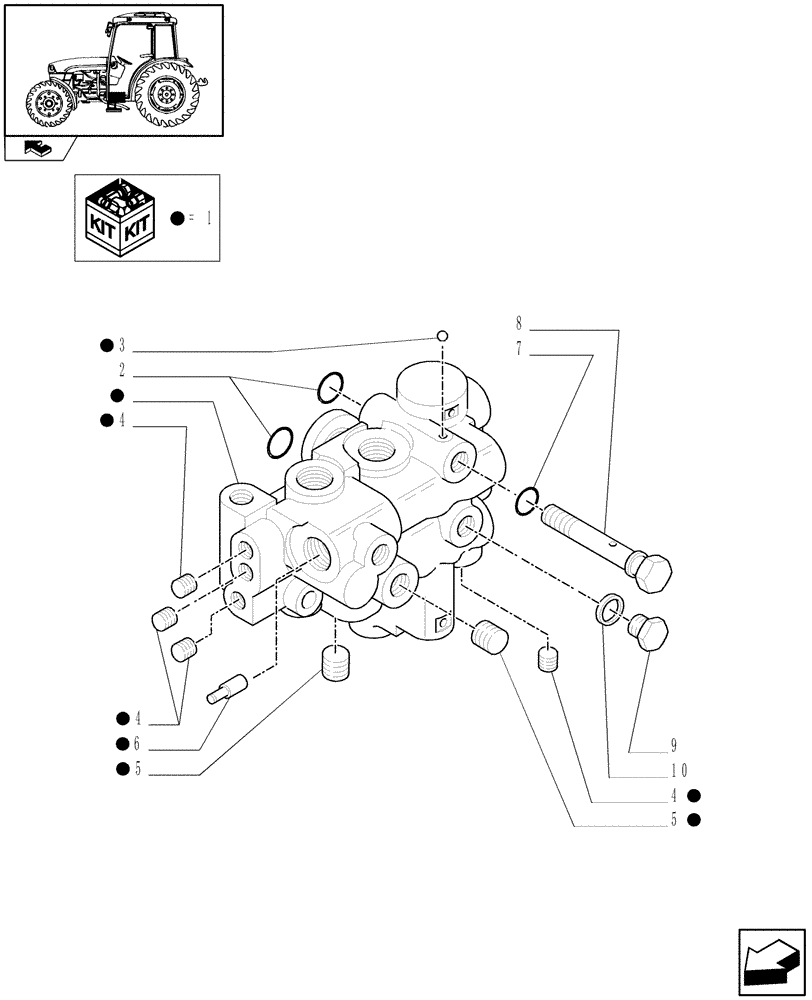

Схема запчастей Case IH FARMALL 75C - (1.33.1/05[01]) - REAR MECH. DIFF. LOCK FOR POWER SHUTTLE - SOLENOID VALVE CAPS - C6389 (VAR.332381) (04) - FRONT AXLE & STEERING
1
1
2
9
4
4
10
5
7
1
1
4
1
1
3
1
6
1
home
8
1
5

Артикул

Название

Примечание

Количество

1

47137763

HYDRAULIC VALVE

ASSY

1шт.

2

14456981

O-RING,0.424" ID x 0.103" Width

3шт.

3

20419150

BALL,3.17mm OD, Gr 100, CRS

1/8"

1шт.

4

14326004

PLUG,Hex Socket, M10 x 1.25 x 11.00mm, STL, DAC

M10 x 1.25

4шт.

5

10269504

PLUG,M14 x 1.5

D=14

2шт.

6

47137762

VALVE,12.5mm ID x 16mm OD x 47mm Thk

1шт.

7

14452981

O-RING,0.07" Thk x 0.364" ID, -12, Cl 7, 75 Duro

1шт.

8

5176224

BOLT,Hex, M25 x 1.25 x 107mm L

1шт.

9

11903011

PLUG,M10 x 1 x 11, Cl5.8

1шт.

10

10260960

SEALING WASHER,M10.2 x 14 x 1.5

1шт.

Выбрано товаров: 10
