Запчасти Case IH FARMALL 75C (1.33.1/04[03]) - 4WD ELECTROHYDRAULIC COUPLING - TRANSMISSION GEARINGS (VAR.330307-331307) (04) - FRONT AXLE & STEERING

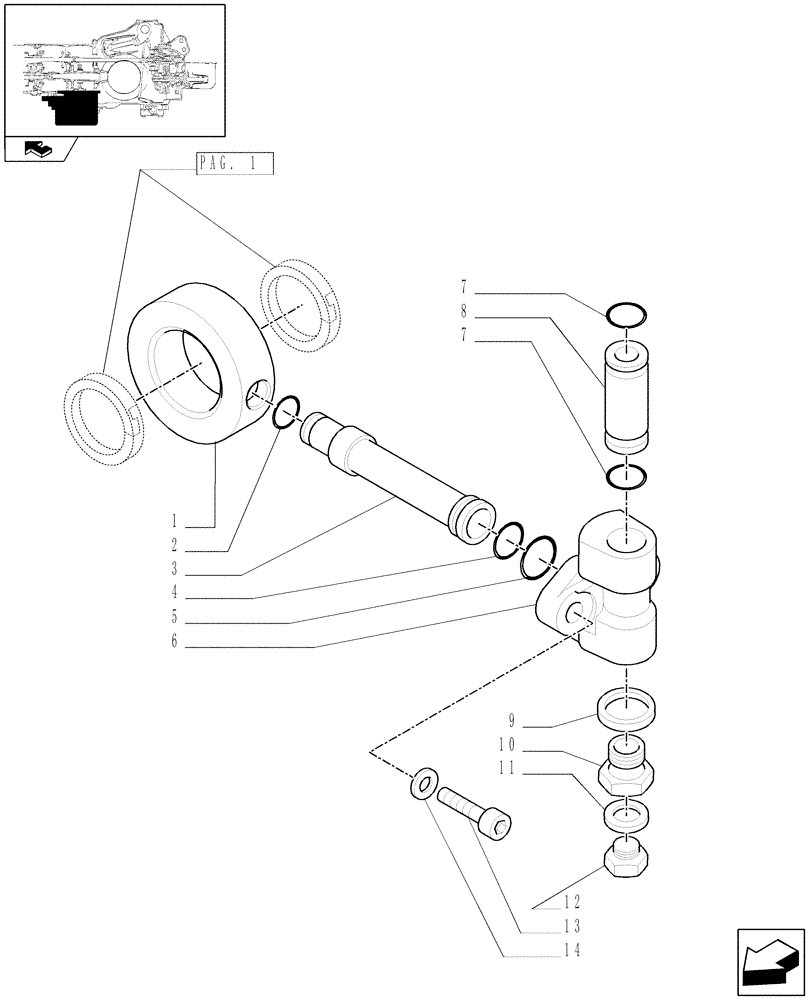

Схема запчастей Case IH FARMALL 75C - (1.33.1/04[03]) - 4WD ELECTROHYDRAULIC COUPLING - TRANSMISSION GEARINGS (VAR.330307-331307) (04) - FRONT AXLE & STEERING
4
2
8
14
11
7
10
pag. 1
3
13
12
7
1
9
home
5
6

Артикул

Название

Примечание

Количество

1

87685158

MANIFOLD

1шт.

2

14453081

O-RING,0.07" Thk x 0.426" ID, -13, Cl 7, 75 Duro

1шт.

3

5172910

RIGID TUBE,10.8mm ID x 15.6mm OD x 97mm L

1шт.

4

14453182

O-RING,0.07" Thk x 0.489" ID, -14, Cl 9, 70 Duro

1шт.

5

5135735

O-RING,1.78mm Thk x 17.17mm ID, 80 Duro

1шт.

6

5176116

HYD CONNECTOR

, Serial Range: -C6377

1шт.

6

84169038

HYD CONNECTOR,M10 x 1

, Start Serial: D6377

1шт.

7

14456981

O-RING,0.424" ID x 0.103" Width

2шт.

8

5173278

PAWL,8mm ID x 16mm OD x 35mm L

1шт.

9

10280060

SEAL,M14.2 x 20 x 1.5

, Serial Range: -C6377

1шт.

10

5178010

PLUG

, Serial Range: -C6377

1шт.

11

10284460

WASHER,M10.2 x 16 x 1.5, Copper

1шт.

12

11903011

PLUG,M10 x 1 x 11, Cl5.8

1шт.

13

14305424

HEX SOC SCREW,M6 x 25mm, Cl 8.8, Full Thd

2шт.

14

10569279

LOCK WASHER,6.1mm ID x 9.9mm OD x 1.6mm Thk, C72

D=6

2шт.

Выбрано товаров: 15
