Запчасти Case IH FARMALL 75C (1.33.1/04[02]) - 4WD ELECTROHYDRAULIC COUPLING - TRANSMISSION GEARINGS (VAR.330307-331307) (04) - FRONT AXLE & STEERING

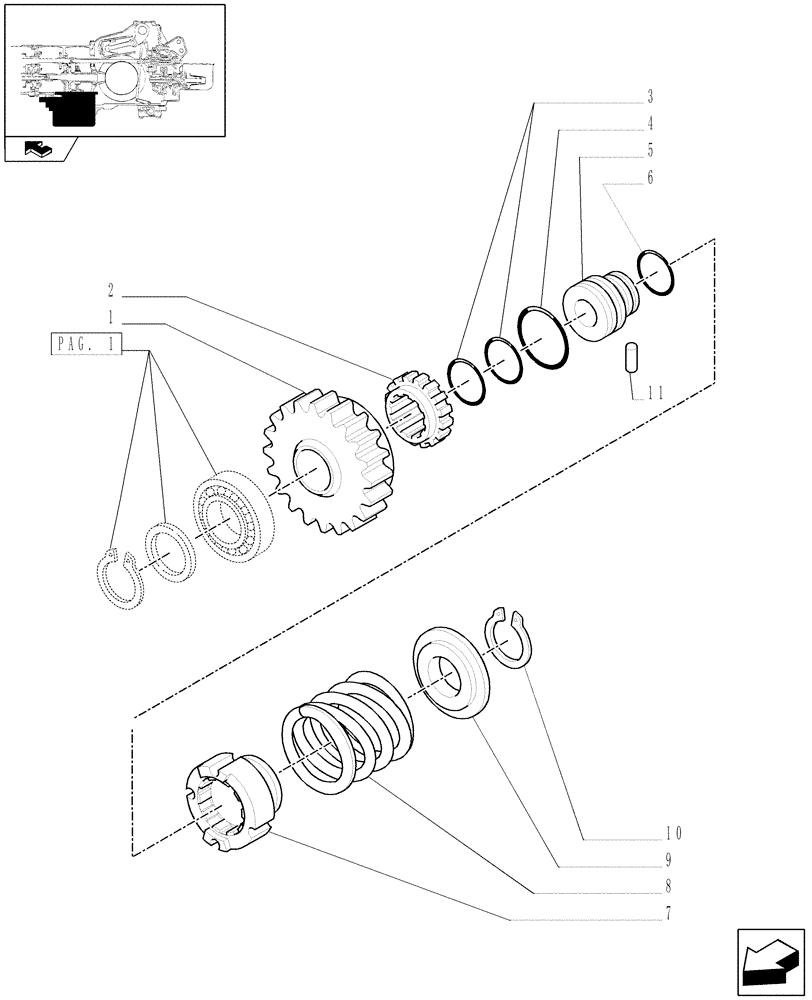

Схема запчастей Case IH FARMALL 75C - (1.33.1/04[02]) - 4WD ELECTROHYDRAULIC COUPLING - TRANSMISSION GEARINGS (VAR.330307-331307) (04) - FRONT AXLE & STEERING
11
7
5
9
1
pag. 1
6
3
10
8
home
2
4

Артикул

Название

Примечание

Количество

1

84284808

DRIVEN GEAR,37T

1шт.

2

5168320

SLEEVE,31mm ID x 57.5mm OD x 28mm L

1шт.

3

5135735

O-RING,1.78mm Thk x 17.17mm ID, 80 Duro

2шт.

4

5152665

SEAL,42.55mm ID x 50.12mm OD x 3.2mm Thk

D=52 x 3.2

1шт.

5

5183013

SLEEVE,22mm ID x 49.9mm OD x 53mm L

1шт.

6

5160580

GASKET,27.55mm ID x 35.12mm OD x 3.2mm Thk

D=35

1шт.

7

5182436

SLEEVE,35mm ID x 97mm OD x 59.5mm L, 21T

1шт.

8

5171681

SPRING,Compression, 79mm OD x 61mm L

1шт.

9

5183068

DISC,35.1mm ID x 78mm OD x 9mm Thk

1шт.

10

5109282

CIRCLIP,M35, Ext x 2.50 Thk

D=35

1шт.

11

13940770

ROLL PIN,5mm OD x 36mm L

5 x 36

1шт.

Выбрано товаров: 11
