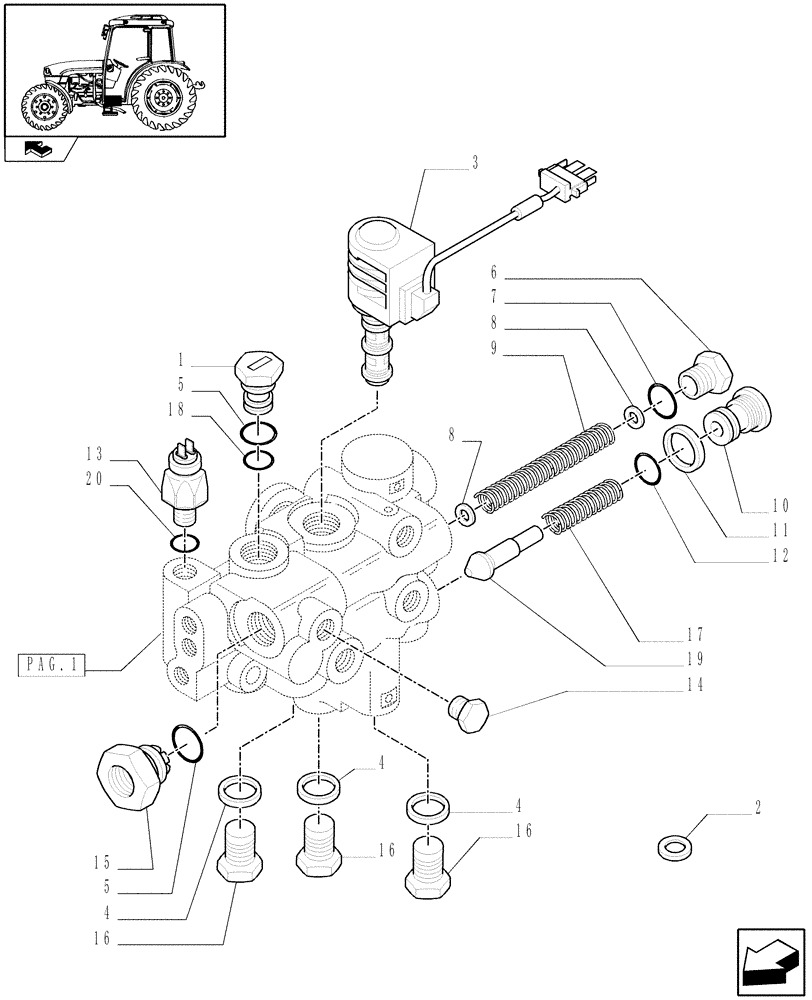

Запчасти Case IH FARMALL 75C (1.33.1/02[02]) - REAR MECH. DIFF. LOCK WITH EL.-HYDR. ENGAGEMENT AND MECH. TRANSM. - SOLENOID VALVE (VAR.331381-334381-335381) (04) - FRONT AXLE & STEERING

1

5154967

PLUG,Hex R0.2

1шт.

2

14452980

O-RING,9.25mm ID x 1.78" Width

1шт.

3

5192014

ELECTRO-VALVE,4W - 2p with diode

4WD Engagement, W/Diode

1шт.

4

10259960

SEAL,Rectangular, 18.30mm ID x 24.00mm OD x 1.50mm, Copper

3шт.

5

14438085

O-RING,19.3mm ID x 2.4mm

2шт.

6

5176204

PLUG,M18 x 1.5

2шт.

7

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

8

13550124

WASHER,5.15mm ID x 11mm OD x 1mm Thk

2шт.

9

5157119

SPRING,11.5mm x 127mm

1шт.

10

5168332

PLUG,M20 x 1.5

1шт.

11

98429280

SEAL,20.3mm ID x 26mm OD x 1.5mm Thk

1шт.

12

2852978

O-RING,0.103" Thk x 0.924" ID, -119, Cl 7, 75 Duro

1шт.

13

87395493

PRESSURE SWITCH

Trans. Oil, 10-20 bar

1шт.

Indicates Oil Missing in DT Control Pipe

1шт.

14

10300511

PLUG,M12 x 1.5 x 12, Cl5.8

1шт.

15

5173444

HYD CONNECTOR,M18/22 x 1.5 x 37mm L

1шт.

16

10300811

PLUG,M18 x 1.5 x 14, Cl5.8

3шт.

17

5114402

SPRING,Compression, 11mm OD x 35.5mm L

11 x 1.4 x 35.5

1шт.

18

14453280

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

(M14 ID x 1.78 Thk)

1шт.

19

5176227

PLUNGER,5.5mm ID x 15mm OD x 43mm L

1шт.

20

2854292

SEALING WASHER,12mm ID x 17mm OD x 1.5mm Thk

SEAL WASHER

2шт.
