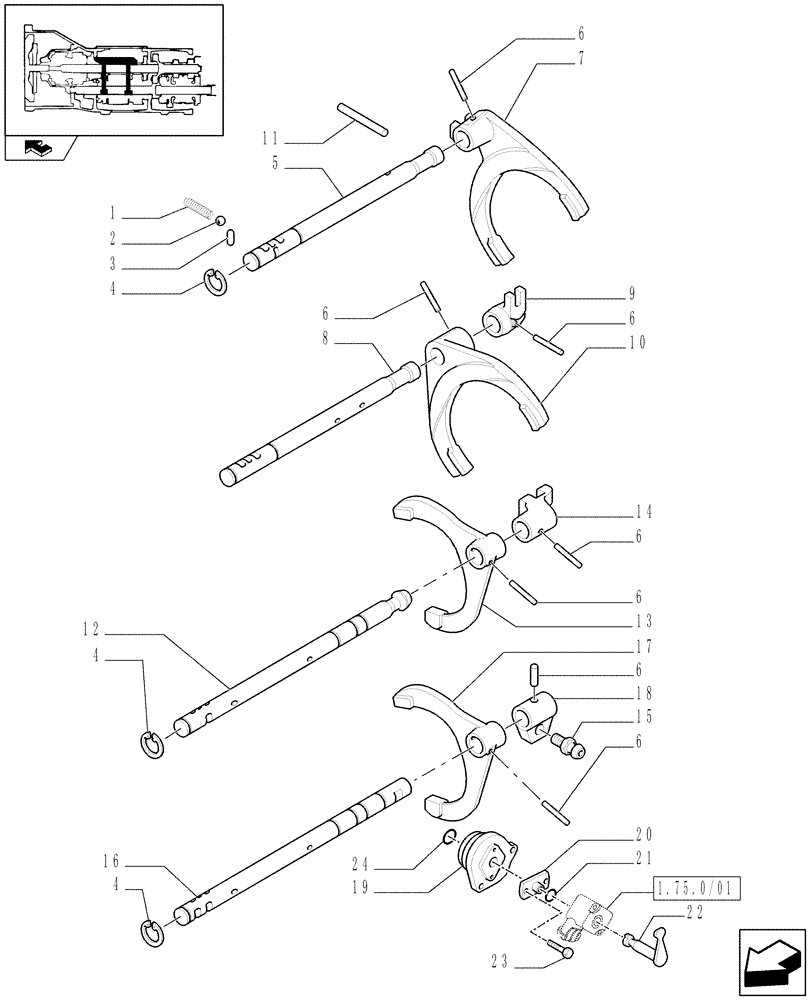

Запчасти Case IH FARMALL 75C (1.29.0) - GEARBOX INNER CONTROLS, RODS AND FORKS (03) - TRANSMISSION

1

5168268

SPRING,Compression, 8mm OD x 42mm L

3шт.

2

20063390

BALL,8.73mm OD

D=11/32

3шт.

3

5149882

PAWL,8.5mm D x 23mm L

1шт.

4

300625

SNAP RING,M16, Ext

3шт.

5

5177302

ROD,15.5mm OD x 299mm L

1st/2nd Gear

1шт.

6

13910370

ROLL PIN,6mm OD x 30mm L

8шт.

7

5171985

SHIFTER FORK,96mm OD x 8mm Thk

1st/2nd Gear

1шт.

8

5177303

ROD,15.5mm OD x 299mm L

3rd/4th Gear

1шт.

9

5172005

DOG

3rd/4th Gear

1шт.

10

5171991

SHIFTER FORK,96mm OD x 8mm Thk

3rd/4th Gear

1шт.

11

10337110

DOWEL,M6 x 45

6 x 45

1шт.

12

47130818

ROD,15.5mm OD x 391mm L

Inverter

1шт.

13

47125919

YOKE,16mm Hole Dia

Inverter

1шт.

14

5178133

DOG

Inverter

1шт.

14

5178071

DOG

Inverter

1шт.

28x16 for 16x16 Mechanical Trasmission, VAR.330111 - 332111

1шт.

15

5168372

PROP

1шт.

16

87523035

ROD,16mm OD x 358.5mm L

1шт.

17

47125919

YOKE,16mm Hole Dia

1шт.

18

5168371

DOG

Inverter

1шт.

19

87523038

PLATE

1шт.

20

5178541

PLATE

1шт.

21

14456981

O-RING,0.424" ID x 0.103" Width

1шт.

22

87523036

SHAFT,11.9mm OD x 42.5mm L

1шт.

23

13274224

SCREW,Pozidriv Pan Hd, M5 x 16mm, Cl 8.8, Full Thd

2шт.

24

14454780

O-RING,1.614" ID x 0.07" Width

1шт.
