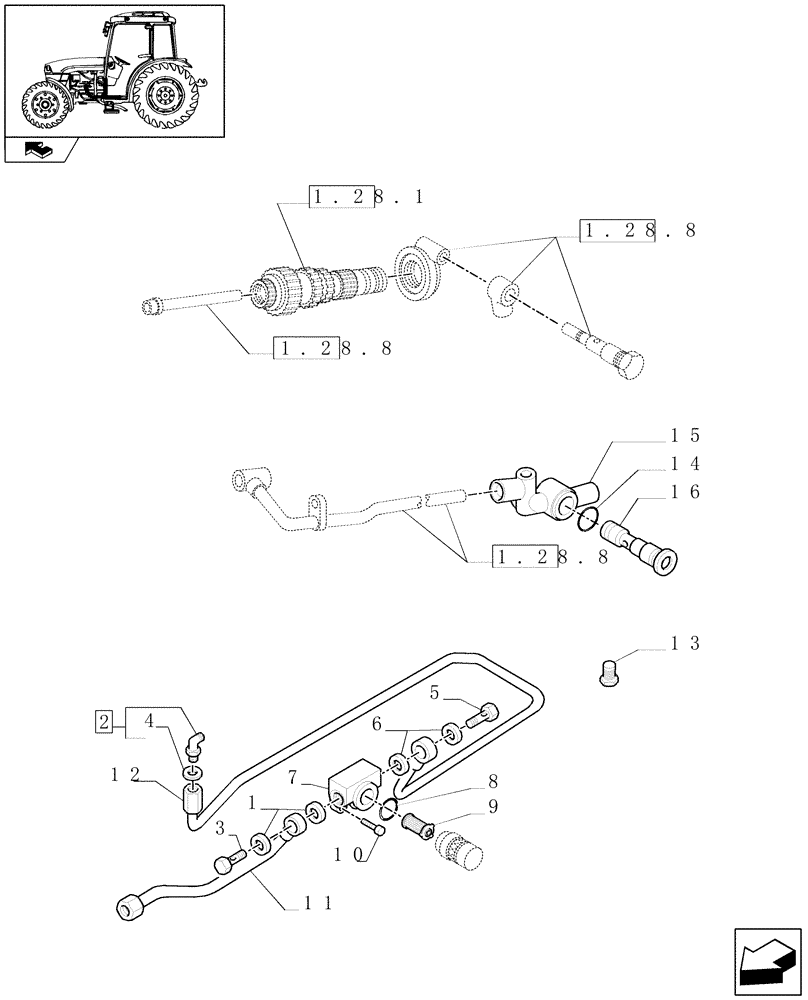

Запчасти Case IH FARMALL 75C (1.28.8/02) - REAR MECH. DIFF. LOCK WITH EL.- HYDR. ENGAGEMENT FOR POWER SHUTTLE - UNIONS AND PIPES (VAR.332381-335381-331382-333382-334382-335382) (03) - TRANSMISSION

1

10263460

SEAL,22.3mm ID x 28mm OD x 1.5mm Thk

1шт.

2

5158364

ELBOW,90°, 7/8"-14", M22 X 1.5 ORB

1шт.

3

5182095

BANJO BOLT,M22 x 1.5 x 47mm

1шт.

4

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

5

5173680

BANJO BOLT,Pipe, M18 x 1.5 x 56mm

1шт.

Valid for VAR.332381-335381-331382-333382-335382

1шт.

5

5188580

BANJO BOLT,Hex, M12/18 x 1.5

1шт.

Valid for VAR.334382

1шт.

6

10259960

SEAL,Rectangular, 18.30mm ID x 24.00mm OD x 1.50mm, Copper

1шт.

7

84256436

HYDRAULIC OIL FILTER

Incl. 8, 9

1шт.

8

5194880

O-RING KIT

1шт.

9

5194879

ELEMENT

1шт.

10

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

10

16044321

BOLT,M8 x 1.25 x 55mm, Cl 8.8

1шт.

11

5193553

RIGID TUBE

Front

1шт.

12

5193388

RIGID TUBE

Rear

1шт.

13

10305171

PLUG,M22 x 1.5 x 21

1шт.

14

14457180

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

1шт.

15

5181804

HYD CONNECTOR

1шт.

16

5177777

BANJO BOLT,M11 x 54mm

1шт.
