Запчасти Case IH FARMALL 75C (1.27.3/04[02]) - POWER SHUTTLE - PIPES AND MANIFOLDS (03) - TRANSMISSION

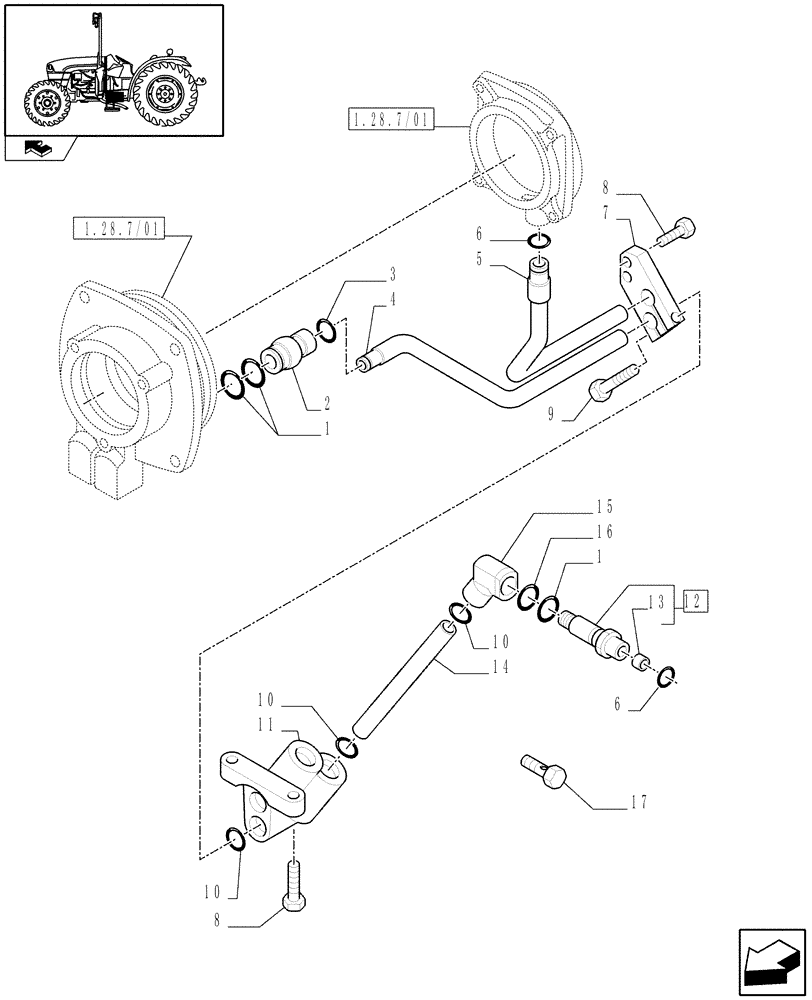

Схема запчастей Case IH FARMALL 75C - (1.27.3/04[02]) - POWER SHUTTLE - PIPES AND MANIFOLDS (03) - TRANSMISSION
17
12
8
14
13
1
10
1.28.7/01
7
4
8
2
6
16
home
10
5
9
6
15
1
10
3
1.28.7/01
11

Артикул

Название

Примечание

Количество

1

5174041

O-RING,2.62mm Thk x 13.1mm ID, 70 Duro

4шт.

2

5173962

HYD CONNECTOR,46mm L

1шт.

3

14456981

O-RING,0.424" ID x 0.103" Width

1шт.

4

5176044

RIGID TUBE

1шт.

5

5176047

RIGID TUBE

1шт.

6

14456881

O-RING,0.362" ID x 0.103" Width

3шт.

7

5176052

BRACKET

1шт.

8

16043524

SCREW,Hex, M8 x 1.25 x 22mm, Cl 8.8, Full Thd

2шт.

8

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

9

16043924

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8, Full Thd

1шт.

10

5103230

O-RING,2.62mm Thk x 11.91mm ID

2.62x11.91

6шт.

11

5177629

MANIFOLD

1шт.

12

5177578

HYD CONNECTOR

ASSY

2шт.

13

5176125

VALVE SEAT,3.5mm ID x 8mm OD

1шт.

14

5176059

RIGID TUBE

2шт.

15

5177627

HYD CONNECTOR,M14 x 1.5 x 24mm

2шт.

16

14437785

O-RING,11.3mm ID x 2.4mm

2шт.

17

5184345

BANJO BOLT,M18 x 1.5 x 34mm

3шт.

Выбрано товаров: 18
