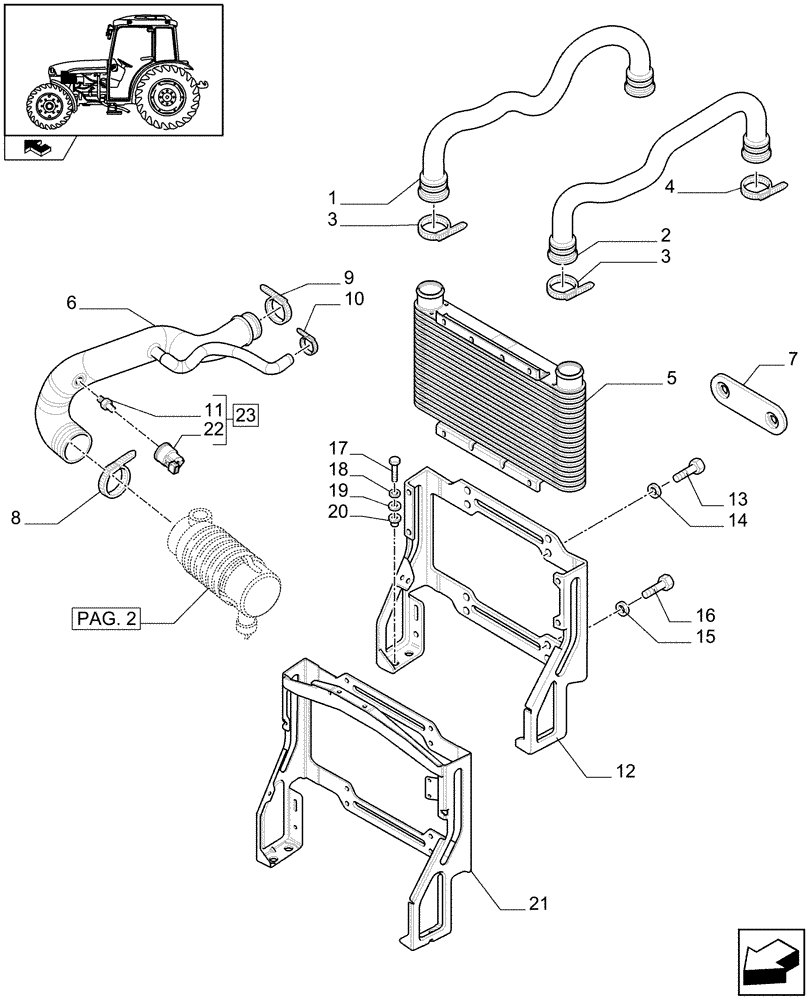

Запчасти Case IH FARMALL 75C (1.19.1[01]) - DRY AIR CLEANER (02) - ENGINE EQUIPMENT

1

87651698

DUCT

1шт.

2

87651699

DUCT

1шт.

3

87644002

HOSE CLIP,57-65mm

3шт.

4

87707423

HOSE CLIP,40-50mm

1шт.

4

87644233

HOSE CLIP

40-60 mm

1шт.

4

87644234

HOSE CLIP

50-70 mm

1шт.

5

84308764

HEAT EXCHANGER

1шт.

6

87651697

RIGID TUBE

1шт.

7

87559870

RUBBER SEAL

2шт.

8

13001090

HOSE CLAMP,70mm - 90mm, Worm Gear

1шт.

9

13000790

HOSE CLAMP,40mm - 60mm, Worm Gear

1шт.

10

13000590

HOSE CLAMP,25mm - 40mm, Worm Gear

1шт.

11

5138820

ADAPTER

1шт.

12

87551707

SUPPORT

1шт.

13

16043824

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd, DAC

4шт.

14

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

4шт.

15

11194074

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.9mm Thk

4шт.

16

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

4шт.

17

16043824

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd, DAC

4шт.

18

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

4шт.

19

47131590

SPACER,8.5mm ID x 26mm OD x 10mm Thk

4шт.

20

47131603

PAD,14mm ID x 26mm OD x 8mm Thk

4шт.

21

87743241

FRAME

75C

1шт.

Front HPL, VAR.330404-331404-332404-333404-330789

1шт.

22

NSS

NOT SOLD SEPARAT

Incl. in 23

1шт.

23

5138819

INDICATOR

ASSY, Incl. 11, 22, Serial Range: -C7236

1шт.

23

47373477

SENSOR

ASSY, Incl. 11, 22, Start Serial: D7236

1шт.
