Запчасти Case IH FARMALL 75A (25.108.01) - FRONT AXLE - AXLE SHAFT - 4WD (25) - FRONT AXLE SYSTEM

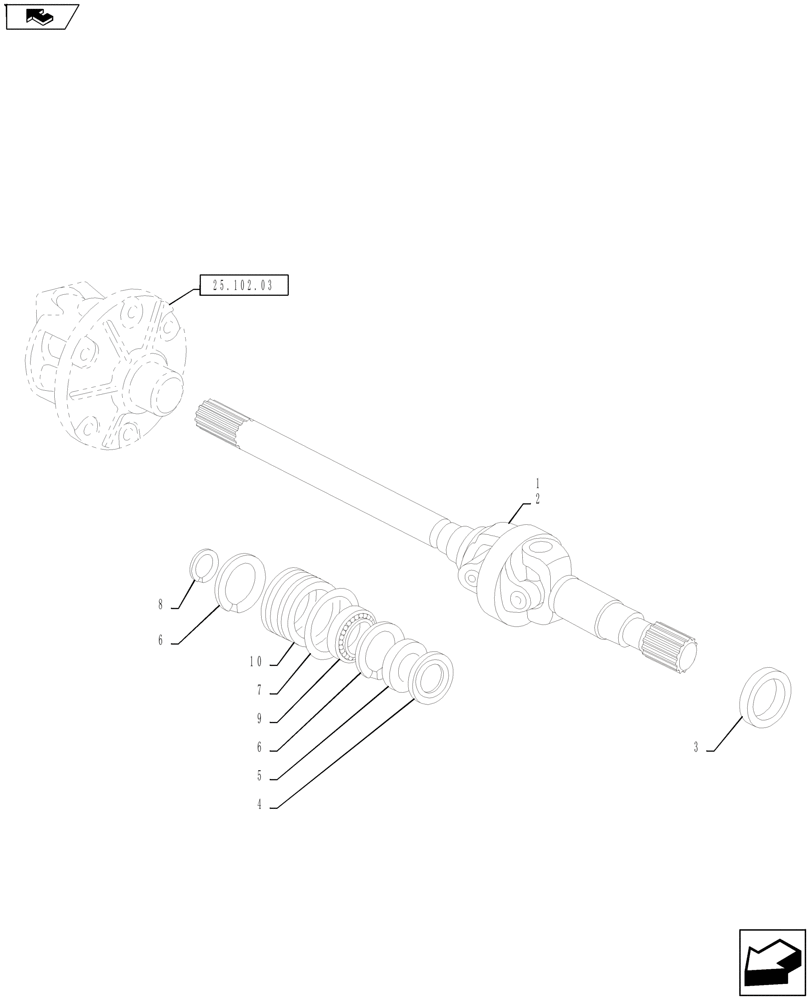

Схема запчастей Case IH FARMALL 75A - (25.108.01) - FRONT AXLE - AXLE SHAFT - 4WD (25) - FRONT AXLE SYSTEM
10
8
6
9
3
4
7
1
6
5
25.102.03
2
home

Артикул

Название

Примечание

Количество

1

84295303

HALF SHAFT

Articulated, LH

1шт.

2

84295300

HALF SHAFT

Articulated, RH

1шт.

3

5184124

SHAFT SEAL,47mm ID x 65mm OD x 16.5mm Thk

2шт.

4

4997436

RETAINER,35.2mm ID x 55mm OD

2шт.

5

5116701

SEAL,35mm ID x 55mm OD x 11mm Thk

2шт.

6

11060676

CIRCLIP,M55, Int

4шт.

7

14464980

O-RING,0.139" Thk x 2.609" ID, -231, Cl 5, 75 Duro

2шт.

8

11067876

SNAP RING,M30, Ext

2шт.

9

84263835

BALL BEARING,30mm ID x 50mm OD x 13mm W

2шт.

10

84297424

RETAINER

Bush Bearing And Axle Shaft

2шт.

Выбрано товаров: 10
