(25.102.03) - FRONT AXLE - DIFFERENTIAL - 4WD

Запчасти Case IH FARMALL 75A (25.102.03) - FRONT AXLE - DIFFERENTIAL - 4WD (25) - FRONT AXLE SYSTEM

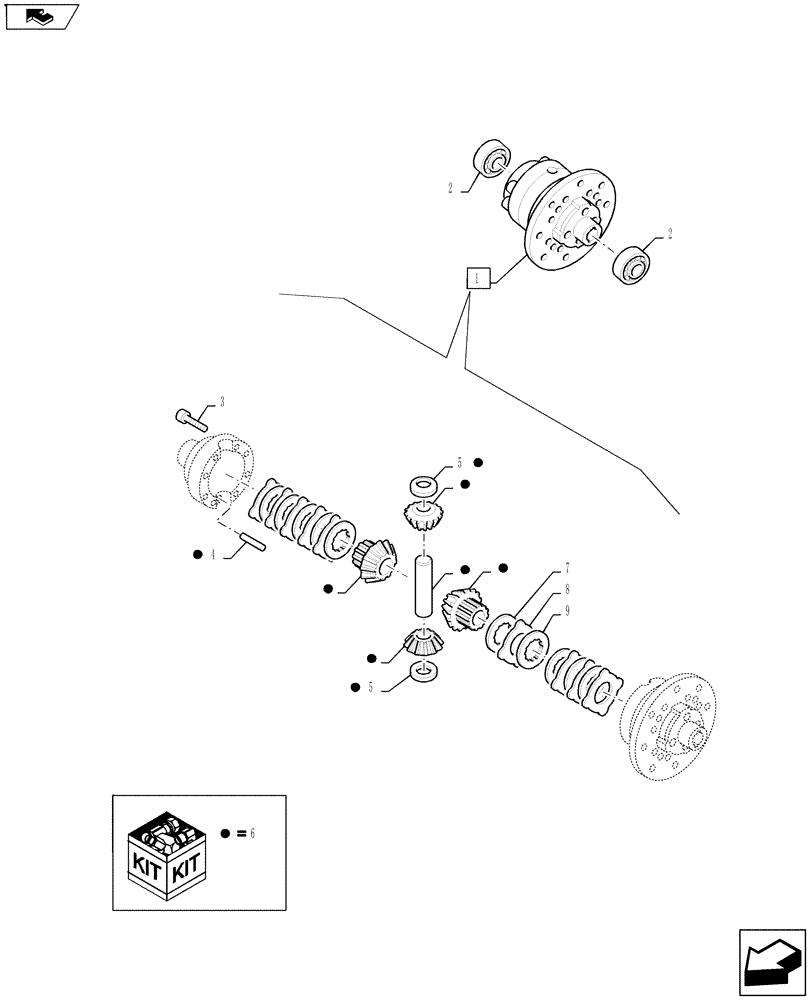

Схема запчастей Case IH FARMALL 75A - (25.102.03) - FRONT AXLE - DIFFERENTIAL - 4WD (25) - FRONT AXLE SYSTEM
5
6
6
4
home
6
5
6
7
6
2
3
6
6
6
8
2
1
6
9
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5162456

DIFFERENTIAL

Includes Ref. 3-9

1шт.

2

26799980

BEARING ASSY,Roller, 50mm ID x 90mm OD x 21.75mm W

2шт.

3

14308221

HEX SOC SCREW,M10 x 1.25 x 65mm, Cl 8.8

8шт.

4

9966303

ROLL PIN

1шт.

5

9966306

WASHER

2шт.

6

9970166

KIT

1шт.

7

9966308

PLATE

2шт.

8

9966309

DRIVEN PLATE

10шт.

9

9966310

PLATE

8шт.
