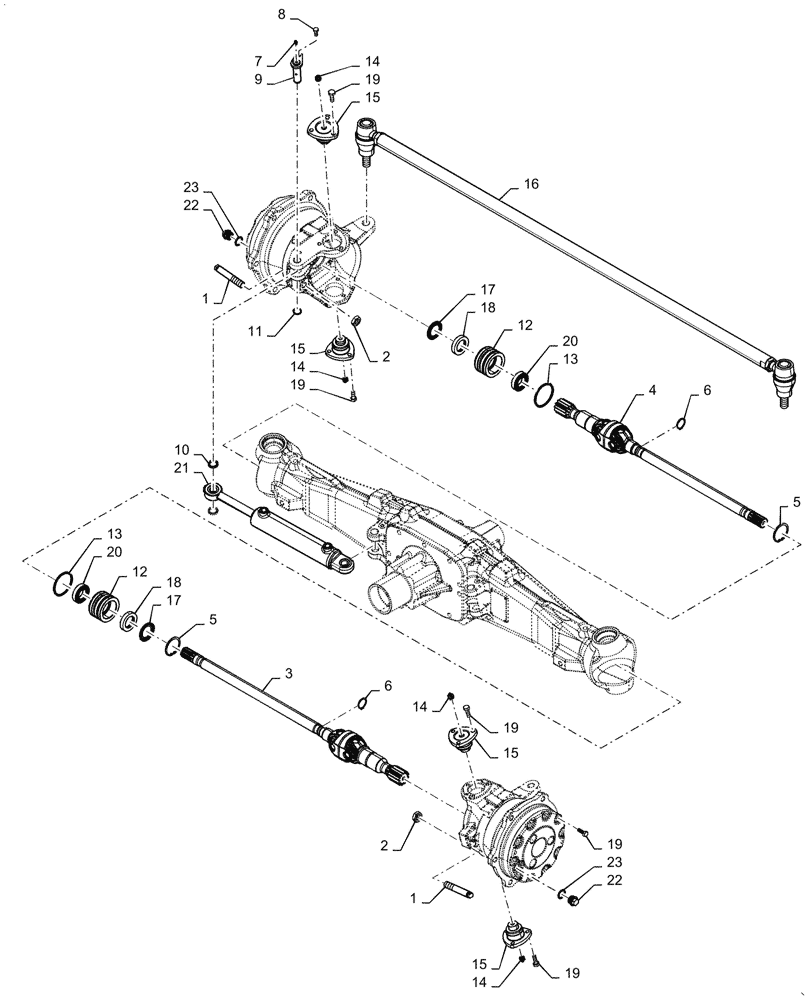

Запчасти Case IH FARMALL 75A (25.100.AD[02]) - FRONT AXLE STEERING SUPPORT (25) - FRONT AXLE SYSTEM

1

87751873

SCREW,M18 x 105mm, Cl 10.9

2шт.

2

10717624

THIN NUT,Thin, M18 x 2.5, Cl 05

2шт.

3

84295300

HALF SHAFT

RH, Axle

1шт.

4

84295303

HALF SHAFT

LH, Axle

1шт.

5

11060676

CIRCLIP,M55, Int

4шт.

6

11067876

SNAP RING,M30, Ext

2шт.

7

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

8

13406911

LUBE NIPPLE,Straight, 1/4"-28 x 0.54"

1шт.

9

5173252

PIN,19.98mm OD x 79.5mm L

Pivot Assy, For Steering Cylinder

1шт.

10

5100730

WASHER,20.5mm ID x 28mm OD x 5.25mm Thk

2шт.

11

11066876

SNAP RING,M20, Ext

1шт.

12

84357059

RETAINER

Axle Half Shaft

2шт.

13

14464980

O-RING,0.139" Thk x 2.609" ID, -231, Cl 5, 75 Duro

2шт.

14

5120532

LUBE NIPPLE,Straight, M14 x 1.5 x 6.50mm

Fitting

4шт.

15

5165271

BALL STUD,M14 x 1.5 x 46mm

4шт.

16

47551723

TIE-ROD

1шт.

17

4997436

RETAINER,35.2mm ID x 55mm OD

Disc

2шт.

18

5116701

SEAL,35mm ID x 55mm OD x 11mm Thk

Oil

2шт.

19

14233634

LOCK BOLT,Hex, M10 x 1.25 x 30mm, Cl 10.9, Full Thd

32шт.

20

84263835

BALL BEARING,30mm ID x 50mm OD x 13mm W

Fag

2шт.

21

84249612

STEERING CYLINDER

1шт.

22

84422229

PLUG,M22 x 1.5

2шт.

23

10263460

SEAL,22.3mm ID x 28mm OD x 1.5mm Thk

2шт.
