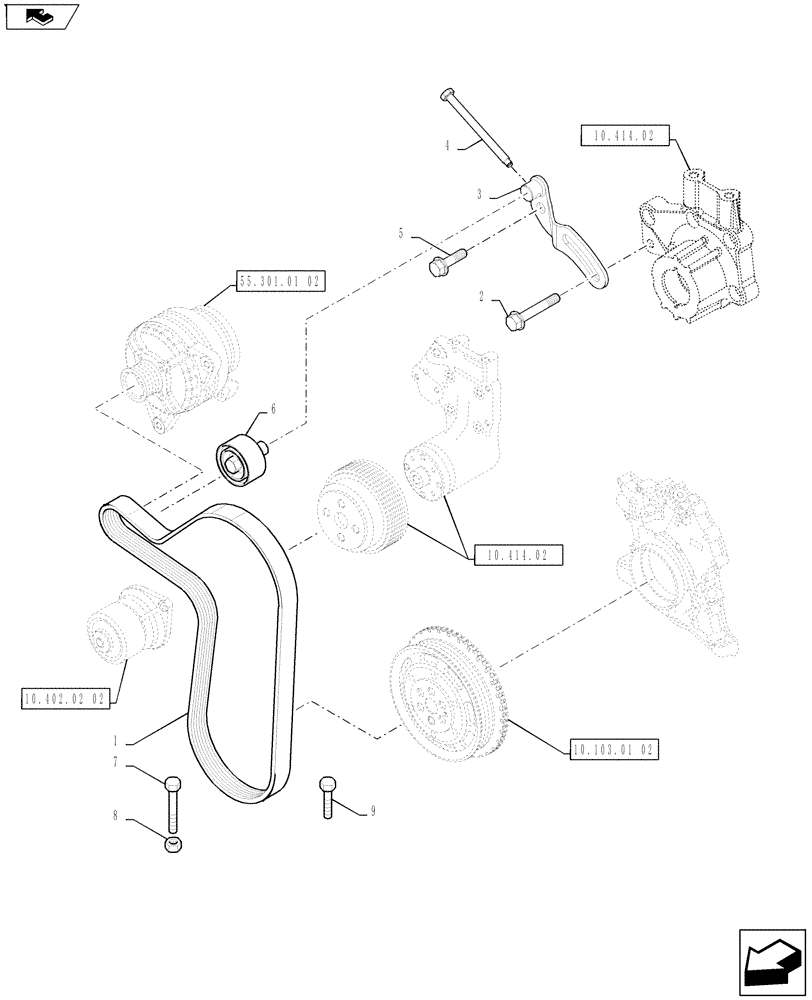

Запчасти Case IH FARMALL 75A (10.414.03) - BELT TENSIONER - FAN (10) - ENGINE

1

87705737

V-BELT,3.56 mm W x 1398.00 mm L, 8 Ribs

1шт.

2

16587624

SCREW,M10 x 50mm

1шт.

3

504248786

BELT TENSIONER

1шт.

4

504302206

BOLT

1шт.

5

2852403

FLANGE BOLT,Hex, M10 x 1.5 x 30mm

1шт.

6

2853006

PULLEY,65mm OD

1шт.

7

87302310

HEX SOC SCREW,M10 x 1.5 x 80mm

1шт.

8

11701711

NUT,Hex, M10, Cl 8, ZND

1шт.

9

11106124

BOLT,Hex, M10 x 22mm, Cl 8.8

1шт.
