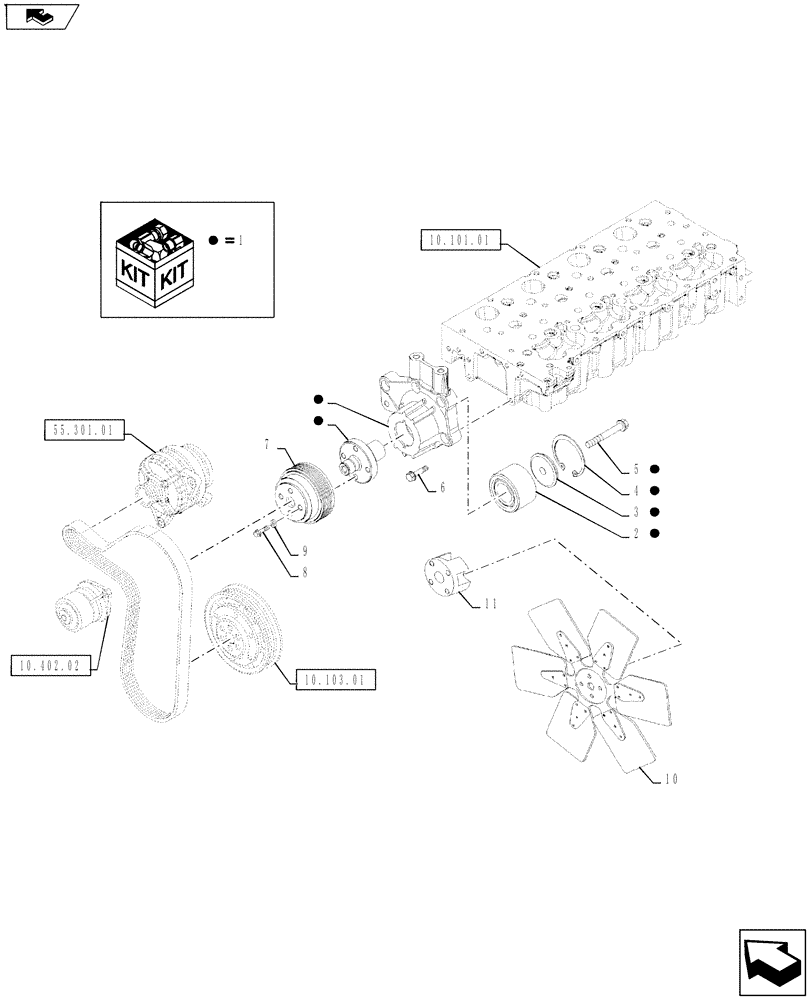

Запчасти Case IH FARMALL 75A (10.414.02) - FAN DRIVE (10) - ENGINE

1

504255372

SUPPORT

1шт.

2

4892732

BALL BEARING,34mm ID x 64mm OD x 37mm W

1шт.

3

4890732

RETAINER,11.50mm ID x 52mm OD x 7mm

1шт.

4

2852171

SNAP RING

1шт.

5

2854424

SCREW,Hex, Flg Hd, M10 x 1.5 x 70mm

1шт.

6

2852247

BOLT,Hex, M8 x 1.25 x 30mm

5шт.

7

504255369

PULLEY

Farmall 65A

1шт.

7

87639094

PULLEY,132mm OD

Farmall 75A

1шт.

8

18139424

SCREW,Hex, M10 x 20mm

Farmall 65A

4шт.

8

11106421

SCREW,Hex, M10 x 1.5 x 30mm, Cl 8.8

Farmall 75A

4шт.

9

11198374

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.6mm Thk

4шт.

10

87479461

FAN

1шт.

11

87479460

SPACER

1шт.
