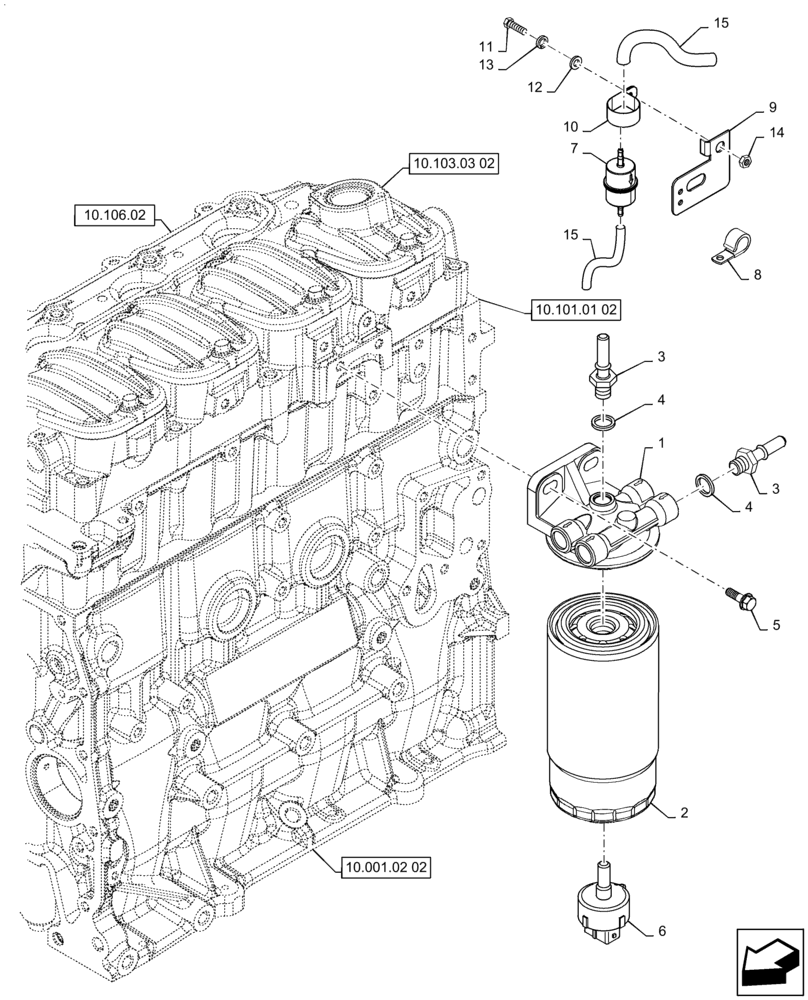

Запчасти Case IH FARMALL 75A (10.206.01[02]) - FUEL FILTER (10) - ENGINE

1

504287008

FILTER HEAD

1шт.

2

84477495

FUEL FILTER

1шт.

3

500344936

UNION,M14 x 1.5

M14 x 1.5

2шт.

4

4894721

SEALING WASHER,12.2mm ID x 17mm OD x 1.5mm Thk

2шт.

5

2852212

FLANGE BOLT,Hex, M8 x 1.25 x 25mm

2шт.

6

8097565

SENSOR

1шт.

7

87329736

FUEL FILTER

In-Line

1шт.

8

82823137

HOSE CLIP

1шт.

9

84259788

BRACKET

Fuel Filter

1шт.

10

84259789

GUARD

Fuel Filter

1шт.

11

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

12

14496505

WASHER,Flat, 8.40mm ID x 17.00mm OD x 1.60mm, CST, ZND

1шт.

13

10516674

LOCK WASHER,M8

1шт.

14

16102210

NUT

M8

1шт.

15

82833344

TUBE

Fuel Flexible

2шт.

16

84259316

GROMMET

Fuel Filter, Not Illustrated

1шт.

17

84260122

RUBBER PAD

Not Illustrated

1шт.
