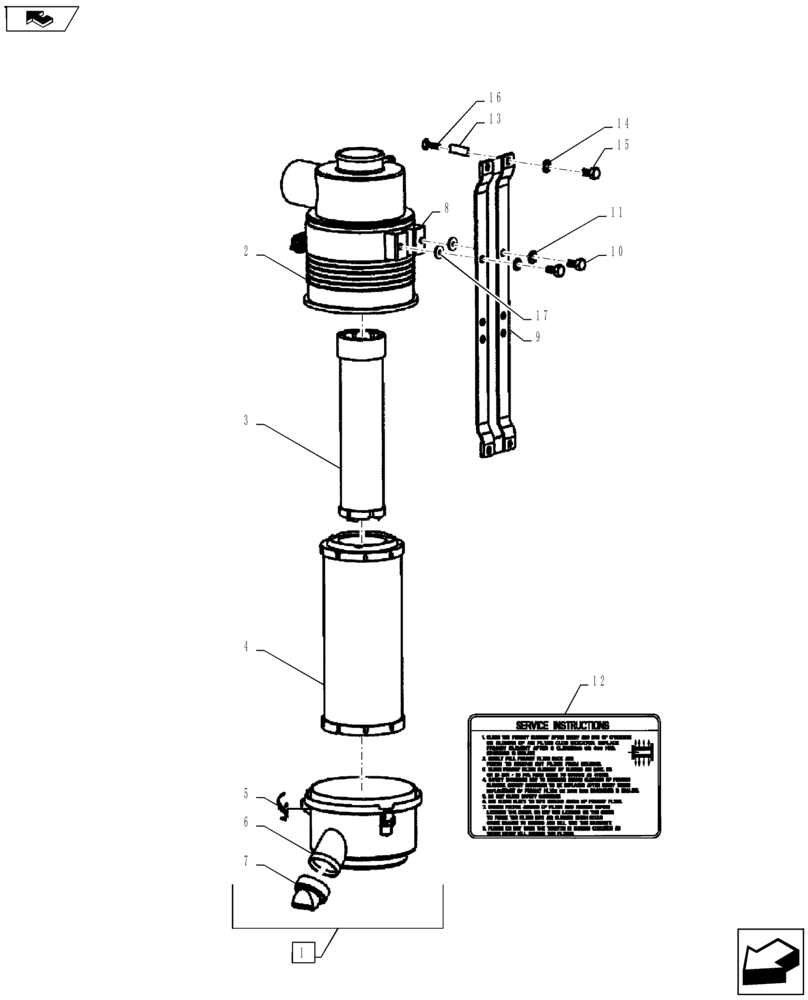

Запчасти Case IH FARMALL 75A (10.202.01) - AIR CLEANER (10) - ENGINE

1

87372861

AIR CLEANER

Includes Ref. 2-7

1шт.

2

84170874

BODY

Body

1шт.

3

86982523

FILTER,ELEMENT

Safety

1шт.

4

84170876

ELEMENT

Element, Primary

1шт.

5

NS

NOT SERVICED

Clip

3шт.

6

84170875

COVER

Bowl Dry

1шт.

7

84170878

COVER

Bowl Snorkel

1шт.

8

87368871

BRACKET

1шт.

9

87729590

BRACKET

1шт.

10

15970521

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

11

14496601

WASHER,10.5mm ID x 21mm OD x 2mm Thk

2шт.

12

87380787

DATA PLAQUE

Air Cleaner Service

1шт.

13

82824303

SPACER

1шт.

14

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

4шт.

15

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

4шт.

16

16044021

SCREW,Hex, M8 x 1.25 x 40mm, Cl 8.8

1шт.

17

10571879

LOCK WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

2шт.
