(10.105.02[02]) - PISTON

Запчасти Case IH FARMALL 75A (10.105.02[02]) - PISTON (10) - ENGINE

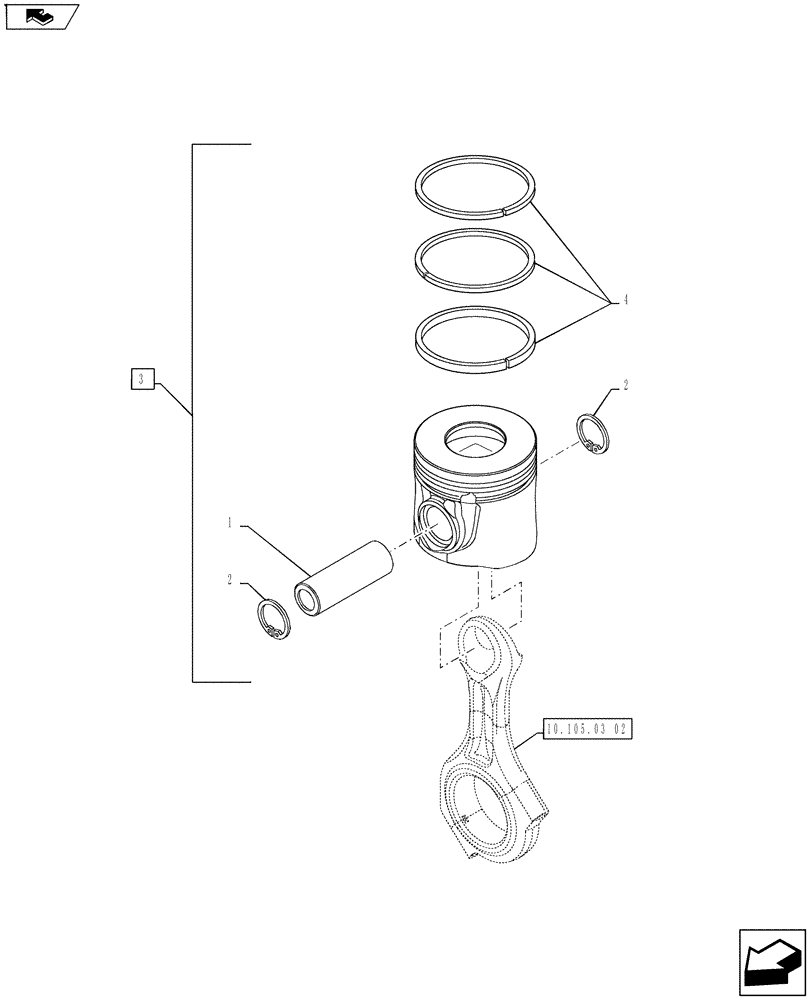

Схема запчастей Case IH FARMALL 75A - (10.105.02[02]) - PISTON (10) - ENGINE
2
1
10.105.03 02
2
3
4
home
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

504047720

PISTON PIN

4шт.

2

504051611

LOCK WASHER

8шт.

3

8097546

PISTON ASSY

+ 0,0, Includes Ref. 1-2, 4

4шт.

3

8097548

PISTON ASSY +0.4

Includes Ref. 1-2, 4

4шт.

4

8097545

PISTON RING SET

+ 0,0

4шт.

4

8097547

SET,PISTON RINGS+0.4

SET OF PISTON RINGS +0.4

4шт.
