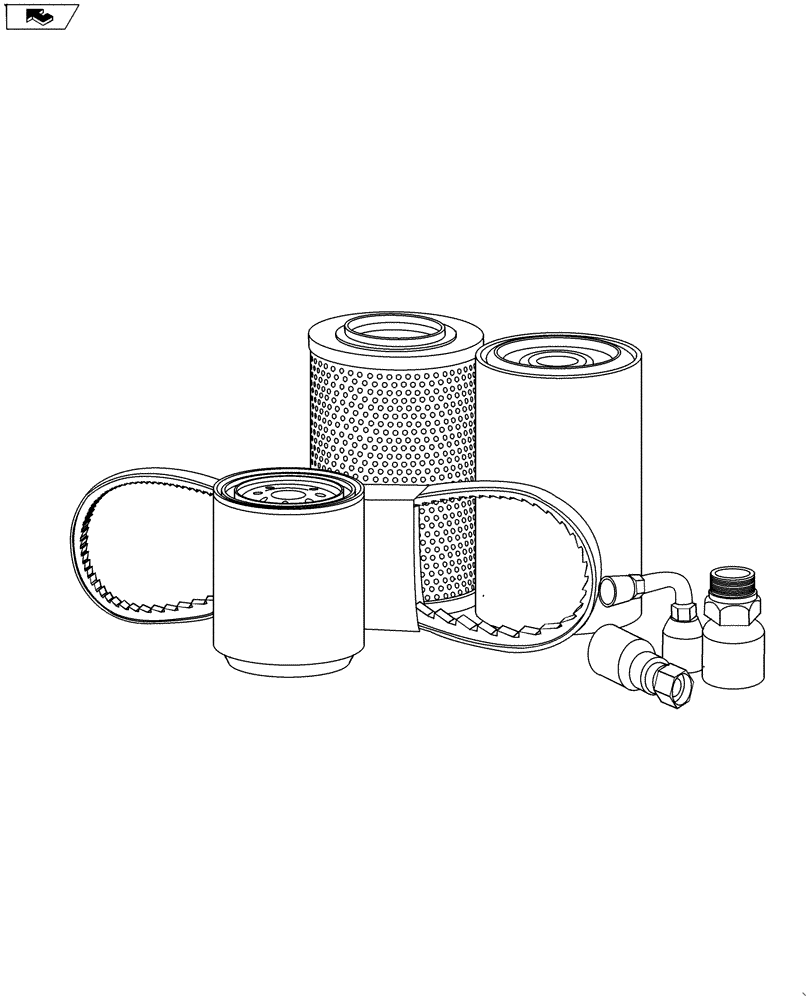

Запчасти Case IH FARMALL 75A (00.100.01) - INITIAL STOCKING LIST (ISL) FARMALL 75A (00) - GENERAL & PICTORIAL INDEX

LIST A

Parts Required For Preventative Maintenance

1шт.

1

87679598

ENGINE OIL FILTER,97.5mm OD x 92mm L, M27 x 2, 30 Micron

1шт.

2

1909143

FILTER

Power Steering Filter

1шт.

3

87391716

FILTER

Hydraulic

1шт.

4

84170876

ELEMENT

Primary

1шт.

5

86982523

FILTER,ELEMENT

Safety

1шт.

6

504372247

BREATHER

1шт.

7

87705737

V-BELT,3.56 mm W x 1398.00 mm L, 8 Ribs

Poly

1шт.

8

84477495

FUEL FILTER

1шт.

9

87329736

FUEL FILTER

In Line

1шт.

LIST B

Parts Required For Preventative Maintenance And Basic Repair

1шт.

10

B4960W

WET BATTERY

U.S., BCI Group 9/CCA 850

1шт.

11

CC4960W

WET BATTERY

Canada, BCI Group 49/CCA 850

1шт.

12

82834117

PLUG

Radiator Cap

1шт.

13

4232606

PLUG

Cap, Oil

1шт.

14

87363108

CAP

Fuel

1шт.

15

82824624

LOCKABLE FUEL CAP

Key NSS, Must Order Cap

1шт.

16

504231722

DIPSTICK

1шт.

17

84280147

SENDER UNIT

Fuel

1шт.

18

87750882

PRESSURE SWITCH

Oil Sensor

1шт.

19

84156838

SENSOR

Water Temperature

1шт.
