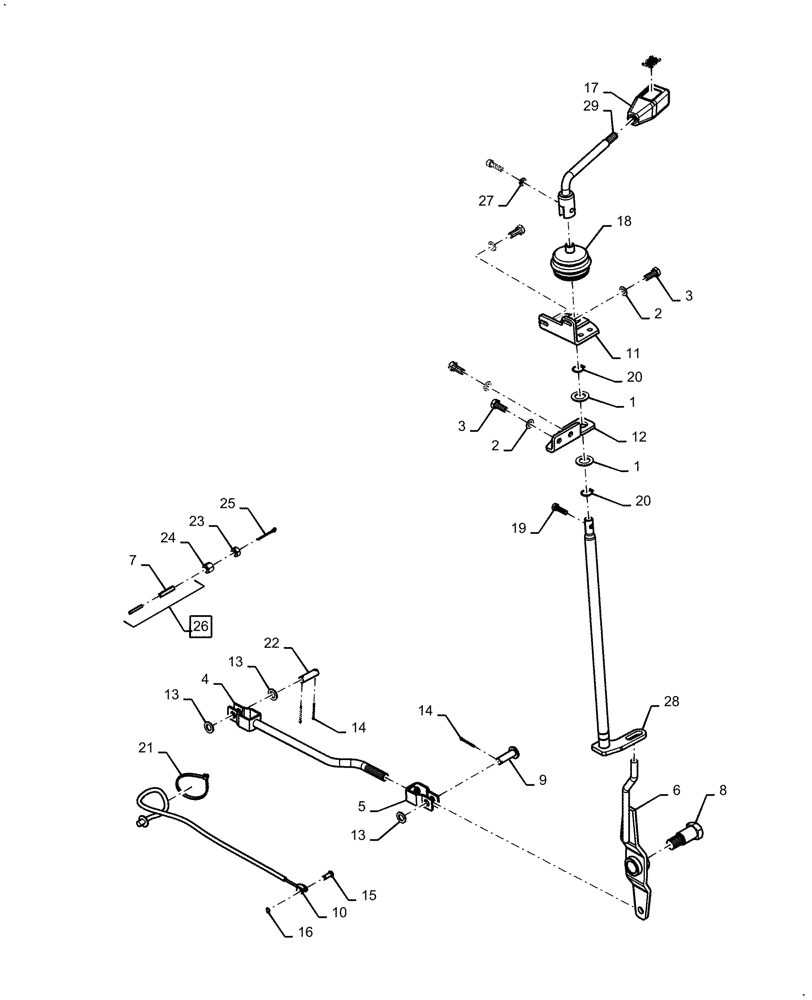

Запчасти Case IH FARMALL 70A (21.130.BC[01]) - TRANSMISSION CONTROLS LEVER, SHUTTLER ASSEMBLY (21) - TRANSMISSION

1

13507701

WASHER,16.4mm ID x 27mm OD x 2mm Thk

2шт.

2

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

4шт.

3

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

4

84130631

LIFT LINK

Assy, Shuttler

1шт.

5

87498946

LINK

Fork Assy, Shuttler Front

1шт.

6

47434441

LEVER

Assembly, Shuttller

1шт.

7

14168370

LOCK PIN,M6 x 30, Slotted

Roll

1шт.

8

87498949

PIN

Shuttler Lever Lower Mounting

1шт.

9

47898718

PIN

Fork

1шт.

10

87645914

CABLE

Shuttler Interlock

1шт.

11

47875862

BRACKET

Assy, Guide Shuttler Upper

1шт.

12

47768665

BRACKET

Shuttle Lower

1шт.

13

12638601

WASHER,M10 x 18 x 2

3шт.

14

10734401

COTTER PIN,M2 x 22

3шт.

15

4998010

PIN,10mm OD x 18.5mm L

1шт.

16

11065476

SNAP RING,M6, Ext

Circlip

1шт.

17

84131154

KNOB

Assembly Shuttler

1шт.

18

87617198

BOOT

Rubber, Shuttler

1шт.

19

9832203

HEX SOC SCREW,M6 x 25mm, Cl 8.8, Full Thd

1шт.

20

11066476

SNAP RING,M16, Ext

2шт.

21

14560187

COLLAR,199mm L

Cable Tie, Nylon Black

1шт.

22

596420

PIN,10mm OD x 34mm L

Fork

1шт.

23

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

1шт.

24

16104111

NUT,Prevailing Torque, M8, 1.25 Pitch, 10.6mm High, Cl 08, ZND

1шт.

25

82823520

PIN

Cotter

1шт.

26

84181970

ROLL PIN

Assy, Incl 7

1шт.

27

10571579

LOCK WASHER,M6

1шт.

28

47956890

LINK

Rod, Shuttler

1шт.

29

47956888

LEVER

Control, Shuttler

1шт.
