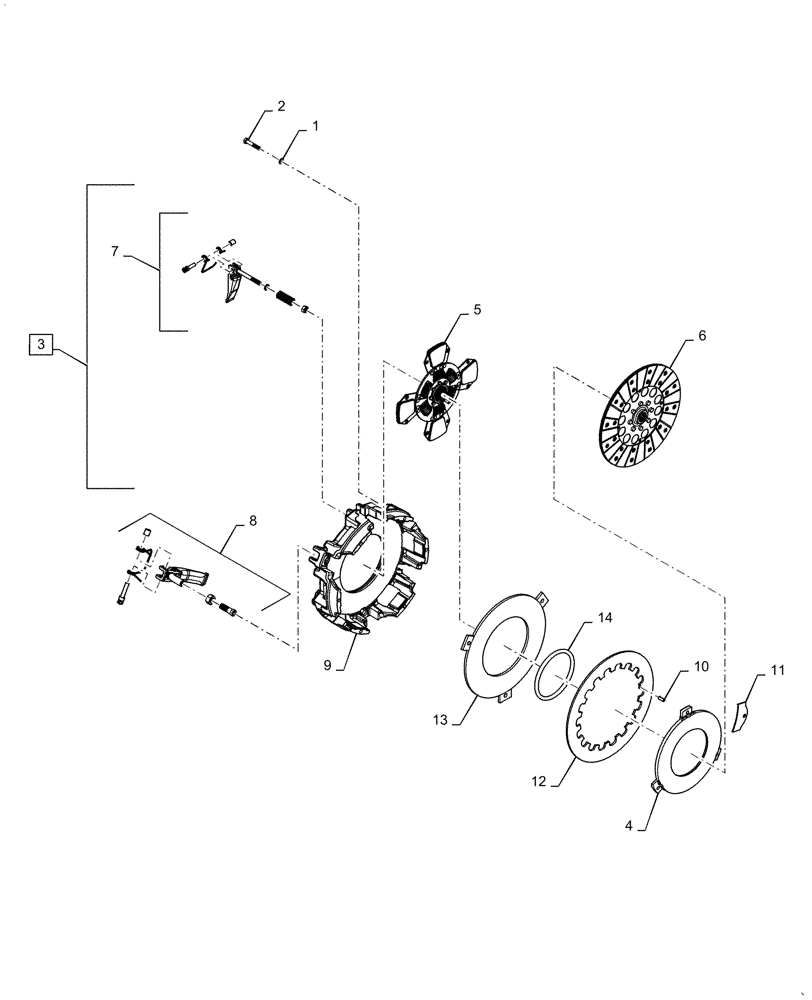

Запчасти Case IH FARMALL 70A (14.100.AN[01]) - MAIN CLUTCH, 70 HP (14) - MAIN GEARBOX & DRIVE

1

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

6шт.

2

16044121

BOLT,Hex, M8 x 45mm, Cl 8.8

6шт.

3

47756380

CLUTCH

Pack ID33 70HP, Incl 5 - 7

1шт.

4

84537779

CLUTCH, PRESSURE PLA

PTO Sub Assy

1шт.

5

47756383

CLUTCH PLATE

Clutch Plate Main

1шт.

6

87371464

CLUTCH PLATE

PTO Drive 11

1шт.

7

47807177

CLUTCH

REP Set PTO

3шт.

8

47807178

CLUTCH OVERHAUL KIT

REP Set Main

3шт.

9

84527858

CLUTCH

Cover Housing

1шт.

10

84527864

CLUTCH

Spring Pin

1шт.

11

84527868

CLUTCH

Retainer Plate

6шт.

12

84527870

CLUTCH

Diaphragm Spring

1шт.

13

84527872

CLUTCH

Main Pressure Plate

1шт.

14

84527874

CLUTCH

Fulcrum Ring

1шт.
