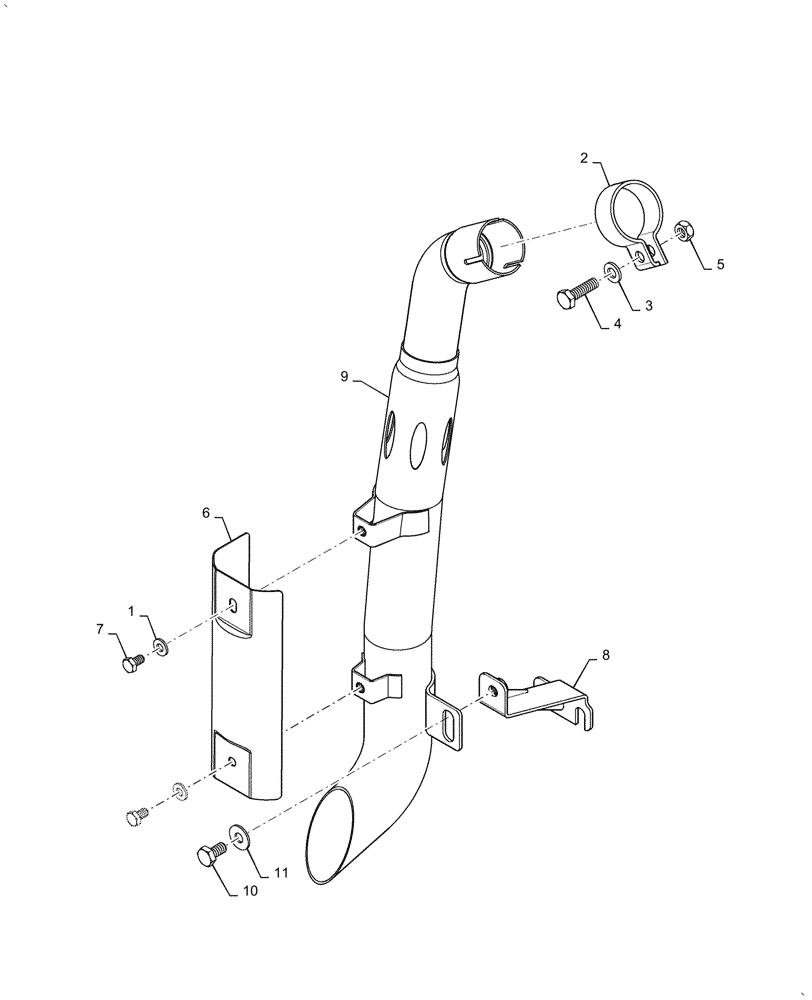

Запчасти Case IH FARMALL 70A (10.254.AI[01]) - EXHAUST MUFFLER (10) - ENGINE

1

10519601

WASHER,8.15mm ID x 17mm OD x 2mm Thk

2шт.

2

48049638

CLAMP

Assy, Muffler

1шт.

3

10519601

WASHER,8.15mm ID x 17mm OD x 2mm Thk

2шт.

4

16043931

SCREW,Hex, M8 x 1.25 x 35mm, Cl 10.9, Full Thd

1шт.

5

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

1шт.

6

47657165

GUARD

Exhaust Pipe Downswept

1шт.

7

16043121

SCREW,Hex, M8 x 1.25 x 14mm, Cl 8.8, Full Thd

2шт.

8

47871990

BRACKET

Assy, Support Exhaust Downswept

1шт.

9

48049635

PIPE

Assy, Exhaust Downswept

1шт.

10

15970421

SCREW,Hex, M10 x 1.25 x 18mm, Cl 8.8, Full Thd

1шт.

11

12646801

WASHER,10.2mm ID x 25mm OD x 2mm Thk

1шт.
