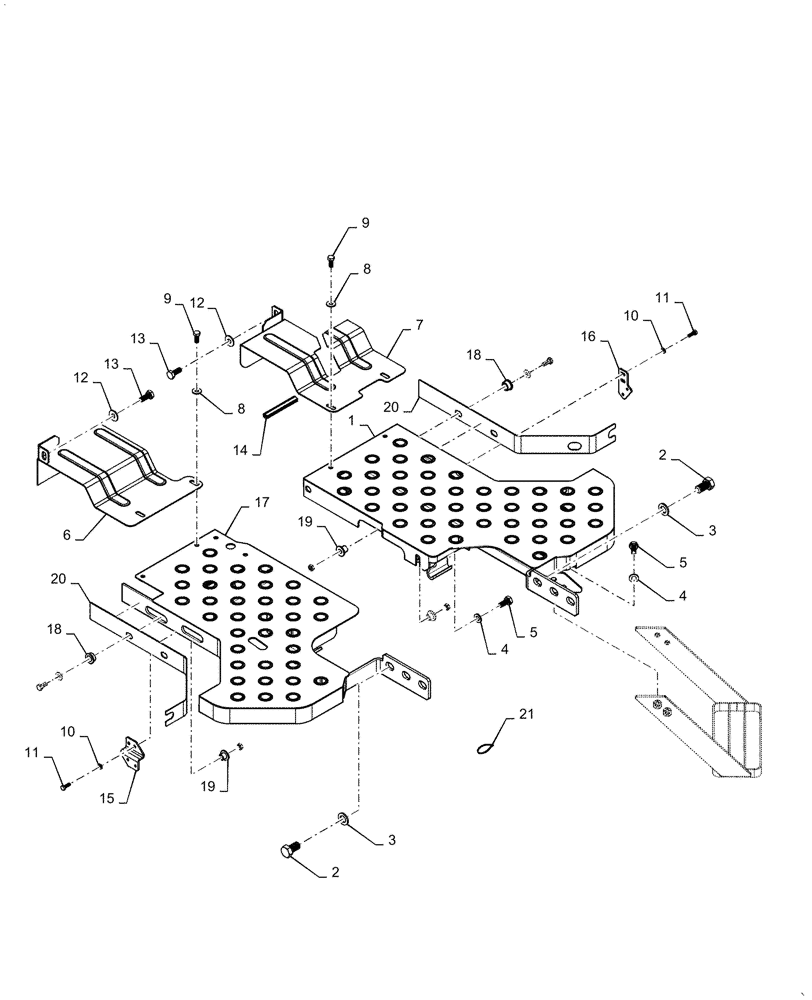

Запчасти Case IH FARMALL 70A (90.118.CB[01]) - FOOT BOARD (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47876877

FOOT BOARD

LH

1шт.

2

87536544

SCREW,Hex, M16 x 1.5 x 30mm, Gr 10.9

6шт.

3

10520221

WASHER,16.4mm ID x 28mm OD x 3mm Thk

6шт.

4

11190579

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

8шт.

5

15970621

BOLT,Hex, M10 x 1.25 x 22mm, Cl 8.8, Full Thd

8шт.

6

84129770

FOOT BOARD

Extension Assy, RH

1шт.

7

84129769

FOOT BOARD

Extension Assy, LH

1шт.

8

12646701

WASHER,8.15mm ID x 20mm OD x 2mm Thk

4шт.

9

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

10

10571579

LOCK WASHER,M6

6шт.

11

10902321

SCREW,Hex, M6 x 18mm, Cl 8.8, Full Thd

6шт.

12

12646801

WASHER,10.2mm ID x 25mm OD x 2mm Thk

2шт.

13

15970721

SCREW,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

14

85700513

MOLDING,3 1/2" L

Channel, Fuel Tank, Abutments

1шт.

14

47720212

CHANNEL

Fuel Tank, Abutments

1шт.

14

47720218

CHANNEL

Fuel Tank, Abutments

1шт.

15

84283975

BRACKET

Parking Switch Mounting

1шт.

16

84283977

BRACKET, SUPPORTING

Clutch Pedal Switch Mounting

1шт.

17

47876878

FOOT BOARD

Assy, RH

1шт.

18

47859475

ISOLATOR

Foot Board

6шт.

19

47859460

SLEEVE

Foot Board

6шт.

20

47891175

STRIP

Rubber, Footboard

2шт.

21

14560187

COLLAR,199mm L

Cable Tie

1шт.
