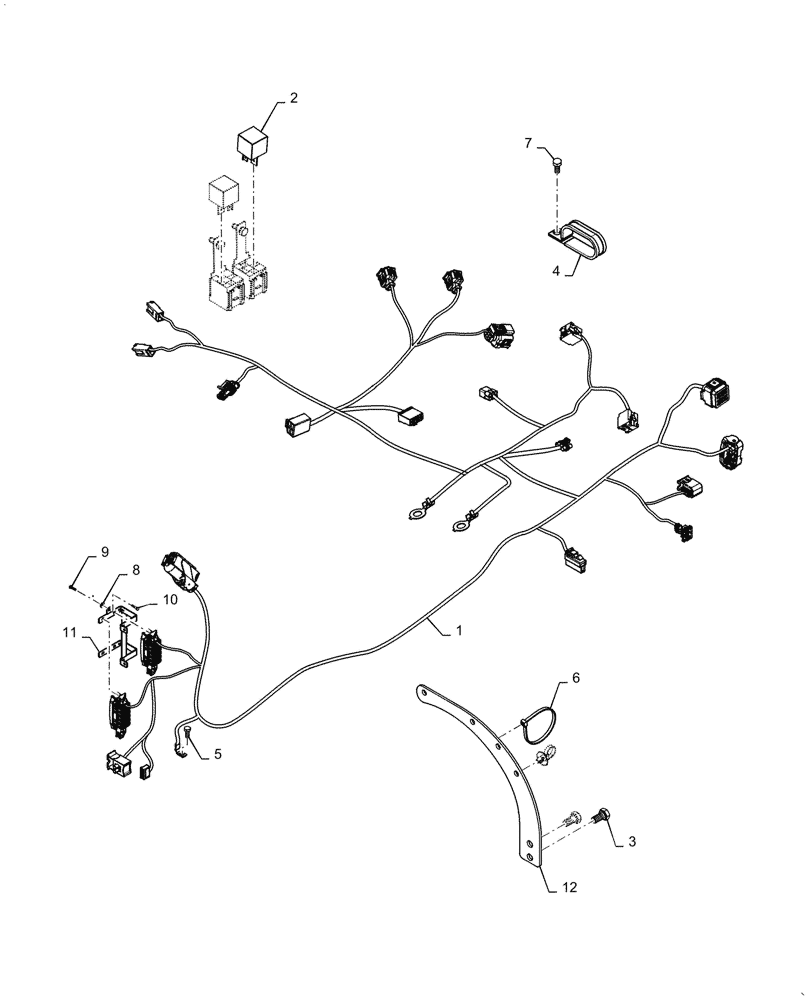

Запчасти Case IH FARMALL 70A (55.015.AB[01]) - ENGINE WIRE HARNESS (55) - ELECTRICAL SYSTEMS

1

47970291

WIRE HARNESS

Engine

1шт.

2

84337380

RELAY

Tyco - With Resistor

2шт.

3

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

2шт.

4

47897409

CLAMP

Retainer

2шт.

5

15970721

SCREW,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

6

14560187

COLLAR,199mm L

Cable Tie

5шт.

7

10902221

BOLT,Hex, M6 x 16mm, CL 8.8

4шт.

8

14496505

WASHER,Flat, 8.40mm ID x 17.00mm OD x 1.60mm, CST, ZND

6шт.

9

10902624

SCREW,Hex, M6 x 25mm, Cl 8.8, Full Thd

Plugin

4шт.

10

14305724

HEX SOC SCREW,M6 x 14mm, Cl 8.8, Full Thd

2шт.

11

47800140

BRACKET

Fuse Box Assy

1шт.

12

47801617

BRACKET

Support ATS Harness

1шт.
