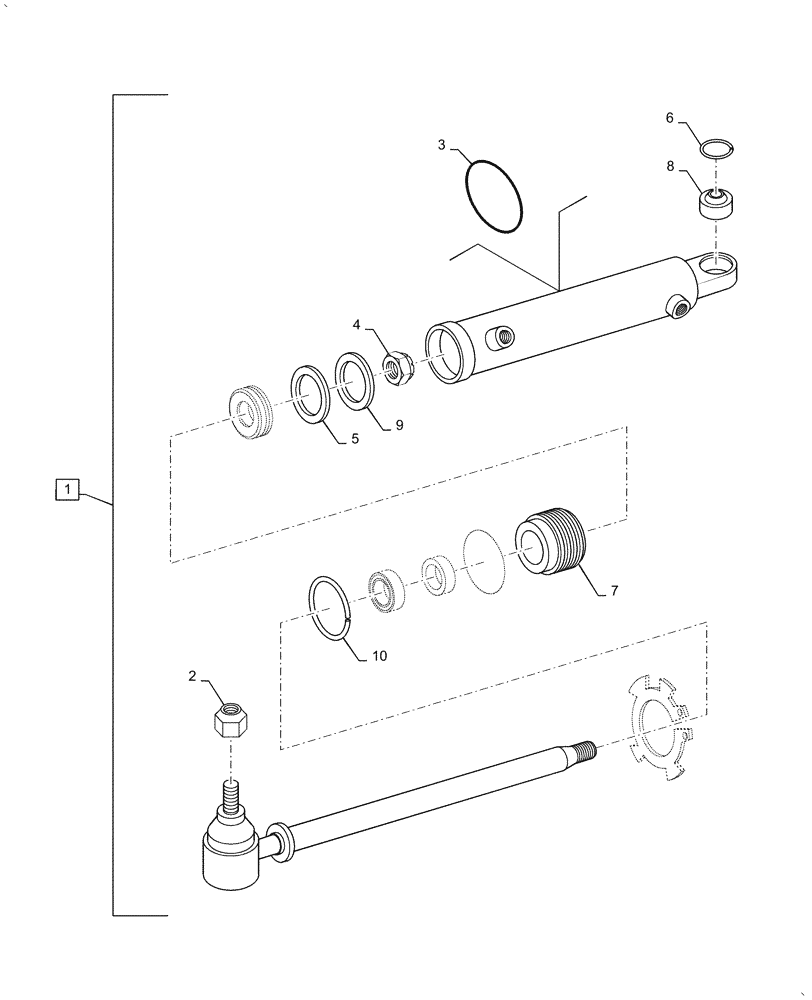

Запчасти Case IH FARMALL 70A (41.216.AN[01]) - STEERING CYLINDER, 2WD (41) - STEERING

1

84249611

STEERING CYLINDER,22mm Rod, 215mm Stroke

Incl 2 - 10

1шт.

2

12575921

NUT,M16 x 1.5, Cl 05

1шт.

3

47373364

SEAL KIT

Steering Cylinder

1шт.

4

47373377

LOCK NUT

Steering Cylinder

1шт.

5

47388441

SEAL KIT

Head

1шт.

6

5190903

LOCKING RING

Stop

1шт.

7

5190908

PISTON

Piston

1шт.

8

5190901

BUSHING

Ball Joint

2шт.

9

5190910

SEAL

1шт.

10

5190912

LOCKING RING

1шт.
