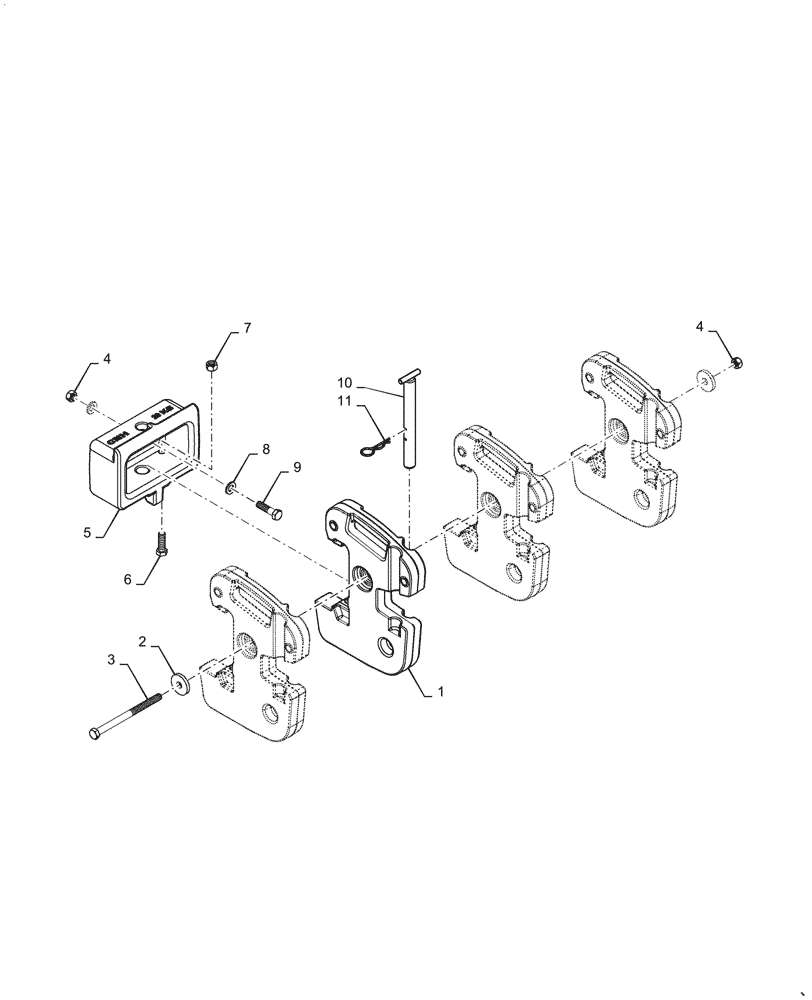

Запчасти Case IH FARMALL 70A (39.140.AF[01]) - FRONT BALLAST, 4X30KG (39) - FRAMES AND BALLASTING

1

82825466

BALLAST

Weight

4шт.

2

44018768

WASHER,17mm ID x 55mm OD x 8mm Thk

2шт.

3

15983221

SCREW,Hex, M16 x 220mm, Cl 8.8

1шт.

4

12164111

NUT,M16, Cl 8

4шт.

5

84316539

SUPPORT

Front Ballast

1шт.

6

82834828

SCREW,Hex, M16 x 2 x 50mm

Front Ballast Support

2шт.

7

82834829

NUT

2шт.

8

11194279

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 3.4mm Thk

6шт.

9

15981121

BOLT,Hex, M16 x 1.5 x 60mm, Cl 8.8

3шт.

10

5118742

PIN

Tow, Assy

1шт.

11

44007661

COTTER PIN,33.2mm OD x 78mm L

Hair

1шт.
