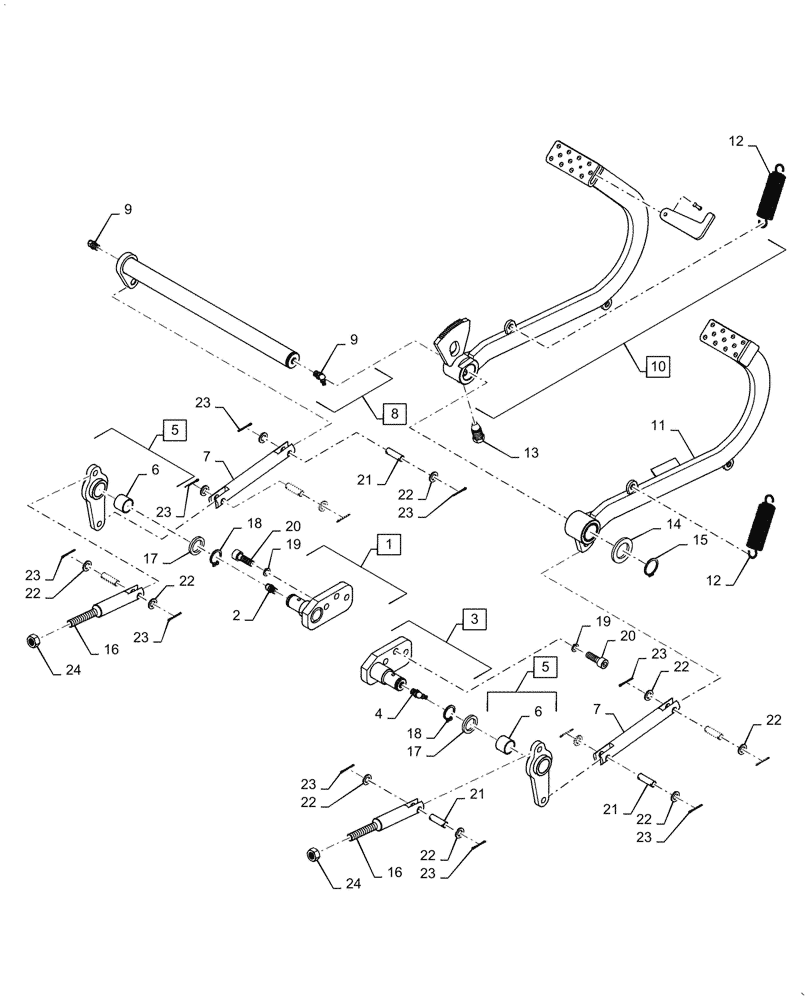

Запчасти Case IH FARMALL 70A (33.202.BN[01]) - BRAKE PEDAL AND LINKAGE (33) - BRAKES & CONTROLS

1

84342849

PIVOT

Brake LH,

1шт.

2

13407811

LUBE NIPPLE,Angled - 45 Degree, M10 x 1 x 27.00mm

Fitting

1шт.

3

84342852

PIVOT

Brake RH, Incl 5

1шт.

4

13407811

LUBE NIPPLE,Angled - 45 Degree, M10 x 1 x 27.00mm

Fitting, Lube

1шт.

5

84342853

LEVER

Assy Brake Rear, Incl 7

2шт.

6

84279144

BUSHING,22mm ID x 25.11mm OD x 20mm L

1шт.

7

84342846

LINK

Front

2шт.

8

84342856

SHAFT

Assy Brake Pedal, Incl 10

1шт.

9

13407811

LUBE NIPPLE,Angled - 45 Degree, M10 x 1 x 27.00mm

Fitting

2шт.

10

84279135

LEVER

Brake Assy, Pedal Left

1шт.

11

84342857

PEDAL

RH, Brake

1шт.

12

559627

SPRING

2шт.

13

4968813

BOLT,Hex, M16 x 1.5 x 32mm

1шт.

14

562108

WASHER,28.5mm ID x 45mm OD x 4mm Thk

1шт.

15

11067676

SNAP RING,M28, Ext

Retaining

1шт.

16

84368422

LEVER

Brake Adjuster Rear

2шт.

17

84279164

LOCK WASHER

2шт.

18

87599603

CIRCLIP

Ring, External Retaining

2шт.

19

10569479

LOCK WASHER,10.2mm ID x 16mm OD x 2.5mm Thk

6шт.

20

14420271

HEX SOC SCREW,M10 x 1.5 x 30mm, Cl 12.9, Full Thd

6шт.

21

596420

PIN,10mm OD x 34mm L

6шт.

22

12638601

WASHER,M10 x 18 x 2

12шт.

23

10734401

COTTER PIN,M2 x 22

12шт.

24

12163921

NUT,M12 x 1.5, Cl 10

2шт.
