Запчасти Case IH FARMALL 70A (31.114.AB[01]) - TWO SPEED REAR POWER TAKE-OFF (31) - IMPLEMENT POWER TAKE OFF

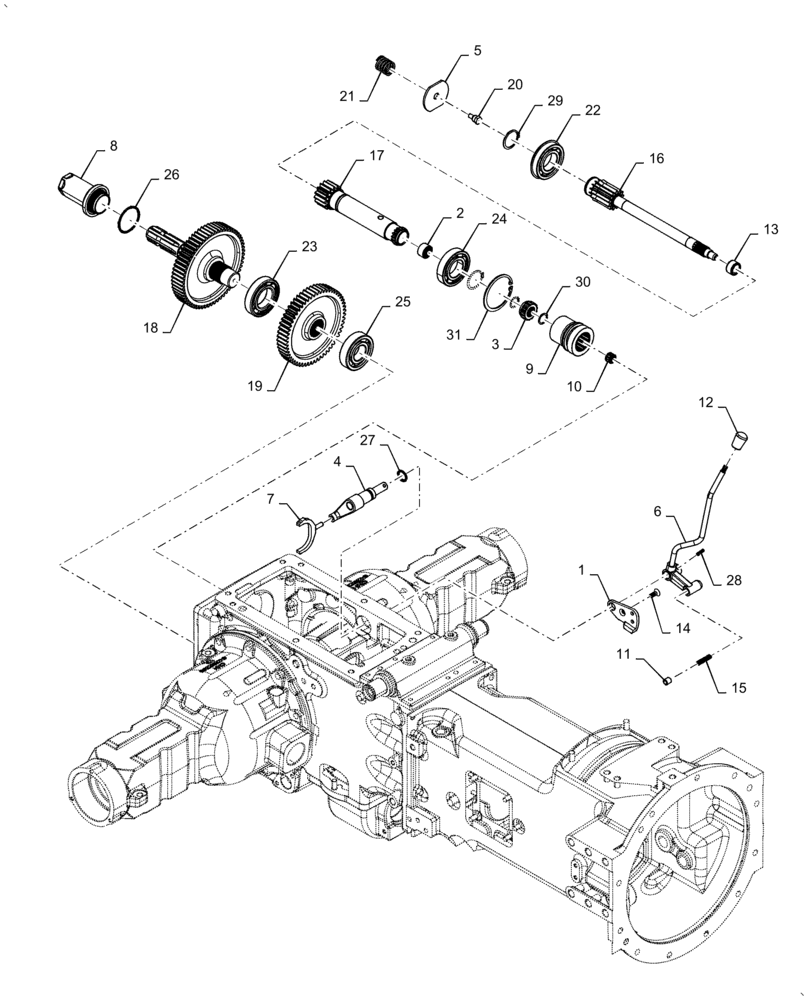

Схема запчастей Case IH FARMALL 70A - (31.114.AB[01]) - TWO SPEED REAR POWER TAKE-OFF (31) - IMPLEMENT POWER TAKE OFF
17
30
16
15
27
14
10
1
21
18
22
26
31
2
4
8
12
5
28
29
13
19
24
20
25
11
7
3
6
23
9

Артикул

Название

Примечание

Количество

1

47803892

SELECTOR

PTO 750 Speed

1шт.

2

87522323

ROLLER BEARING

Needle

1шт.

3

87522322

GEAR

Coupling

1шт.

4

87498128

LEVER

PTO Engage Inside

1шт.

5

47131175

BRAKE DISC,14mm ID x 70mm OD x 4mm Thk

1шт.

6

87370468

LEVER

Assy, PTO Engagement

1шт.

7

47794662

FORK

PTO Disengage

1шт.

8

84477554

COVER

PTO Shaft

1шт.

9

47576602

COUPLING

PTO Engage Disengage

1шт.

10

84182973

NEEDLE BEARING,Needle, 14mm ID x 20mm OD x 12mm W

Roller

1шт.

11

82825427

CLIP

Lever, PTO

1шт.

12

82824877

KNOB

PTO Lever

1шт.

13

5176908

NEEDLE BEARING,22mm ID x 28mm OD x 17mm W

Needle

1шт.

14

5124642

HEX SOC SCREW,FLAT, M8 x 1.25 x 20mm, Cl 8.8

1шт.

15

4956546

SPRING,Cylindrical, 8.1mm OD x 38mm L

Compression

1шт.

16

47638417

SHAFT

Driver ID33 Double Speed 540E

1шт.

17

47638406

SHAFT

PTO Driver ID33 Speed 540E

1шт.

18

47638402

SHAFT

PTO Output ID33 Double Speed

1шт.

19

47638400

GEAR

PTO Driven ID33 Double Speed 540E

1шт.

20

47130774

PIN,13.5mm OD x 22mm L

1шт.

21

47127604

SPRING,Compression, 31mm OD x 33.3mm L

PTO Brake Mechanical

1шт.

22

28996320

BALL BEARING,40mm ID x 80mm OD x 18mm W

1шт.

23

20972850

BALL BEARING,45 mm ID x 85 mm OD x 19 mm

1шт.

24

20915780

BALL BEARING,40mm ID x 80mm OD x 18mm W

1шт.

25

20045200

BALL BEARING,35mm ID x 80mm OD x 21mm

1шт.

26

14459580

O-RING,0.103" Thk x 2.05" ID, -137, Cl 5, 75 Duro

1шт.

27

14457380

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

1шт.

28

14166170

ROLL PIN

Slotted, Spring

1шт.

29

11068876

SNAP RING,M40, Ext

Retaining

2шт.

30

11066976

SNAP RING,M21, Ext

1шт.

31

11061976

SNAP RING,M80, Int

Retaining

2шт.

Выбрано товаров: 31
