Запчасти Case IH FARMALL 70A (31.110.AB[01]) - ONE-SPEED REAR POWER TAKE-OFF (31) - IMPLEMENT POWER TAKE OFF

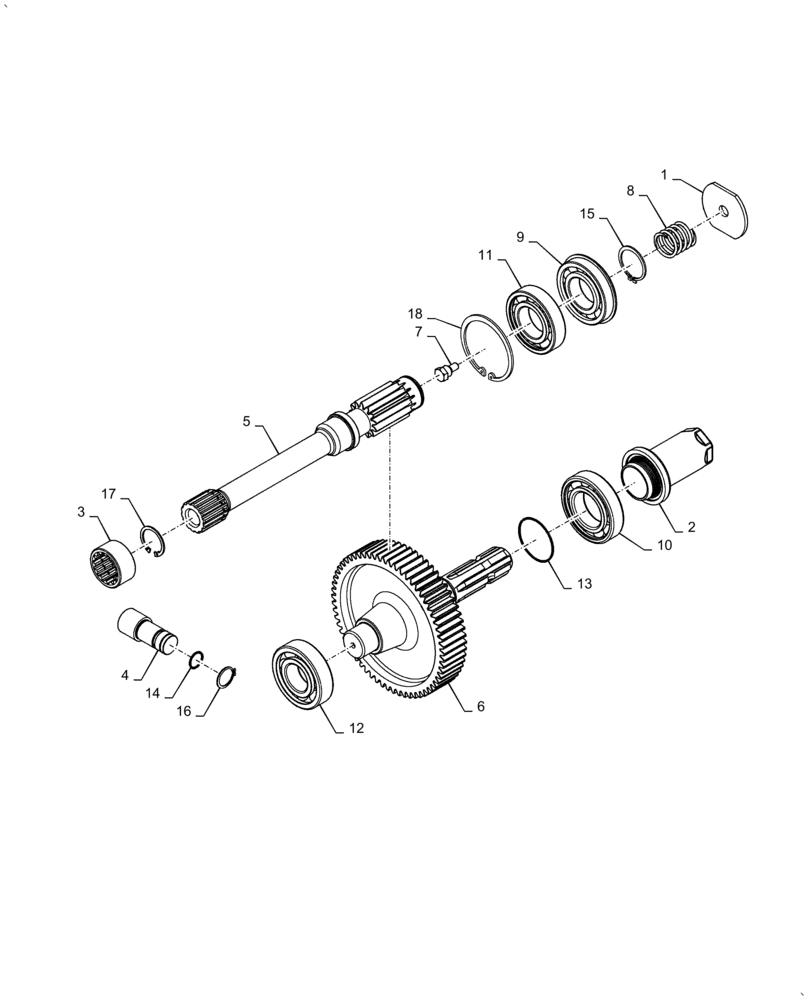

Схема запчастей Case IH FARMALL 70A - (31.110.AB[01]) - ONE-SPEED REAR POWER TAKE-OFF (31) - IMPLEMENT POWER TAKE OFF
5
12
14
15
17
13
6
7
4
11
16
10
1
18
3
2
9
8

Артикул

Название

Примечание

Количество

1

47131175

BRAKE DISC,14mm ID x 70mm OD x 4mm Thk

1шт.

2

84477554

COVER

PTO Shaft

1шт.

3

84178650

COUPLING

PTO

1шт.

4

84178649

SHAFT

Link, Guide Differential Lock

1шт.

5

47638403

SHAFT

PTO ID33 Single Speed Driver

1шт.

6

47638401

SHAFT

PTO Output Single Speed

1шт.

7

47130774

PIN,13.5mm OD x 22mm L

1шт.

8

47127604

SPRING,Compression, 31mm OD x 33.3mm L

PTO Brake Mechanical

1шт.

9

28996320

BALL BEARING,40mm ID x 80mm OD x 18mm W

1шт.

10

20972850

BALL BEARING,45 mm ID x 85 mm OD x 19 mm

1шт.

11

20915780

BALL BEARING,40mm ID x 80mm OD x 18mm W

1шт.

12

20045200

BALL BEARING,35mm ID x 80mm OD x 21mm

1шт.

13

14459580

O-RING,0.103" Thk x 2.05" ID, -137, Cl 5, 75 Duro

1шт.

14

14457380

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

1шт.

15

11068876

SNAP RING,M40, Ext

Retaining

1шт.

16

11067276

SNAP RING,M24, Ext

1шт.

17

11059476

SNAP RING,M35, Int

Seal

1шт.

18

11061976

SNAP RING,M80, Int

Retaining

1шт.

Выбрано товаров: 18
