Запчасти Case IH FARMALL 70A (25.310.AE[01]) - TRANSMISSION SHAFT (25) - FRONT AXLE SYSTEM

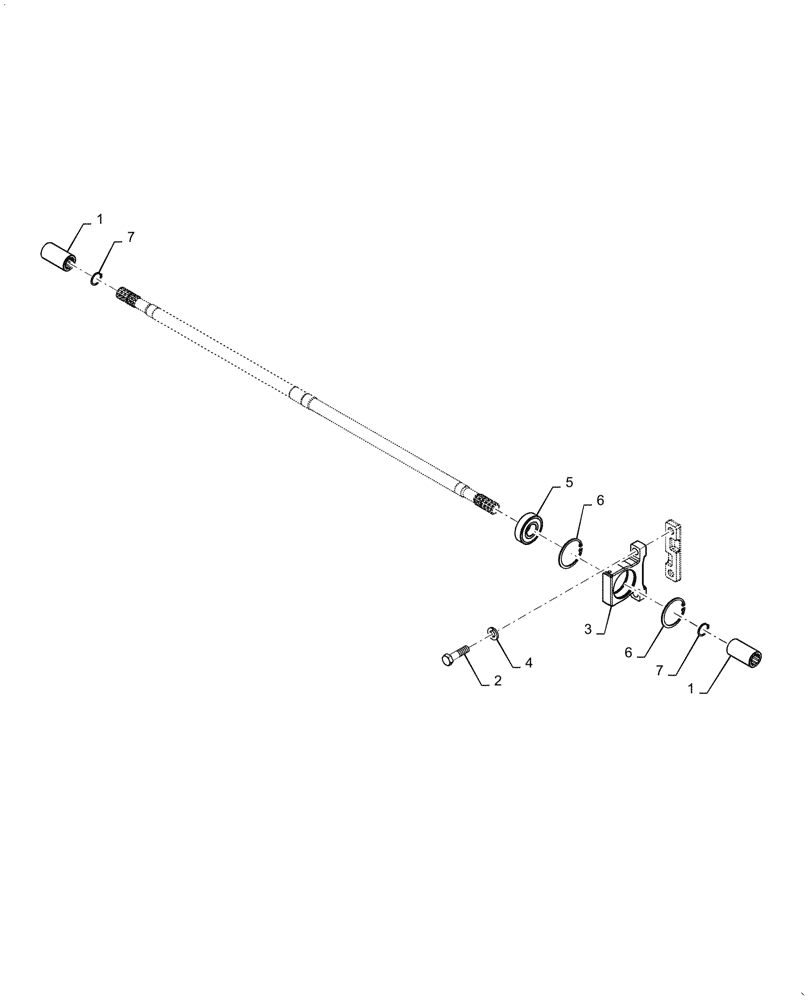

Схема запчастей Case IH FARMALL 70A - (25.310.AE[01]) - TRANSMISSION SHAFT (25) - FRONT AXLE SYSTEM
3
6
6
1
1
7
5
4
7
2

Артикул

Название

Примечание

Количество

1

5199243

SPLINED COUPLING

Sleeve Front Transmission

2шт.

1

4997313

SLEEVE,26mm ID x 40mm OD x 74mm L, 10T

Coupling

1шт.

2

15981121

BOLT,Hex, M16 x 1.5 x 60mm, Cl 8.8

2шт.

3

5124328

SUPPORT

Transmission Shaft

1шт.

4

10517279

LOCK WASHER,16.2mm ID x 30.6mm OD x 4.2mm Thk

2шт.

5

28996680

BALL BEARING,30mm ID x 72mm OD x 19mm W

1шт.

6

11061576

SNAP RING,M72, Int

Circlip

2шт.

7

11067776

SNAP RING,M29, Ext

2шт.

Выбрано товаров: 8
