Запчасти Case IH FARMALL 70A (21.182.AG[05]) - FRONT AXLE, STEERING CYLINDER ASSY (21) - TRANSMISSION

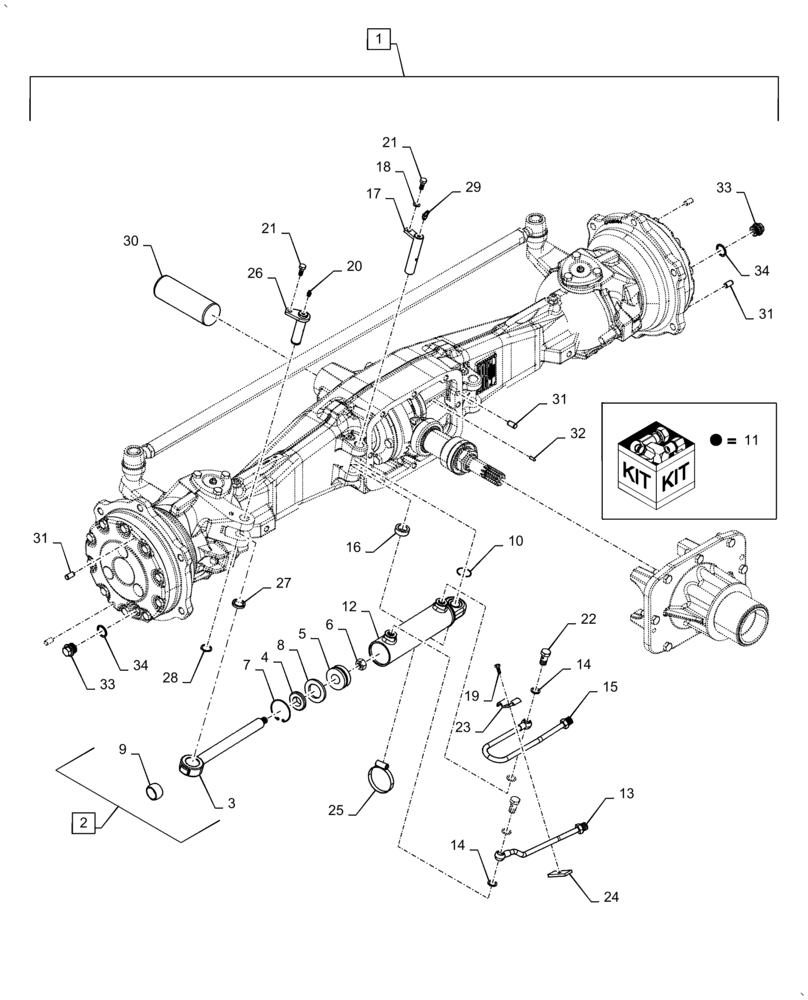

Схема запчастей Case IH FARMALL 70A - (21.182.AG[05]) - FRONT AXLE, STEERING CYLINDER ASSY (21) - TRANSMISSION
22
31
28
14
34
2
7
15
14
27
33
25
32
11
23
18
19
16
21
8
33
34
17
31
24
20
21
9
12
3
11
26
29
1
30
4
31
13
6
10
5

Артикул

Название

Примечание

Количество

1

84256094

FRONT AXLE

Incl 2 - 34

1шт.

2

87491176

CYLINDER,Double Acting, 22mm Rod, 165mm Stroke

Steering, Incl 3 - 12

1шт.

3

84123959

STEM

1шт.

4

5190590

SPOOL

Front

2шт.

5

5190908

PISTON

Piston

1шт.

6

84123955

NUT

1шт.

7

5190907

SNAP RING

Seeger

1шт.

8

5190912

LOCKING RING

1шт.

9

5190901

BUSHING

Ball Joint

1шт.

10

5190953

SENSOR

1шт.

11

5190591

SEAL KIT

2шт.

11

5190549

SCRAPER RING

2шт.

11

5190589

RING

Dual

2шт.

11

5190909

SEAL

Piston

2шт.

11

5190911

SEAL

2шт.

12

47388440

SEAL KIT

Assy With Head

1шт.

13

87736976

RIGID TUBE

Pipe

1шт.

14

10280060

SEAL,M14.2 x 20 x 1.5

Washer

4шт.

15

87736963

RIGID TUBE

Pipe

1шт.

16

5142223

SPACER,20.5mm ID x 28mm OD x 16mm L

1шт.

17

5165265

PIN,19.99mm OD x 100mm L

Pivot Cylinder Assembly

1шт.

18

10516679

LOCK WASHER,Helical Spring, 8.20mm ID x 14.80mm OD x 2.20mm, C72, ZNM

1шт.

19

10902221

BOLT,Hex, M6 x 16mm, CL 8.8

1шт.

20

13406911

LUBE NIPPLE,Straight, 1/4"-28 x 0.54"

Fitting

1шт.

21

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

22

10184311

BANJO BOLT,M14 x 1.5 x 27mm

2шт.

23

4999554

CLAMP,2 Hoses

Clip Cylinder Pipes

1шт.

24

5138294

SUPPORT

For Clip

1шт.

25

13000890

HOSE CLAMP,50mm - 70mm, Worm Gear

1шт.

26

5173252

PIN,19.98mm OD x 79.5mm L

Pivot Assy for Steering Cylinder

1шт.

27

5100730

WASHER,20.5mm ID x 28mm OD x 5.25mm Thk

2шт.

28

11066876

SNAP RING,M20, Ext

Circlip Retaining

1шт.

29

13406811

LUBE NIPPLE,45 Degree, 1/4" NPT x .81" lg

Fitting

1шт.

30

5140017

PIN,52.65mm OD x 153.00mm

1шт.

31

4988170

PIN,10mm OD x 20mm L

2шт.

32

4966244

PIN,5mm OD x 15mm L

1шт.

33

84422229

PLUG,M22 x 1.5

Magnetic

3шт.

34

10263460

SEAL,22.3mm ID x 28mm OD x 1.5mm Thk

3шт.

Выбрано товаров: 38
