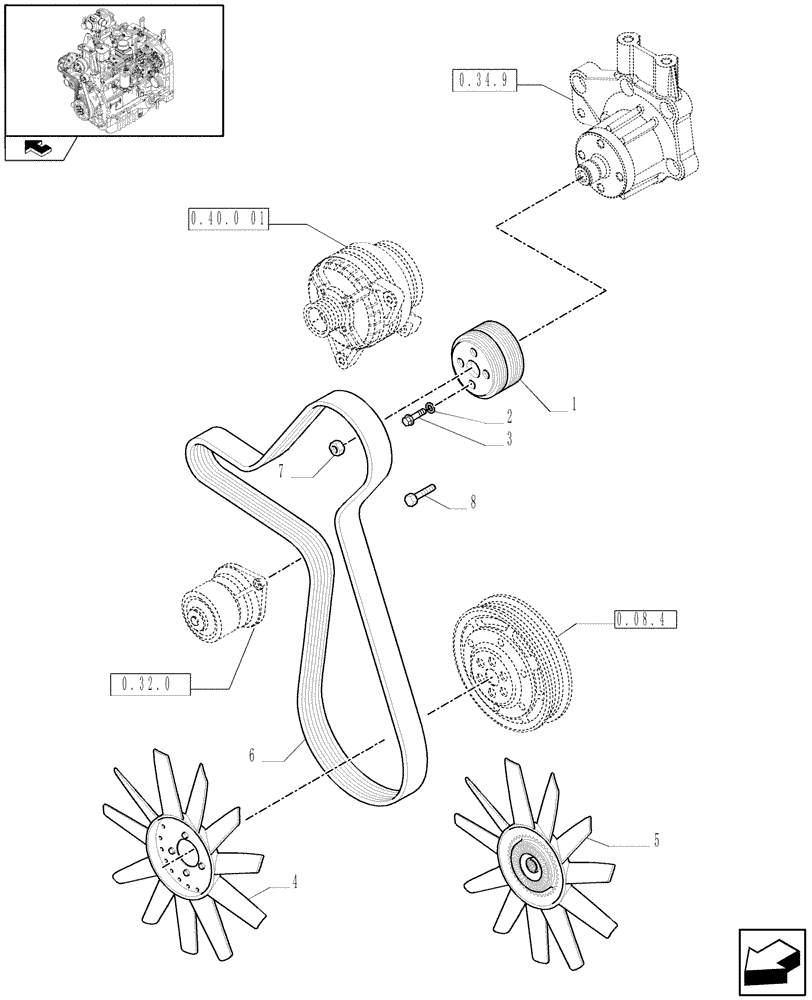

Запчасти Case IH FARMALL 70 (0.34.7[01]) - PULLEY, FAN AND BELT - C6399 (01) - ENGINE

1

87519548

PULLEY,132mm OD

1шт.

Valid for 60 and 70 Models only

1шт.

1

87639094

PULLEY,132mm OD

1шт.

Valid for 80 Model only

1шт.

2

11198374

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.6mm Thk

4шт.

3

11106421

SCREW,Hex, M10 x 1.5 x 30mm, Cl 8.8

4шт.

4

5198172

FAN

1шт.

5

47135806

FAN,11 Blades, 450mm OD

1шт.

Fan with Visco, VAR.330009

1шт.

6

47131754

V-BELT,28.48 mm W x 1381.00 mm L, 8 Ribs

1шт.

Valid for 60 and 70 Models only

1шт.

6

87705737

V-BELT,3.56 mm W x 1398.00 mm L, 8 Ribs

1шт.

Valid for 80 Model only

1шт.

7

11701711

NUT,Hex, M10, Cl 8, ZND

1шт.

8

87302310

HEX SOC SCREW,M10 x 1.5 x 80mm

1шт.
