Запчасти Case IH FARMALL 70 (1.93.1[01]) - INSULATORS - W/CAB (10) - OPERATORS PLATFORM/CAB

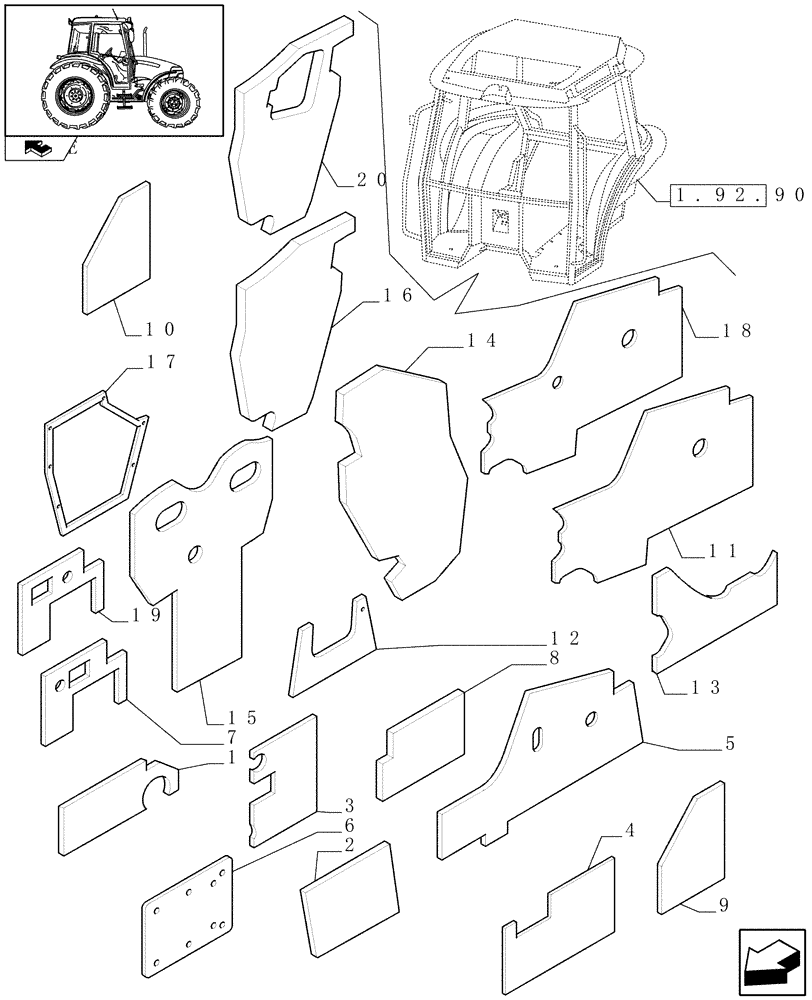

Схема запчастей Case IH FARMALL 70 - (1.93.1[01]) - INSULATORS - W/CAB (10) - OPERATORS PLATFORM/CAB
10
14
9
8
5
13
15
11
6
17
18
16
home
1.92.90 01
2
19
4
7
20
1
3
12

Артикул

Название

Примечание

Количество

1

87396462

FOAM INSULATION

Gear Command Floor

1шт.

2

87396447

FOAM INSULATION

Floor Plate, Front

1шт.

3

87396455

FOAM INSULATION

Floor Plate, Rear

1шт.

4

87396456

FOAM INSULATION

Rear Inclined Floor

1шт.

5

87396458

FOAM INSULATION

RH

1шт.

6

87396457

FOAM INSULATION

Seat Bottom Plate

1шт.

7

87396466

FOAM INSULATION

Floor Plate, Rear, Serial Range: -C6480

1шт.

8

87396448

FOAM INSULATION

Floor Plate, Rear Middle

1шт.

9

87396459

FOAM INSULATION

Cross Bar, LH

1шт.

10

87396463

FOAM INSULATION

Cross Bar, RH

1шт.

11

87396460

FOAM INSULATION

Floor Plate, LH, Serial Range: -C6480

1шт.

12

87396461

FOAM INSULATION

Cross Bar, Middle

1шт.

13

87396454

FOAM INSULATION

Floor Plate, LH Rear

1шт.

14

87396674

FOAM INSULATION

Rear Hood Top Seal

1шт.

15

87396780

FOAM INSULATION

Rear Hood, RH

1шт.

16

87396717

FOAM INSULATION

Rear Hood RH, Serial Range: -C6766

2шт.

17

87396110

SEAL

Rear Platform

1шт.

18

84234981

FLOOR MAT

Floor Plate, Rear, Start Serial: D6480

1шт.

19

84234982

FLOOR MAT

Floor Plate, LH, Start Serial: D6480

1шт.

20

84294972

FOAM INSULATION

Rear Hood, LH, Start Serial: D6766

1шт.

Выбрано товаров: 20
