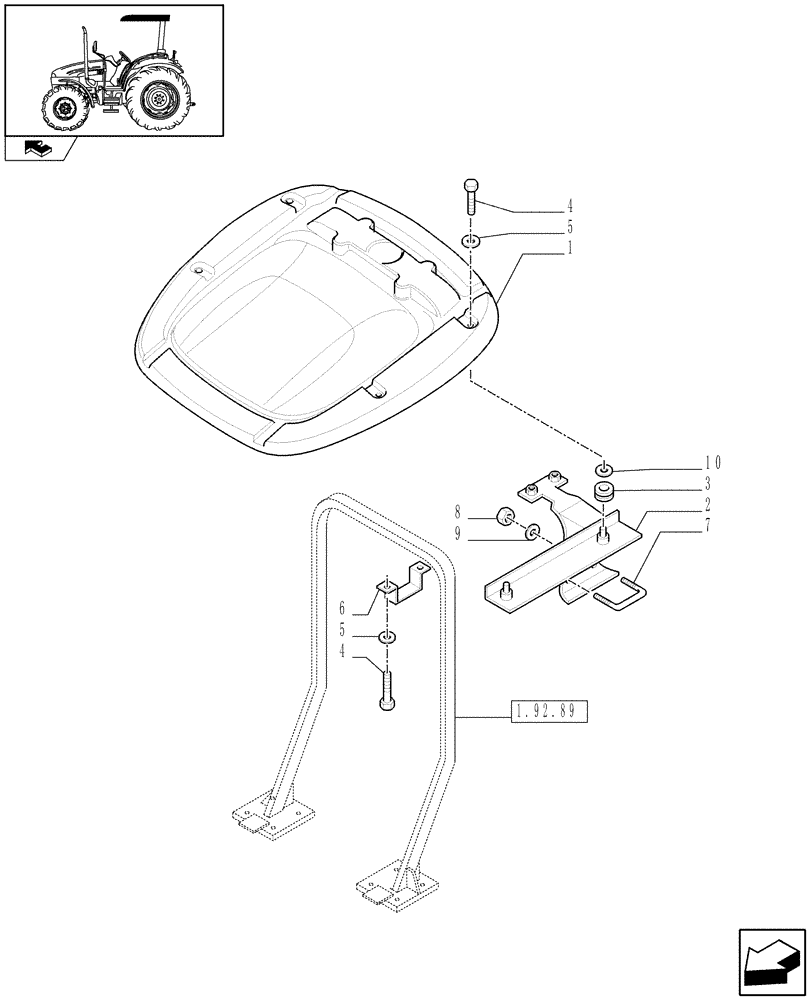

Запчасти Case IH FARMALL 70 (1.92.89/02) - FOLDING ROPS CANOPY (VAR.335857) (10) - OPERATORS PLATFORM/CAB

1

87550446

CANOPY

Red, Serial Range: -C7092

1шт.

1

87393527

ROOF

Red, Start Serial: D7092

1шт.

2

5097369

SUPPORT

RH

1шт.

2

5097368

SUPPORT

LH

1шт.

3

5089936

GROMMET

4шт.

4

15970724

SCREW,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

8шт.

5

12601471

WAVE WASHER,10.5mm OD x 21mm ID x 1mm Thk

8шт.

6

5097407

BOLT

2шт.

7

5097408

BRACKET

2шт.

8

12574521

LOCK NUT,M10 x 1.25, Cl 10

4шт.

9

12644304

WASHER,10.2mm ID x 35mm OD x 3mm Thk

4шт.

10

14499521

WASHER,10.5mm ID x 18mm OD x 2mm Thk

4шт.
