Запчасти Case IH FARMALL 70 (1.92.87[07]) - MUDGUARDS AND FOOTBOARDS - L/CAB (10) - OPERATORS PLATFORM/CAB

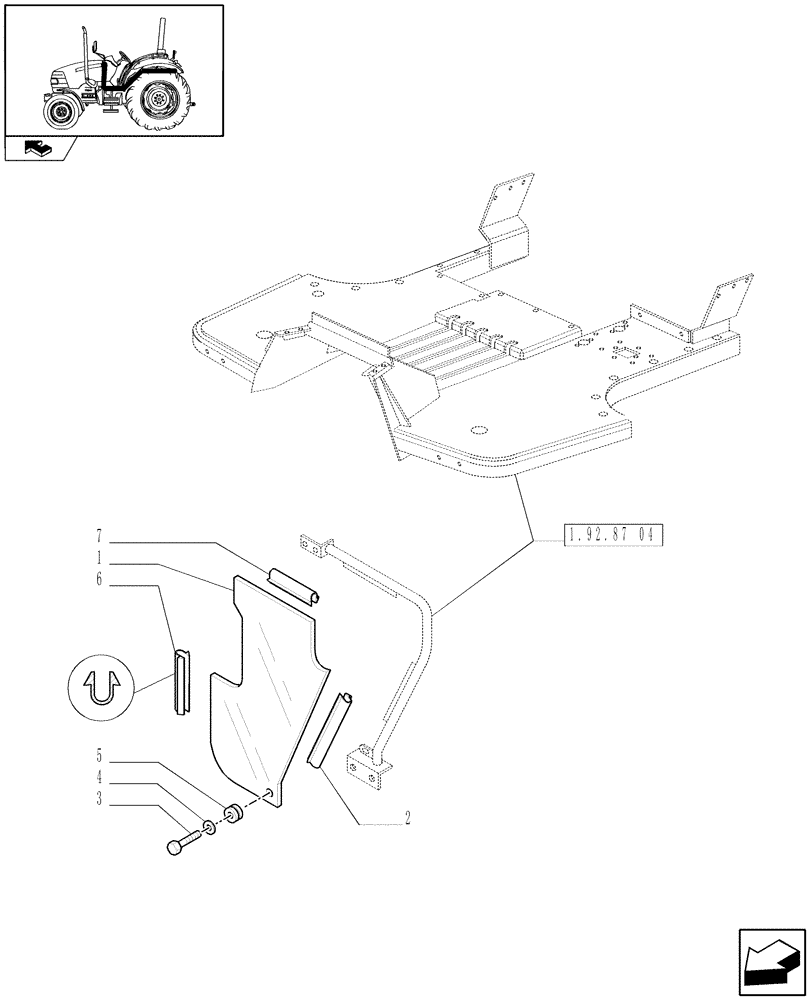

Схема запчастей Case IH FARMALL 70 - (1.92.87[07]) - MUDGUARDS AND FOOTBOARDS - L/CAB (10) - OPERATORS PLATFORM/CAB
5
6
7
1.92.87 04
home
4
1
3
2

Артикул

Название

Примечание

Количество

1

5093343

CAB GLASS ASSY

2шт.

2

5092182

SEAL, GLASS,150mm L

2шт.

3

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

8шт.

4

12601374

WAVE WASHER,Wave, 8.40mm ID x 15.00mm OD x 0.80mm, 3.00mm, CST, DAC

16шт.

5

5092183

GROMMET

4шт.

6

5093036

SEAL,652mm L

2шт.

7

5092181

SEAL, GLASS,240mm L

2шт.

Выбрано товаров: 7
