Запчасти Case IH FARMALL 70 (1.92.87[04A]) - MUDGUARDS AND FOOTBOARDS - L/CAB - D6752 (10) - OPERATORS PLATFORM/CAB

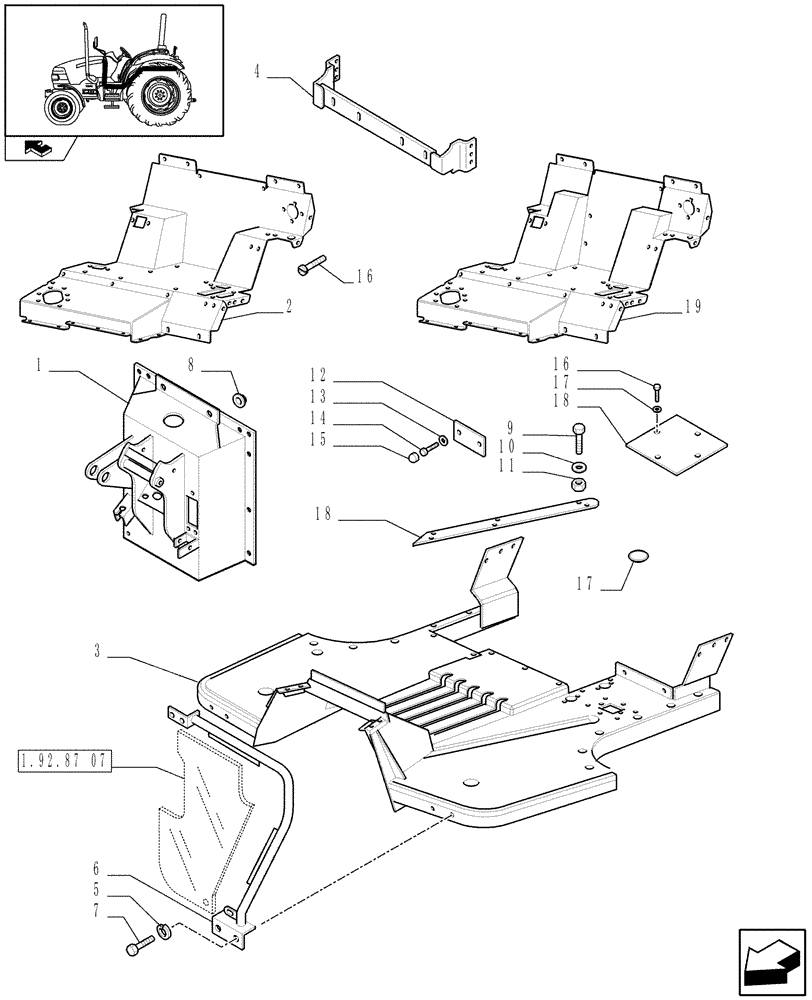

Схема запчастей Case IH FARMALL 70 - (1.92.87[04A]) - MUDGUARDS AND FOOTBOARDS - L/CAB - D6752 (10) - OPERATORS PLATFORM/CAB
8
home
1.92.87 07
13
10
6
15
7
16
11
19
18
4
17
5
18
1
17
14
2
16
9
12
3

Артикул

Название

Примечание

Количество

1

84404376

GUARD

JX80 - FARMALL80

1шт.

Power Shuttle e Servo PTO for Mechanical Differential Lock, VAR.330120-331120

1шт.

1

84251708

GUARD

JX60 - FARMALL60, JX70 - FARMALL70

1шт.

2

84251103

CAB FLOOR

1шт.

3

84251349

CAB FLOOR

1шт.

4

5091865

SUPPORT

1шт.

4

87594497

SUPPORT

1шт.

Automatic Pick Up Hitch with Swinging Drawbar and Hook, Mirror and less Protection, VAR.335929

1шт.

5

12601374

WAVE WASHER,Wave, 8.40mm ID x 15.00mm OD x 0.80mm, 3.00mm, CST, DAC

33шт.

6

87725193

SUPPORT

LH

1шт.

6

87725192

SUPPORT

RH

1шт.

7

16043321

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

23шт.

8

87679075

BUSHING,12.1mm ID x 26mm OD x 6mm L

1шт.

9

16043621

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

9шт.

10

10519601

WASHER,8.15mm ID x 17mm OD x 2mm Thk

4шт.

11

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

3шт.

12

5092169

COVER

1шт.

13

12601374

WAVE WASHER,Wave, 8.40mm ID x 15.00mm OD x 0.80mm, 3.00mm, CST, DAC

2шт.

14

16043121

SCREW,Hex, M8 x 1.25 x 14mm, Cl 8.8, Full Thd

2шт.

15

5089481

CAP,17mm OD

2шт.

16

13299117

SCREW

6шт.

17

84415630

PLUG

1шт.

18

84251337

COVER

1шт.

19

84251678

CAB FLOOR

1шт.

Automatic Pick Up Hitch with Swinging Drawbar and Hook, Mirror and less Protection, VAR.335929

1шт.

Выбрано товаров: 25
