Запчасти Case IH FARMALL 70 (1.92.85/01A) - SEAT WITH RETRACTABLE BELTS AND SAFETY SWITCH - BREAKDOWN (10) - OPERATORS PLATFORM/CAB

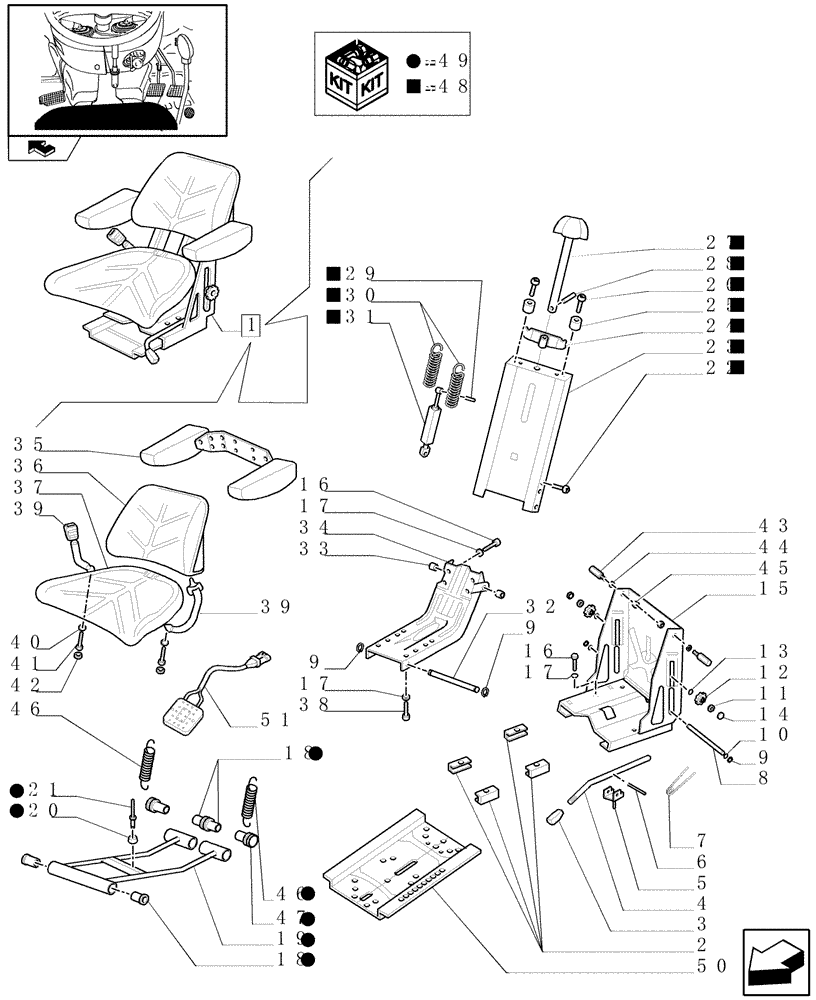

Схема запчастей Case IH FARMALL 70 - (1.92.85/01A) - SEAT WITH RETRACTABLE BELTS AND SAFETY SWITCH - BREAKDOWN (10) - OPERATORS PLATFORM/CAB
49
5
48
23
49
16
46
33
48
29
36
40
10
51
26
39
38
28
39
21
14
11
17
48
42
37
9
35
18
49
9
15
49
43
49
22
49
27
50
46
17
20
48
12
45
48
6
home
48
48
19
7
16
48
30
49
48
17
9
1
8
2
49
48
4
48
13
25
44
48
24
49
3
34
41
32
49
31
47
18

Артикул

Название

Примечание

Количество

1

87642775

DRIVER SEAT

ASSY, L/CAB

1шт.

Wheat Leather Seat with Rear Suspension

1шт.

1

87640372

DRIVER SEAT

ASSY, W/CAB

1шт.

Dynamic Leather Seat with Rear Suspension

1шт.

2

5080282

U-BRACKET

4шт.

3

5080283

KNOB

1шт.

4

5080284

HANDLE

1шт.

5

5080285

SUPPORT

1шт.

6

5080286

PIN

1шт.

7

5080287

SPRING

1шт.

8

5080288

ROD

1шт.

9

5080289

RING

4шт.

10

5080290

WASHER

2шт.

11

5080236

NUT

2шт.

12

5080291

KNOB

2шт.

13

5080292

WASHER

2шт.

14

5080419

COVER

2шт.

15

5080758

FRAME

1шт.

16

5080294

BOLT

5шт.

17

5080248

SPRING WASHER

9шт.

18

5080295

BUSHING

4шт.

19

5080760

SUPPORT

1шт.

20

5080297

SPACER

2шт.

21

5080298

RIVET

2шт.

22

5080299

BOLT

2шт.

23

5080764

FRAME

1шт.

24

5080301

RETAINER

1шт.

25

5080302

SPACER

2шт.

26

5080303

BOLT

2шт.

27

5080304

ADJUSTMENT SCREW,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

28

5080204

PIN

1шт.

29

5080305

COTTER PIN

2шт.

30

5080306

SPRING

2шт.

31

5080307

GAS STRUT

1шт.

32

5080308

ROD

1шт.

33

5080309

ROLLER

2шт.

34

5080310

FRAME

1шт.

35

5080311

ARMREST

1шт.

36

5080912

BACKREST

L/CAB

1шт.

Wheat Leather Seat with Rear Suspension

1шт.

36

5081310

SEAT BACK

W/CAB

1шт.

Dynamic Leather Seat with Rear Suspension

1шт.

37

5080911

SEAT CUSHION

L/CAB

1шт.

Wheat Leather Seat with Rear Suspension

1шт.

37

5081313

SEAT CUSHION

W/CAB

1шт.

Dynamic Leather Seat with Rear Suspension

1шт.

38

5080274

BOLT

4шт.

39

5080317

SEAT BELT

L/CAB

1шт.

39

5081319

SAFETY BELT

W/Cab

1шт.

40

5080269

WASHER

2шт.

41

5080270

SCREW,7/16 UNF x 25mm

2шт.

42

5080271

COVER,17.5mm ID

2шт.

43

5080759

PIN

2шт.

44

5080761

WASHER

2шт.

45

5080762

NUT

2шт.

46

5080763

SPRING

2шт.

47

5080765

BUSHING

2шт.

48

5080766

KIT

1шт.

49

5080767

KIT

1шт.

50

5080281

PLATE

1шт.

51

5080892

SWITCH ASSY

W/CAB

1шт.

51

5080918

SWITCH ASSY

L/CAB

1шт.

Выбрано товаров: 62
