Запчасти Case IH FARMALL 70 (1.92.85/01) - SEAT WITH RETRACTABLE BELTS AND SAFETY SWITCH - NA (10) - OPERATORS PLATFORM/CAB

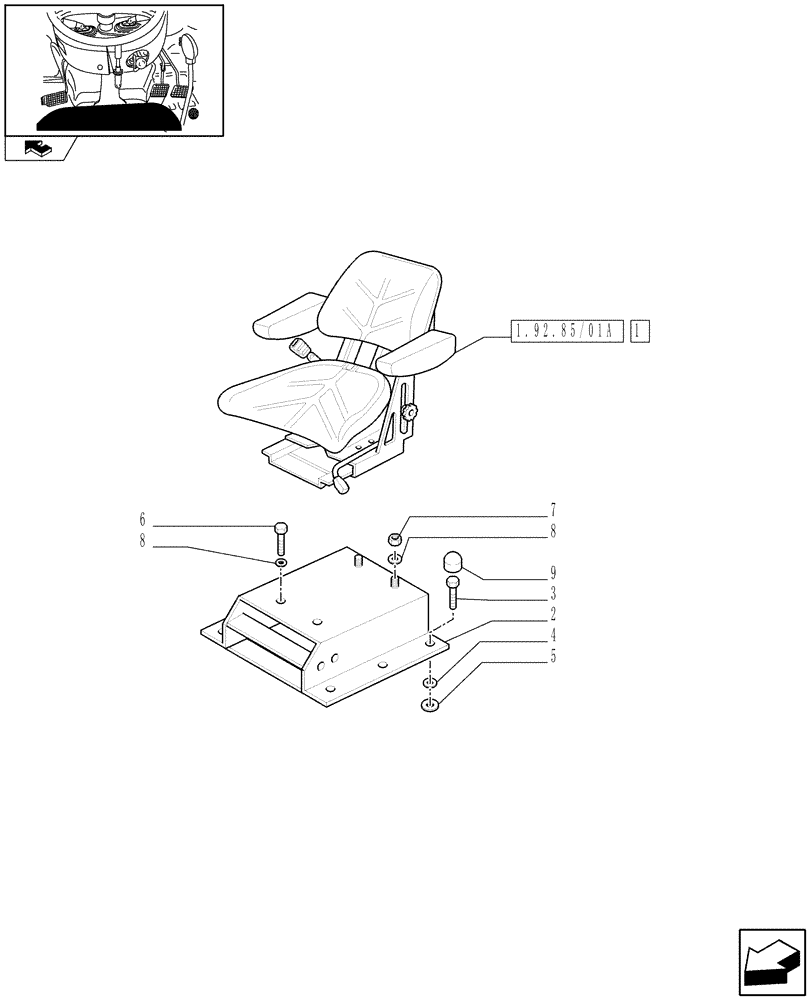

Схема запчастей Case IH FARMALL 70 - (1.92.85/01) - SEAT WITH RETRACTABLE BELTS AND SAFETY SWITCH - NA (10) - OPERATORS PLATFORM/CAB
1.92.85/01a
home
1
8
6
9
8
5
2
4
3
7

Артикул

Название

Примечание

Количество

1

87642775

DRIVER SEAT

ASSY, L/CAB

1шт.

Wheat Leather Seat with Rear Suspension

1шт.

1

87640372

DRIVER SEAT

ASSY, W/CAB

1шт.

Dynamic Leather Seat with Rear Suspension

1шт.

2

5093531

SUPPORT

1шт.

3

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

6шт.

4

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

6шт.

5

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

6шт.

6

15970524

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

7

12164714

NUT,M10 x 1.25, Cl 8

2шт.

8

12601471

WAVE WASHER,10.5mm OD x 21mm ID x 1mm Thk

4шт.

9

5089481

CAP,17mm OD

W/CAB

6шт.

Выбрано товаров: 12
