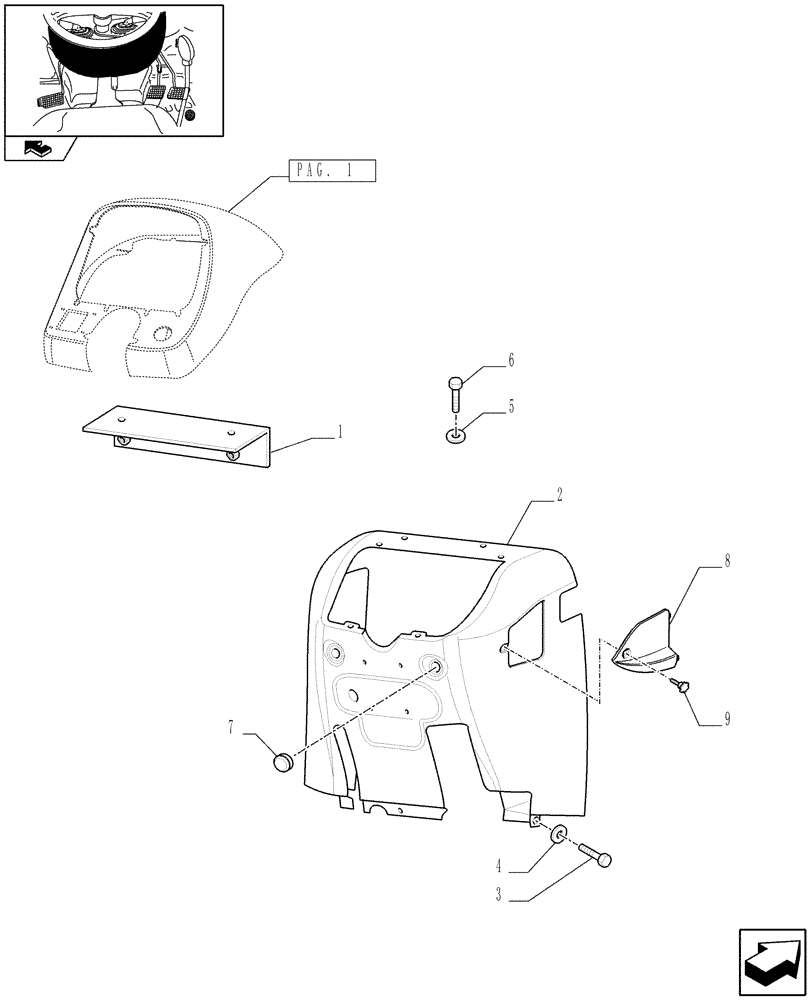

Запчасти Case IH FARMALL 70 (1.92.83[02]) - FRONT CONSOLE TRIM - L/CAB (10) - OPERATORS PLATFORM/CAB

1

5094097

SUPPORT

1шт.

2

87395796

SEPARATOR HOOD

, Serial Range: -C6752

1шт.

2

84242272

SEPARATOR HOOD

, Start Serial: D6752

1шт.

3

15970524

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

4

12601471

WAVE WASHER,10.5mm OD x 21mm ID x 1mm Thk

4шт.

5

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

1шт.

6

16043321

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

1шт.

7

84232640

PLUG

D=22.5

1шт.

8

84234980

COVER

, Start Serial: D6752

1шт.

9

84242533

SCREW,M5 x 0.8 x 0.8mm

, Start Serial: D6752

1шт.
