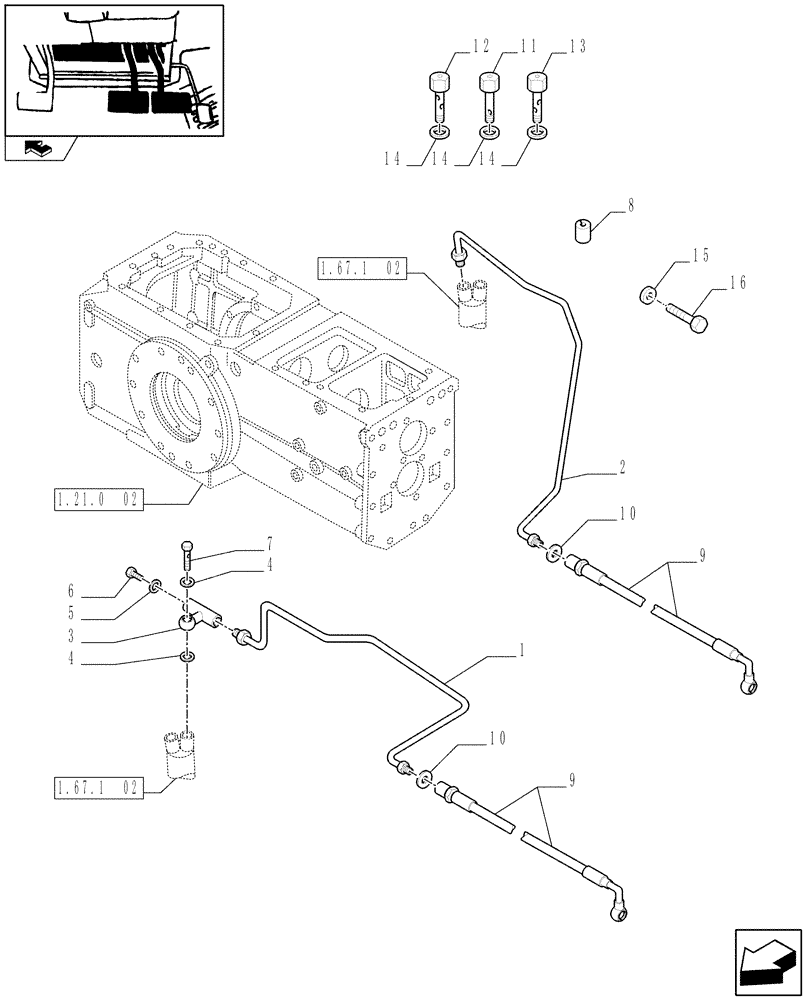

Запчасти Case IH FARMALL 70 (1.92.68[02]) - BRAKE PIPING (10) - OPERATORS PLATFORM/CAB

1

87757132

PIPE

RH

1шт.

2

84184985

BRAKE LINE

LH

1шт.

3

87751801

TEE

1шт.

4

2854292

SEALING WASHER,12mm ID x 17mm OD x 1.5mm Thk

2шт.

4

5183780

SEALING WASHER,9.73mm ID x 18mm OD x 1.5mm Thk

2шт.

5

87316678

SEALING WASHER,10mm ID x 16mm OD x 2.3mm Thk

1шт.

6

87397073

PLUG,M10 x 1.25

M10 x 1.5

1шт.

7

5155703

BANJO BOLT,M12 x 1.25 x 22mm

M12

1шт.

8

84337327

RUBBER SLEEVE

1шт.

9

87752246

FLEXIBLE HOSE,6.35mm ID x 770mm L, SAE 100R1

2шт.

10

13397876

SNAP RING,M18, Ext

2шт.

11

47132432

HYD CONNECTOR

1шт.

12

84175579

HYD CONNECTOR

1шт.

13

5155704

BANJO BOLT

2шт.

14

2854292

SEALING WASHER,12mm ID x 17mm OD x 1.5mm Thk

8шт.

15

12601774

WAVE WASHER,17mm ID x 30mm OD x 1.60mm, 6.30mm Max, CST, DAC

1шт.

16

15854424

BOLT,Hex, M16 x 1.5 x 18mm, Cl 8.8, Full Thd

1шт.
