Запчасти Case IH FARMALL 70 (1.92.63[02]) - STEERING COLUMN (10) - OPERATORS PLATFORM/CAB

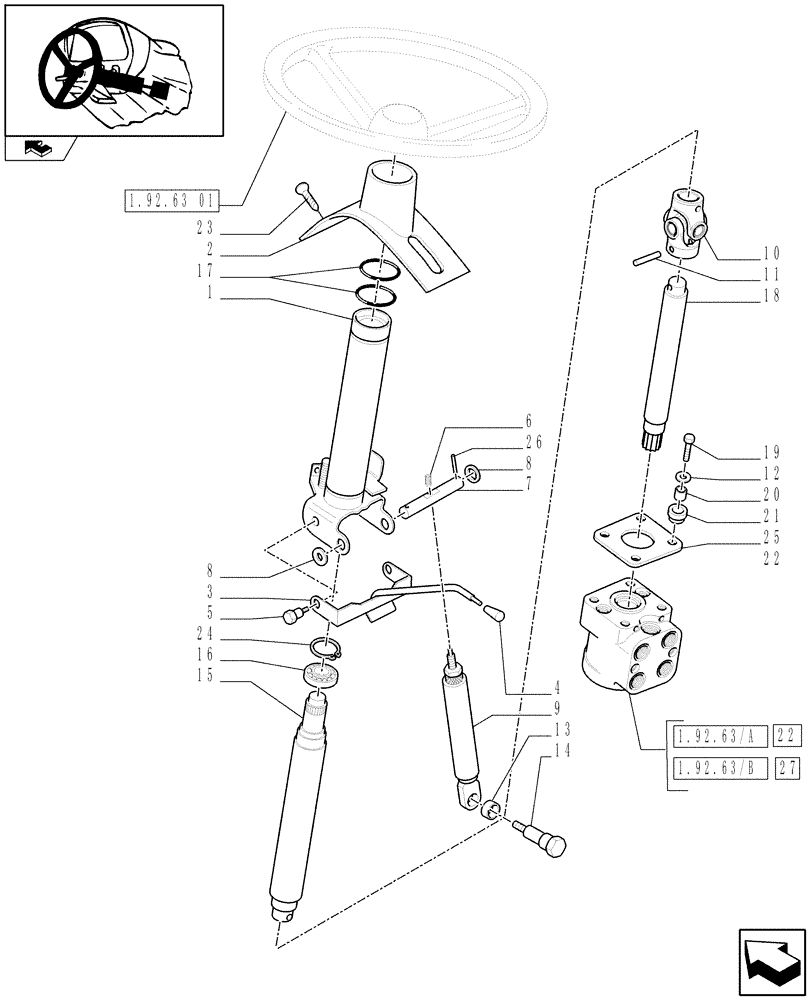

Схема запчастей Case IH FARMALL 70 - (1.92.63[02]) - STEERING COLUMN (10) - OPERATORS PLATFORM/CAB
23
20
14
10
13
22
1
16
22
5
4
2
3
18
6
21
24
17
11
15
19
8
7
home
1.92.63/a
1.92.63/b
1.92.63 01
26
25
12
27
9
8

Артикул

Название

Примечание

Количество

1

84152486

STEERING COLUMN

1шт.

Front Axle with/LIM Slip (40KM/h), VAR.335541(743559-743552),335542(743906-743552)

1шт.

2

87654786

PROTECTOR

1шт.

3

5089762

LEVER

1шт.

4

5177017

HANDLE GRIP

1шт.

5

5089591

BOLT,Hex, M10 x 1.25 x 41mm

2шт.

6

5089761

SPRING

1шт.

7

5093215

PIN

, Serial Range: -C7009

1шт.

7

84478473

PIN,16mm OD x 136mm L

, Start Serial: D7009

1шт.

8

10520204

WASHER,16.4mm ID x 28mm OD x 3mm Thk

2шт.

9

87732038

GAS STRUT

1шт.

10

5097932

UNIVERSAL JOINT

1шт.

11

14604370

ROLL PIN,M6 x 36, Slotted

2шт.

12

12601474

WAVE WASHER,Wave, 10.50mm ID x 21.00mm OD x 0.80mm, 3.00mm, CST, DAC

5шт.

13

5089756

SLEEVE,13mm ID x 17mm OD x 6.5mm L

1шт.

14

5089588

BOLT

1шт.

15

5097931

SHAFT

1шт.

16

5090125

BALL BEARING,25 mm ID x 42 mm OD x 9 mm

2шт.

17

235782

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

2шт.

18

5097930

SHAFT

1шт.

19

11106421

SCREW,Hex, M10 x 1.5 x 30mm, Cl 8.8

4шт.

20

5091784

SPACER,10.1mm ID x 14mm OD x 12mm L

4шт.

21

5091785

BUSHING,14mm ID x 20mm OD x 8mm L

4шт.

22

5164614

HYDRAULIC STEERING

2WD

1шт.

22

5164616

HYDRAULIC STEERING

4WD

1шт.

22

5164277

HYDRAULIC STEERING

4WD, JX80 Model

1шт.

Class 2 Front Axle with 2nd Steering Cylinder and Lim. Slip (30 KM/H), VAR.335539 (743906)

1шт.

22

5164277R

REMAN-HYD VALVE

Reman for New PN 5164277

1шт.

22

5164277C

CORE-VALVE HYD

Return Number

1шт.

23

412064

BOLT,Hex, M4 x 16mm, Cl 8.8, Full Thd

2шт.

24

370002

CIRCLIP,M25, External

1шт.

25

5197927

SHIM,45mm ID x 82mm OD x 5mm Thk

1шт.

26

10733601

COTTER PIN,M3.2 x 22

2шт.

27

5165251

HYDRAULIC STEERING

4WD, JX80 Models

1шт.

Class 2 Front Axle with 2nd Steering Cylinder (40 KM/H), VAR.335540-\r\n(743908-743552),335542 (743906-743552)

1шт.
