Запчасти Case IH FARMALL 70 (1.91.1) - ELECTRIC CONTROLS - W/CAB (10) - OPERATORS PLATFORM/CAB

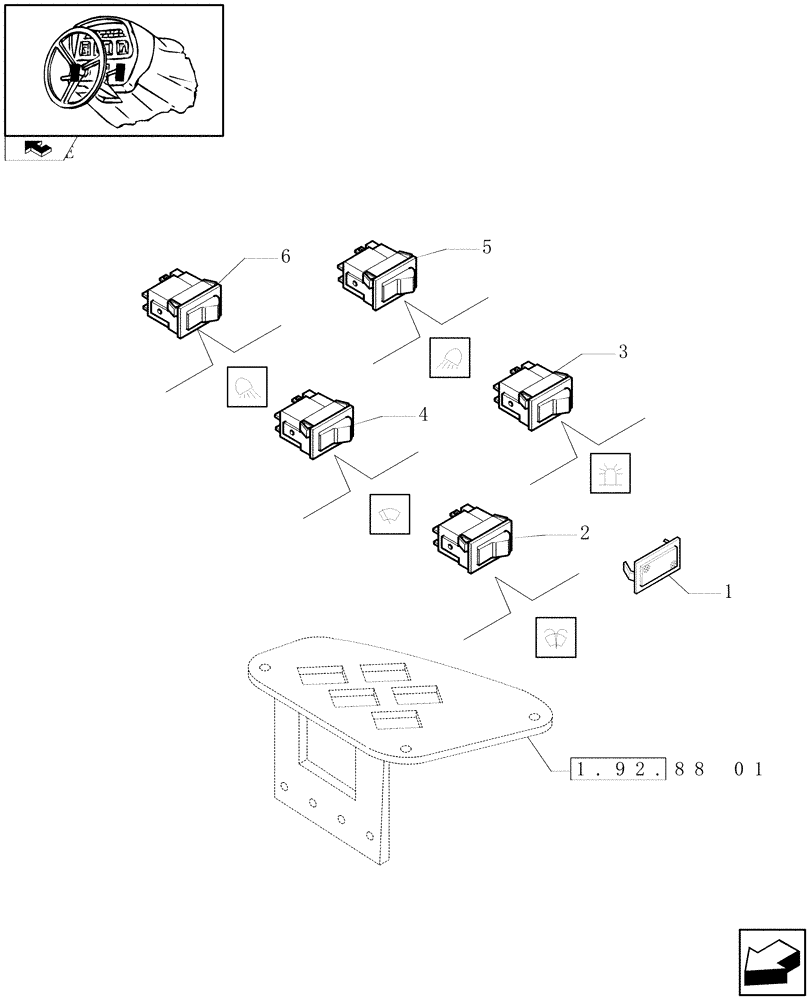

Схема запчастей Case IH FARMALL 70 - (1.91.1) - ELECTRIC CONTROLS - W/CAB (10) - OPERATORS PLATFORM/CAB
2
5
1.92.88 01
home
6
3
4
1

Артикул

Название

Примечание

Количество

1

5166218

PLUG,Switch

2шт.

2

5089430

WINDSHIELD WASHER SW

Wiper Front

1шт.

2

5094131

WINDSHIELD WIPER SWI

Front/Rear

1шт.

Rear Wash & Wiper with Front Wash & Wiper, VAR.335642

1шт.

3

87376568

BEACON SWITCH

Rotary Beacon Switch

1шт.

Beacon Lights, Fix Position, VAR.335755

1шт.

4

5089431

WINDSHIELD WIPER SWI

1шт.

5

87472544

SWITCH ASSY

Front Work Lamp

1шт.

Rear and front Work Lamps for Cab, VAR.335709-335769

1шт.

6

87551489

LIGHT SWITCH

Rear Work Lamp

1шт.

Rear and front Work Lamps for Cab, VAR.335709-335769

1шт.

Выбрано товаров: 11
