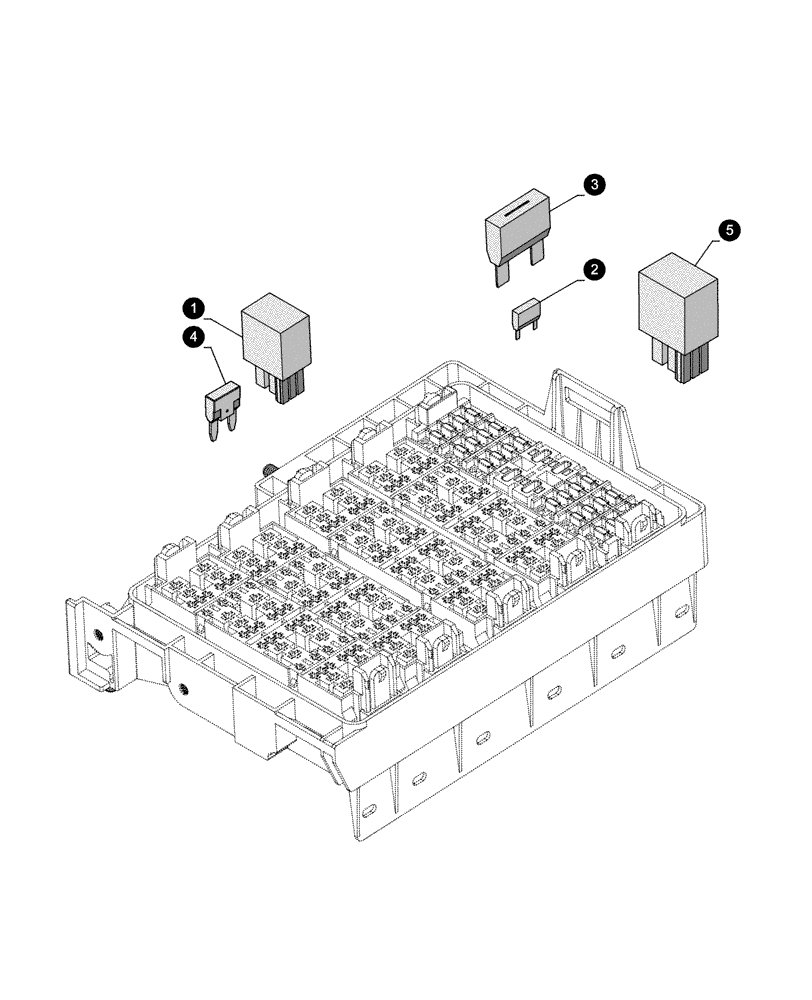

Запчасти Case IH FARMALL 70 (05.100.04[03]) - MAINTENANCE PARTS - FUSES (00) - GENERAL

1

5086059

RELAY

12V, 20A

1шт.

Valid with FARMALL 60-TRACTOR - TIER 3, FARMALL 70-TRACTOR - TIER 3, FARMALL80-TRACTOR - TIER 3, JX60-TRACTOR TIER 3, JX70-TRACTOR TIER 3, JX80-TRACTOR TIER 3 Models

1шт.

Valid with VAR. 335324

1шт.

After Date (21 April 2009 Ankara Prod. / October 2009 Jesi Prod.)

1шт.

1

86619908

RELAY,12V, 150A

12V

1шт.

Valid with FARMALL 60-TRACTOR - TIER 3, FARMALL 70-TRACTOR - TIER 3, FARMALL80-TRACTOR - TIER 3, JX60-TRACTOR TIER 3, JX70-TRACTOR TIER 3, JX80-TRACTOR TIER 3 Models

1шт.

Valid with VAR. 330204

1шт.

After Date (04 November 2009 Ankara Prod./ April 2010 Jesi Prod.)

1шт.

1

84402860

RELAY

15A

1шт.

Valid with FARMALL 60-TRACTOR - TIER 3, FARMALL 70-TRACTOR - TIER 3, FARMALL80-TRACTOR - TIER 3, JX60-TRACTOR TIER 3, JX70-TRACTOR TIER 3, JX80-TRACTOR TIER 3 Models

1шт.

Valid with STD

1шт.

After Date 02 February 2009

1шт.

2

87717079

FUSE,7.5A

1шт.

Valid with FARMALL 60-TRACTOR - TIER 3, FARMALL 70-TRACTOR - TIER 3, FARMALL80-TRACTOR - TIER 3, JX60-TRACTOR TIER 3, JX70-TRACTOR TIER 3, JX80-TRACTOR TIER 3 Models

1шт.

Valid with STD

1шт.

From serial N. (02 March 2011 Ankara Prod. / 25 October 2010 Jesi Prod.)

1шт.

2

5080122

FUSE,40A, Strip

40A

1шт.

Valid with FARMALL 60-TRACTOR - TIER 3, FARMALL 70-TRACTOR - TIER 3, FARMALL80-TRACTOR - TIER 3, JX60-TRACTOR TIER 3, JX70-TRACTOR TIER 3, JX80-TRACTOR TIER 3 Models

1шт.

Valid with STD

1шт.

From serial N. (02 March 2011 Ankara Prod. / 25 October 2010 Jesi Prod.)

1шт.

3

92277

FUSE,30 Amp

30A, Maxival

1шт.

Valid with FARMALL 60-TRACTOR - TIER 3, FARMALL 70-TRACTOR - TIER 3, FARMALL80-TRACTOR - TIER 3, JX60-TRACTOR TIER 3, JX70-TRACTOR TIER 3, JX80-TRACTOR TIER 3 Models

1шт.

3

5190333

FUSE,40A, Maxi, Orange

40A, Maxival, Orange

1шт.

Valid with FARMALL 60-TRACTOR - TIER 3, FARMALL 70-TRACTOR - TIER 3, FARMALL80-TRACTOR - TIER 3, JX60-TRACTOR TIER 3, JX70-TRACTOR TIER 3, JX80-TRACTOR TIER 3 Models

1шт.

3

10404290

FUSE

80A, Megaval

1шт.

Valid with FARMALL 60-TRACTOR - TIER 3, FARMALL 70-TRACTOR - TIER 3, FARMALL80-TRACTOR - TIER 3, JX60-TRACTOR TIER 3, JX70-TRACTOR TIER 3, JX80-TRACTOR TIER 3 Models

1шт.

Valid with VAR. 330204, VAR. 330007

1шт.

From serial N. (02 March 2011 Ankara Prod. / 25 October 2010 Jesi Prod.)

1шт.

4

9811773

FUSE,10A, Micro, Red

10A, Microval, Red

1шт.

Valid with FARMALL 60-TRACTOR - TIER 3, FARMALL 70-TRACTOR - TIER 3, FARMALL80-TRACTOR - TIER 3, JX60-TRACTOR TIER 3, JX70-TRACTOR TIER 3, JX80-TRACTOR TIER 3 Models

1шт.

4

84090658

FUSE,Lt Blue, 15 Amp

5A, Minival

1шт.

Valid with FARMALL 60-TRACTOR - TIER 3, FARMALL 70-TRACTOR - TIER 3, FARMALL80-TRACTOR - TIER 3, JX60-TRACTOR TIER 3, JX70-TRACTOR TIER 3, JX80-TRACTOR TIER 3 Models

1шт.

Valid with STD

1шт.

From serial N. (02 March 2011 Ankara Prod. / 25 October 2010 Jesi Prod.)

1шт.

4

9804895

FUSE,20A, Micro, Yellow

20A, Minival

1шт.

Valid with FARMALL 60-TRACTOR - TIER 3, FARMALL 70-TRACTOR - TIER 3, FARMALL80-TRACTOR - TIER 3, JX60-TRACTOR TIER 3, JX70-TRACTOR TIER 3, JX80-TRACTOR TIER 3 Models

1шт.

4

D9ZB14A094FA

FUSE

5A, Minival

1шт.

Valid with FARMALL 60-TRACTOR - TIER 3, FARMALL 70-TRACTOR - TIER 3, FARMALL80-TRACTOR - TIER 3, JX60-TRACTOR TIER 3, JX70-TRACTOR TIER 3, JX80-TRACTOR TIER 3 Models

1шт.

Valid with STD

1шт.

After Date (19 January 2010 Ankara Prod./ April 2010 Jesi Prod.)

1шт.

5

5080366

RELAY,12V, 30A

12V, 30A

1шт.

Valid with FARMALL 60-TRACTOR - TIER 3, FARMALL 70-TRACTOR - TIER 3, FARMALL80-TRACTOR - TIER 3, JX60-TRACTOR TIER 3, JX70-TRACTOR TIER 3, JX80-TRACTOR TIER 3 Models

1шт.
