Запчасти Case IH FARMALL 70 (1.32.1/04[02]) - 12X12 TRANSMISSION WITH SYNCHRO SHUTTLE - SHAFTS AND GEARS (STD, 743552-331251-743905) (03) - TRANSMISSION

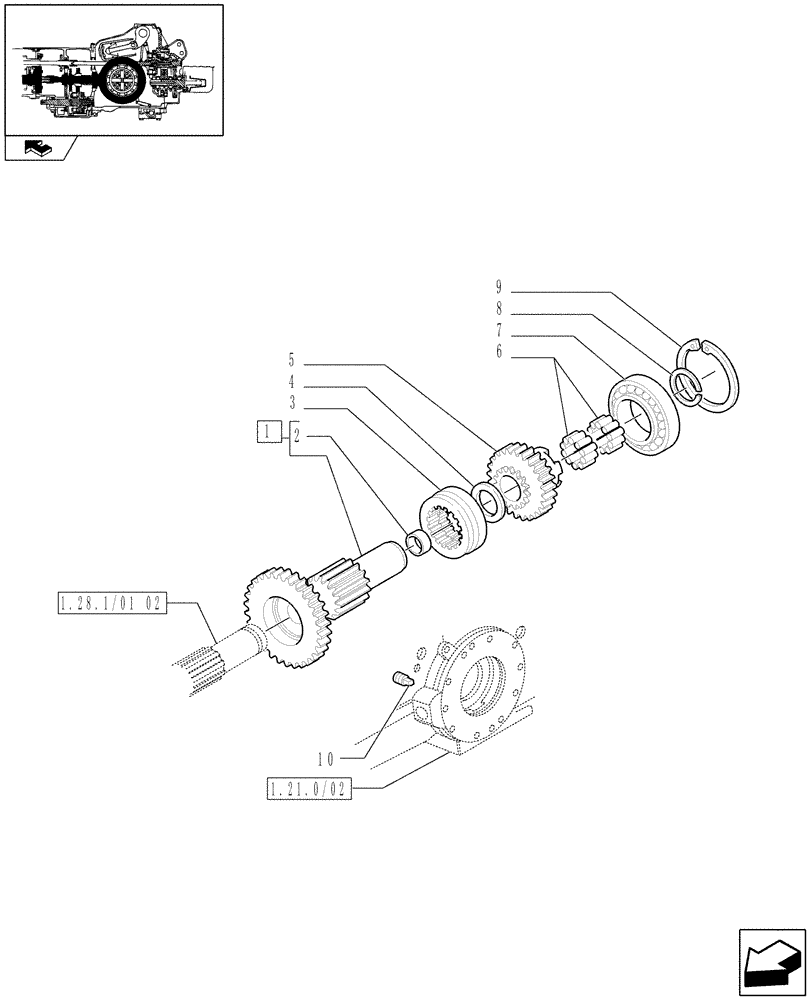

Схема запчастей Case IH FARMALL 70 - (1.32.1/04[02]) - 12X12 TRANSMISSION WITH SYNCHRO SHUTTLE - SHAFTS AND GEARS (STD, 743552-331251-743905) (03) - TRANSMISSION
9
10
7
4
6
2
home
1.28.1/01 02
1.21.0/02
3
8
5
1

Артикул

Название

Примечание

Количество

1

5176776

SHAFT

1шт.

Valid for 60 and 70 Models only

1шт.

1

5176751

MAIN SHAFT

Main

1шт.

Valid for 80 Model only

1шт.

2

4950081

BUSHING,25.08mm ID x 28.53mm OD x 18mm L

25 x 28.53 x 18

1шт.

3

5125880

SPLINED COUPLING,17T

1шт.

4

5109683

THRUST WASHER,42.05mm ID x 56mm OD x 4mm Thk

1шт.

5

5125013

GEAR

1шт.

Valid for 60 and 70 Models only

1шт.

5

5131169

GEAR

1шт.

Valid for 80 Model only

1шт.

6

5109747

NEEDLE BEARING,42mm ID x 47mm OD x 27mm W

42 x 47 x 27

2шт.

7

20141040

BALL BEARING,60mm ID x 110mm OD x 22mm W

60 x 110 x 22

1шт.

8

5117076

CIRCLIP,M47, Ext

D=47

1шт.

9

301652

SNAP RING,M110 x 4mm, Internal

1шт.

10

14323911

PLUG

M10

1шт.

Qty. 1 for 60 Model 70 Model; Qty. 2 for 80 Model

1шт.

Выбрано товаров: 17
