Запчасти Case IH FARMALL 70 (1.28.1/02[01]) - 12X4 (30KM/H) SYNCHROMESH TRANSMISSION - SHAFTS AND GEARS (VAR.335116) (03) - TRANSMISSION

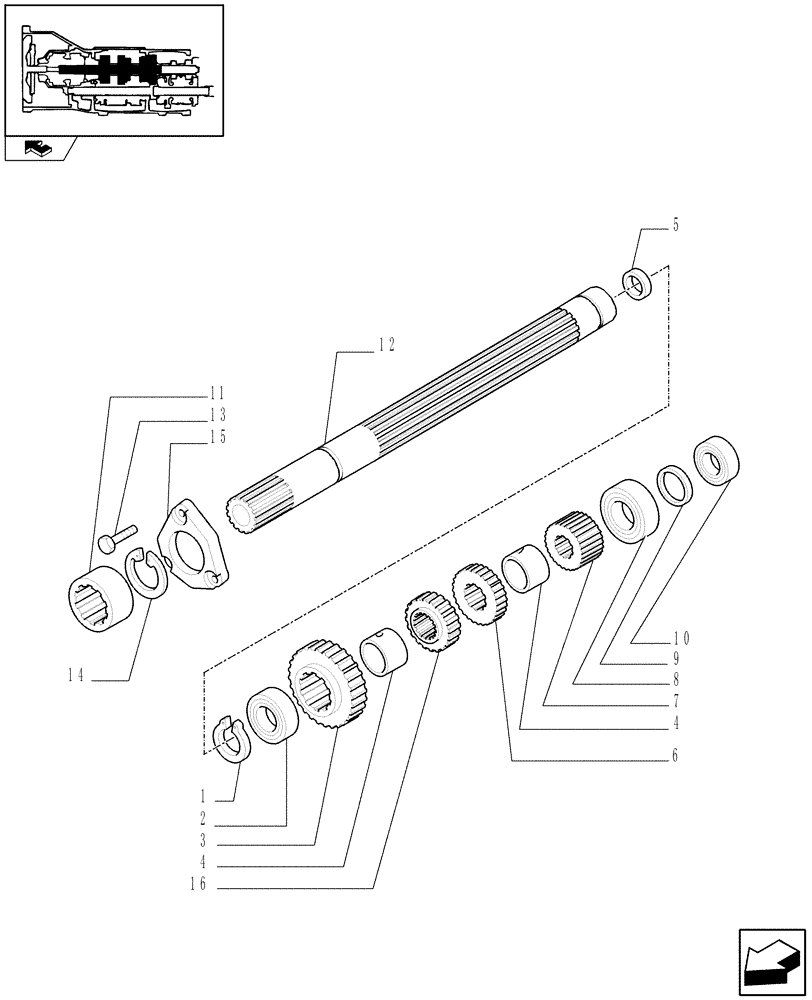

Схема запчастей Case IH FARMALL 70 - (1.28.1/02[01]) - 12X4 (30KM/H) SYNCHROMESH TRANSMISSION - SHAFTS AND GEARS (VAR.335116) (03) - TRANSMISSION
8
3
10
1
4
14
15
1
home
12
5
6
4
16
7
1
13
9
2

Артикул

Название

Примечание

Количество

1

11069076

SNAP RING,M45, Ext

1шт.

2

28996330

BALL BEARING,45mm ID x 85mm OD x 19mm W

45 x 85 x19

1шт.

3

5123982

DRIVING GEAR

4th Speed

1шт.

4

5111983

SPACER,44.55mm ID x 55mm OD x 35mm L

44.5 x 55 x 35

2шт.

5

84226406

OIL SEAL,25mm ID x 31mm OD x 7mm Thk

1шт.

6

5169606

DRIVING GEAR

2nd Speed

1шт.

7

5118912

DRIVING GEAR

1st Speed

1шт.

8

20943310

BALL BEARING,40mm ID x 90mm OD x 23mm W

40 x 90 x 23

1шт.

Valid for 60 and 70 Models only

1шт.

8

5138660

BEARING, ROLLER, CYL,40mm ID x 90mm OD x 23mm W

1шт.

Valid for 80 Model only

1шт.

9

5109669

WASHER,40.05mm ID x 55mm OD x 3mm Thk

1шт.

9

5118937

WASHER,40.05mm ID x 55mm OD x 3.25mm Thk

1шт.

9

5118938

WASHER,40.05mm ID x 55mm OD x 3.5mm Thk

1шт.

9

5118939

WASHER,40.05mm ID x 55mm OD x 3.75mm Thk

1шт.

9

5118940

THRUST WASHER,40.05mm ID x 55mm OD x 4mm Thk

1шт.

10

5147070

ROLLER BEARING,40mm ID x 80mm OD x 18mm W

40 x 80 x 18

1шт.

11

87302536

BALL BEARING,45mm ID x 85mm OD x 19mm W

45 x 85 x 19

1шт.

12

5123269

SHAFT

1шт.

13

14302824

HEX SOC SCREW,M8 x 1.25 x 18mm, Cl 8.8, Full Thd

3шт.

14

11062176

CIRCLIP,M85, Int

1шт.

15

5162671

COVER

1шт.

16

5179672

DRIVING GEAR

Gear Driving, 3nd Speed

1шт.

Выбрано товаров: 23
