Запчасти Case IH FARMALL 70 (1.28.1/01[02]) - 20X12 TRANSMISSION WITH SYNCHRO SHUTTLE AND CREEPER - DRIVEN GEARS (VAR.335113-335115-336115-743904) (03) - TRANSMISSION

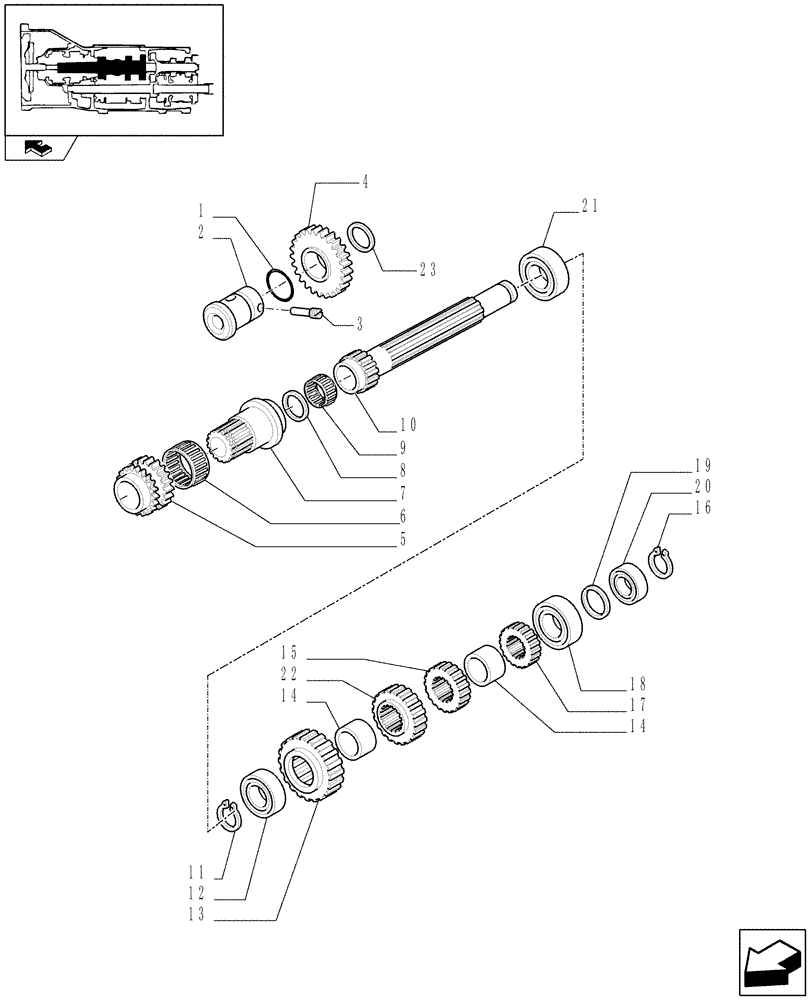

Схема запчастей Case IH FARMALL 70 - (1.28.1/01[02]) - 20X12 TRANSMISSION WITH SYNCHRO SHUTTLE AND CREEPER - DRIVEN GEARS (VAR.335113-335115-336115-743904) (03) - TRANSMISSION
1
15
14
4
home
7
18
11
6
21
22
16
9
10
8
19
20
3
13
23
2
14
17
12
5

Артикул

Название

Примечание

Количество

1

14457980

O-RING,0.103" Thk x 1.049" ID, -121, Cl 5, 75 Duro

1шт.

2

5161821

PIN

1шт.

3

5161823

ROLL PIN

1шт.

4

5175975

GEAR

1шт.

5

5160664

DRIVEN GEAR

1шт.

6

5149885

ROLLER CAGE BEARING,75mm ID x 81mm OD x 30mm W

1шт.

7

5160665

COUPLING

1шт.

8

5160672

SHIM,51mm ID x 58.5mm OD x 2.7mm Thk

1шт.

8

5160673

SHIM,51mm ID x 58.5mm OD x 2.9mm Thk

1шт.

8

5160674

SHIM,51mm ID x 58.5mm OD x 3.1mm Thk

1шт.

8

5160675

SHIM,51mm ID x 58.5mm OD x 3.3mm Thk

1шт.

8

5162094

SHIM,51mm ID x 58.5mm OD x 3.5mm Thk

1шт.

8

5162095

SHIM,51mm ID x 58.5mm OD x 3.7mm Thk

1шт.

9

5128943

NEEDLE BEARING,40mm ID x 45mm OD x 27mm W

1шт.

10

5160658

MAIN SHAFT

1шт.

11

5135061

CIRCLIP,M45, Ext

1шт.

12

28996330

BALL BEARING,45mm ID x 85mm OD x 19mm W

1шт.

13

5123982

DRIVING GEAR

1шт.

14

5111983

SPACER,44.55mm ID x 55mm OD x 35mm L

2шт.

15

5169606

DRIVING GEAR

1шт.

16

11068876

SNAP RING,M40, Ext

1шт.

17

5118912

DRIVING GEAR

1шт.

18

5138660

BEARING, ROLLER, CYL,40mm ID x 90mm OD x 23mm W

40 x 90 x 23

1шт.

Valid for 80 Model only

1шт.

18

20943310

BALL BEARING,40mm ID x 90mm OD x 23mm W

1шт.

Valid for 60 and 70 Models only

1шт.

19

5109669

WASHER,40.05mm ID x 55mm OD x 3mm Thk

1шт.

19

5118937

WASHER,40.05mm ID x 55mm OD x 3.25mm Thk

1шт.

19

5118938

WASHER,40.05mm ID x 55mm OD x 3.5mm Thk

1шт.

19

5118939

WASHER,40.05mm ID x 55mm OD x 3.75mm Thk

1шт.

19

5118940

THRUST WASHER,40.05mm ID x 55mm OD x 4mm Thk

1шт.

20

5147070

ROLLER BEARING,40mm ID x 80mm OD x 18mm W

1шт.

21

5097663

BALL BEARING,50mm ID x 90mm OD x 20mm W

1шт.

22

5179672

DRIVING GEAR

1шт.

23

5117570

THRUST WASHER,30mm ID x 48mm OD x 4.5mm Thk

Valid for 80 Model

1шт.

Transmission 20 x 12 Combinata with Front Axle and Limited Slip, VAR.335115 (743904)

1шт.

Выбрано товаров: 36
