Запчасти Case IH FARMALL 70 (1.25.0/01[01A]) - SINGLE LEVER PTO - CLUTCH - D6859 (VAR.335250) (03) - TRANSMISSION

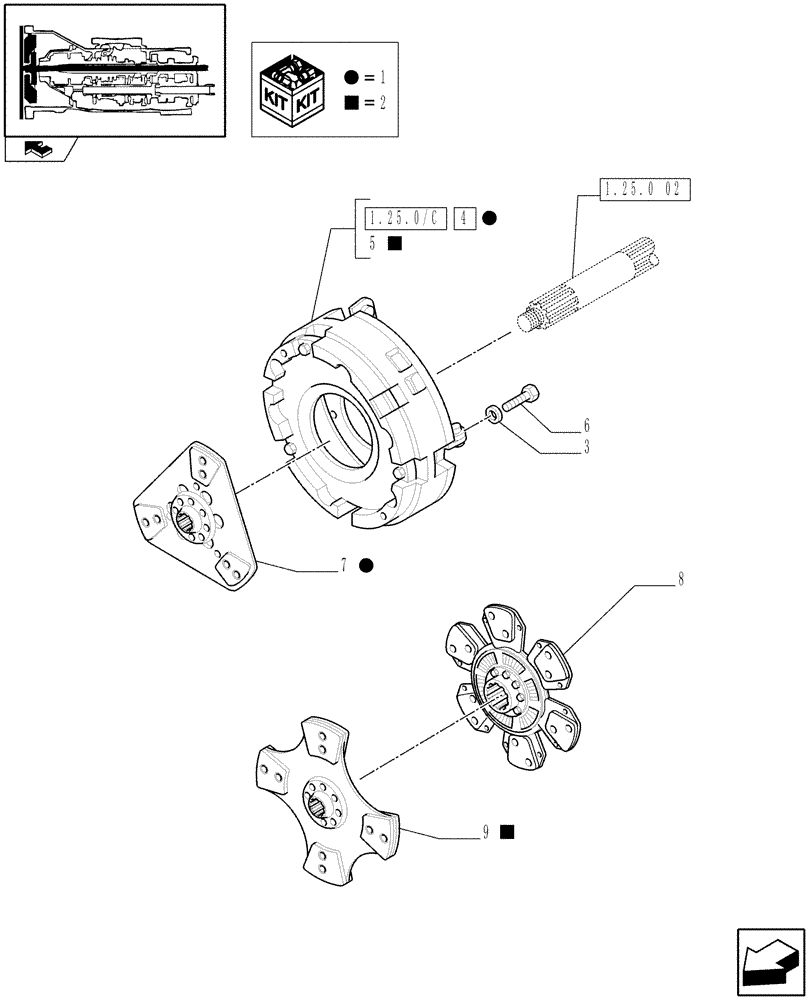

Схема запчастей Case IH FARMALL 70 - (1.25.0/01[01A]) - SINGLE LEVER PTO - CLUTCH - D6859 (VAR.335250) (03) - TRANSMISSION
7
5
3
2
2
1
1
2
6
1.25.0/c
home
1.25.0 02
4
1
2
1
9
8

Артикул

Название

Примечание

Количество

1

5097958

CLUTCH

ASSY

1шт.

Valid for 60 and 70 Models only

1шт.

2

84317689

CLUTCH

Valid for 80 Model only

1шт.

3

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

6шт.

4

5097959

CLUTCH

1шт.

Valid for 60 and 70 Models only

1шт.

4

5097959R

REMAN-CLUTCH ASSY

Valid for 60 and 70 Models only

1шт.

4

5097959C

CORE-CLUTCH ASSEMBLY

Return Part Number

1шт.

5

84317690

CLUTCH

Valid for 80 Model only

1шт.

5

84317690R

REMAN-CLUTCH ASSY

Valid for 80 Model only

1шт.

5

84317690C

CORE-CLUTCH ASSEMBLY

Return Part Number

1шт.

6

16044121

BOLT,Hex, M8 x 45mm, Cl 8.8

6шт.

7

47134882

CLUTCH PLATE,280mm OD

1шт.

7

47134882R

REMAN-CLUTCH PLATE

1шт.

7

47134882C

CORE-CLUTCH PLATE

Return Part Number

1шт.

8

84177329

CLUTCH PLATE,280mm OD

1шт.

Valid for 80 Model only

1шт.

9

47134874

CLUTCH PLATE,280mm OD

1шт.

Valid for 80 Model only

1шт.

9

47134874R

REMAN-CLUTCH PLATE

Valid for 80 Model only

1шт.

9

47134874C

CORE-CLUTCH PLATE

Return Number

1шт.

Выбрано товаров: 21
