Запчасти Case IH FARMALL 70 (1.25.0[01A]) - CLUTCH - D6378 (03) - TRANSMISSION

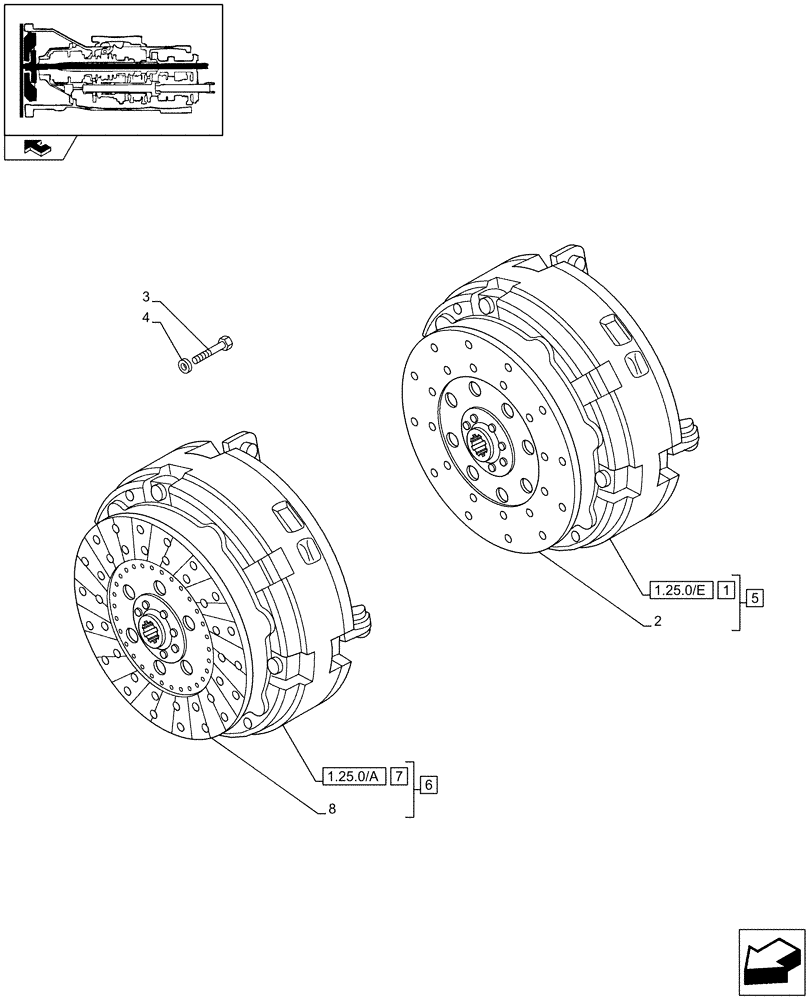

Схема запчастей Case IH FARMALL 70 - (1.25.0[01A]) - CLUTCH - D6378 (03) - TRANSMISSION
home
1.25.0/a
6
4
5
2
1
1.25.0/e
8
7
3

Артикул

Название

Примечание

Количество

1

84177326

CLUTCH

1шт.

Valid for 60 and 70 Models only

1шт.

84177326R

REMAN-CLUTCH ASSY

FARMALL 60, FARMALL 70, FARMALL 80 All TRACTOR - TIER 3 (12/08-)

1шт.

84177326C

CORE-CLUTCH ASSEMBLY

Return Number

1шт.

2

5154703

CLUTCH PLATE,280mm OD

1шт.

Valid for 60 and 70 Models only

1шт.

5154703R

REMAN-CLUTCH PLATE

Reman For New PN 5154703

1шт.

5154703C

CORE-CLUTCH PLATE

Return Number

1шт.

Valid for 60 and 70 Models only

1шт.

2

5092788

CLUTCH PLATE,280mm OD

TD5030

1шт.

5092788R

REMAN-CLUTCH PLATE

Reman for New PN 5092788

1шт.

5092788C

CORE-CLUTCH PLATE

Return Number

1шт.

3

43129

BOLT,Hex, M8 x 1.25 x 40mm, LH Thd, Cl 8.8

6шт.

4

11193879

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

6шт.

5

84177325

CLUTCH

1шт.

Valid for 60 and 70 Models only

1шт.

84177326R

REMAN-CLUTCH ASSY

FARMALL 60, FARMALL 70, FARMALL 80 All TRACTOR - TIER 3 (12/08-) Reman For New P/N 84177325

1шт.

84177326C

CORE-CLUTCH ASSEMBLY

Return Number

1шт.

6

84328336

CLUTCH

TD5030

1шт.

6

5097924

CLUTCH

, Serial Range: -C6807

1шт.

Valid for 80 Model only

1шт.

Cerametallic Clutch, VAR.335248, Valid for 60 Model, 70 Model only

1шт.

6

84328336

CLUTCH

, Start Serial: D6807

1шт.

Cerametallic Clutch, VAR.335248 Valid for 60 Model, 70 Model only

1шт.

Valid for 80 Model only

1шт.

7

47583372

CLUTCH,337mm OD

TD5030

1шт.

7

47583372R

REMAN-CLUTCH ASSY

TD5030

1шт.

7

47583372C

CORE-CLUTCH ASSEMBLY

Reman Return Number

1шт.

7

47953610R

Reman Clutch Assy For 47583372R

REMAN-CLUTCH ASSY

1шт.

7

47953610C

Return Number

CORE-CLUTCH ASSEMBLY

1шт.

7

5097925

CLUTCH

, Serial Range: -C6807

1шт.

Cerametallic Clutch, VAR.335248 Valid for 60 Model, 70 Model only

1шт.

Valid for 80 Model only

1шт.

5097925R

REMAN-CLUTCH PLATE

Reman for New PN 5097925

1шт.

5097925C

CORE-CLUTCH PLATE

Return Number

1шт.

7

47583372

CLUTCH,337mm OD

, Start Serial: D6807

1шт.

Cerametallic Clutch, VAR.335248 Valid for 60 Model, 70 Model only

1шт.

Valid for 80 Model only

1шт.

8

5092788

CLUTCH PLATE,280mm OD

1шт.

Valid for 80 Model only

1шт.

5092788R

REMAN-CLUTCH PLATE

Valid for 80 Model only

1шт.

5092788C

CORE-CLUTCH PLATE

Return Number

1шт.

Выбрано товаров: 42
