Запчасти Case IH FARMALL 70 (1.21.0[02A]) - REAR TRANSMISSION BOX - CAPS AND COVERS - D6839 (03) - TRANSMISSION

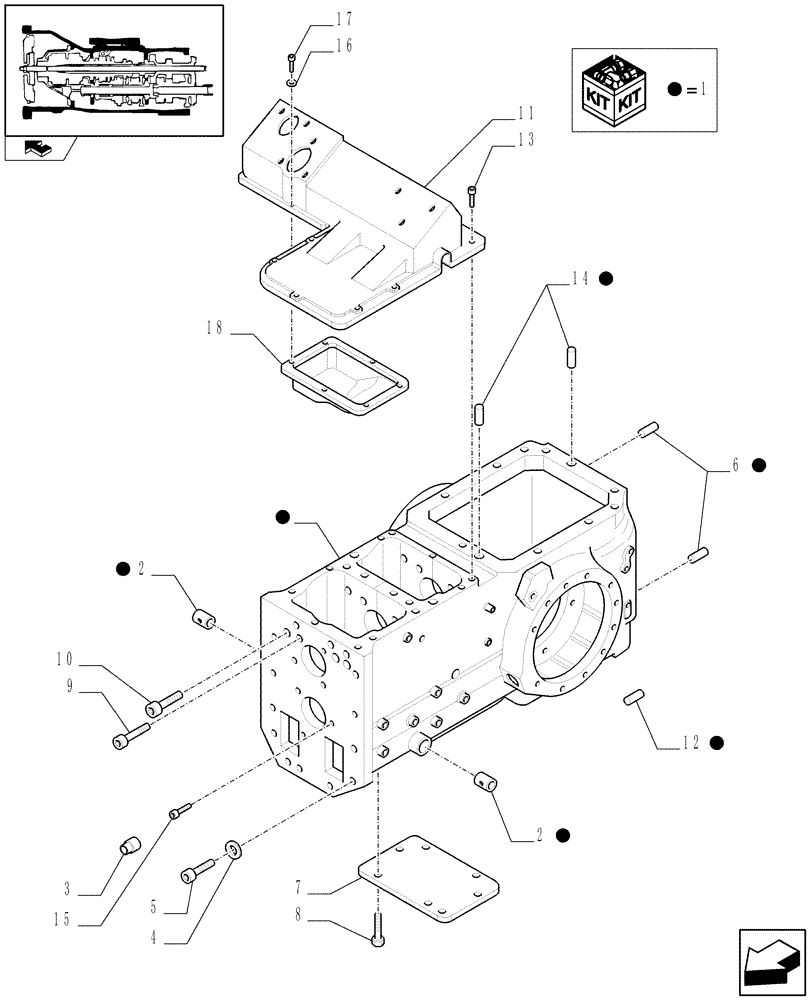

Схема запчастей Case IH FARMALL 70 - (1.21.0[02A]) - REAR TRANSMISSION BOX - CAPS AND COVERS - D6839 (03) - TRANSMISSION
1
8
4
1
15
1
3
13
9
11
10
16
1
2
17
home
1
1
1
2
7
12
18
6
14
1
5

Артикул

Название

Примечание

Количество

1

84365338

TRANSMISSION HOUSING

, Serial Range: -C6899

1шт.

1

84424274

TRANSMISSION HOUSING

, Start Serial: D6899

1шт.

2

5118942

BUSHING,30.05mm ID x 34mm OD x 30mm L

1шт.

3

14328504

PLUG

1шт.

4

15543434

BOLT,Hex, M12 x 1.25 x 145mm, Cl 10.9

2шт.

5

15970921

SCREW,Hex, M10 x 1.25 x 35mm, Cl 8.8, Full Thd

1шт.

6

10839810

DOWEL,12mm OD x 18mm L

2шт.

7

5195411

COVER

2WD

1шт.

8

15540424

SCREW,Hex, M12 x 1.25 x 30mm, Cl 8.8, Full Thd

6шт.

9

15540734

BOLT,Hex, M12 x 1.25 x 45mm, Cl 10.9

2шт.

10

15540631

BOLT,Hex, M12 x 1.25 x 40mm, Cl 10.9, Full Thd

10шт.

11

5089402

COVER

1шт.

12

10839910

DOWEL,15mm OD x 20mm L

2шт.

13

16204524

BOLT,Hex, M10 x 1.25 x 35mm, Cl 8.8

8шт.

14

5119529

DOWEL,15mm OD x 22mm L

2шт.

15

11198673

LOCK WASHER,13mm ID x 24mm OD x 0.6mm Thk

12шт.

16

11197779

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

6шт.

17

14305111

SCREW,Cheese Hd, M6 x 12mm

6шт.

18

5089709

GUARD

1шт.

Выбрано товаров: 19
