Запчасти Case IH FARMALL 65C (90.160.BI[01]) - VAR - 390124, 336125, 338125, 336780 - CAB INTERIOR TRIM, PILLAR, RH (90) - PLATFORM, CAB, BODYWORK AND DECALS

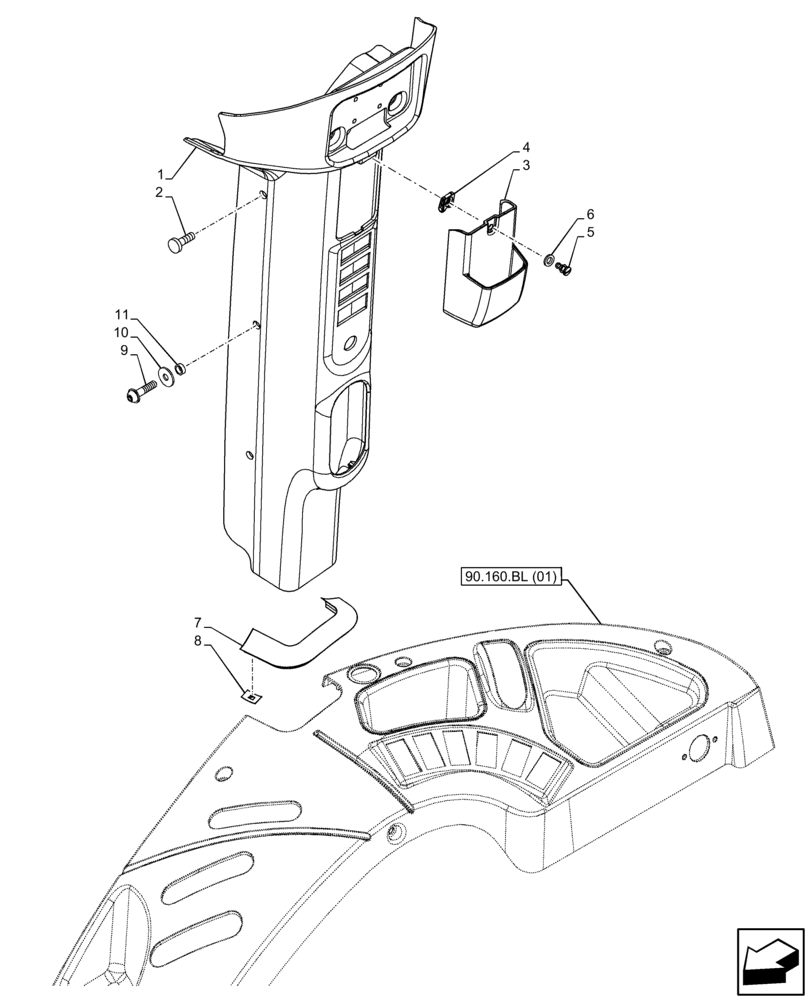

Схема запчастей Case IH FARMALL 65C - (90.160.BI[01]) - VAR - 390124, 336125, 338125, 336780 - CAB INTERIOR TRIM, PILLAR, RH (90) - PLATFORM, CAB, BODYWORK AND DECALS
5
1
8
7
11
6
10
4
2
3
9
90.160.bl (01)

Артикул

Название

Примечание

Количество

1

84315058

TRIM

Pillar, RH

1шт.

2

82023460

STUD,M7.85 x 19.50mm, Plastic

5шт.

3

84315044

SUPPORT

Phone

1шт.

4

84291986

CLIP,18.8mm L x 15.9mm W

Squared, 15.9mm

1шт.

5

84354393

PIN,18.8mm L

10.1mm Head, 18.8mm H

1шт.

6

84354903

THRUST WASHER,10.2mm OD x 1mm Thk

10.16mm OD

1шт.

7

84345365

RUBBER SEAL,121.9mm L

Pillar, RH

1шт.

8

14183474

PUSH-ON NUT,M4, Push

5шт.

9

84375323

SCREW,Torx RWHD, M6 x 25mm, Cl 10.9, Full Thd, W/ Chem Lock

1шт.

10

12643701

WASHER,6.15mm ID x 18mm OD x 1.5mm Thk

1шт.

11

47406348

SPACER,7mm ID x 9.5mm OD x 3.5mm L

9.5mm OD x 7mm ID x 3.5mm H

1шт.

Выбрано товаров: 11
