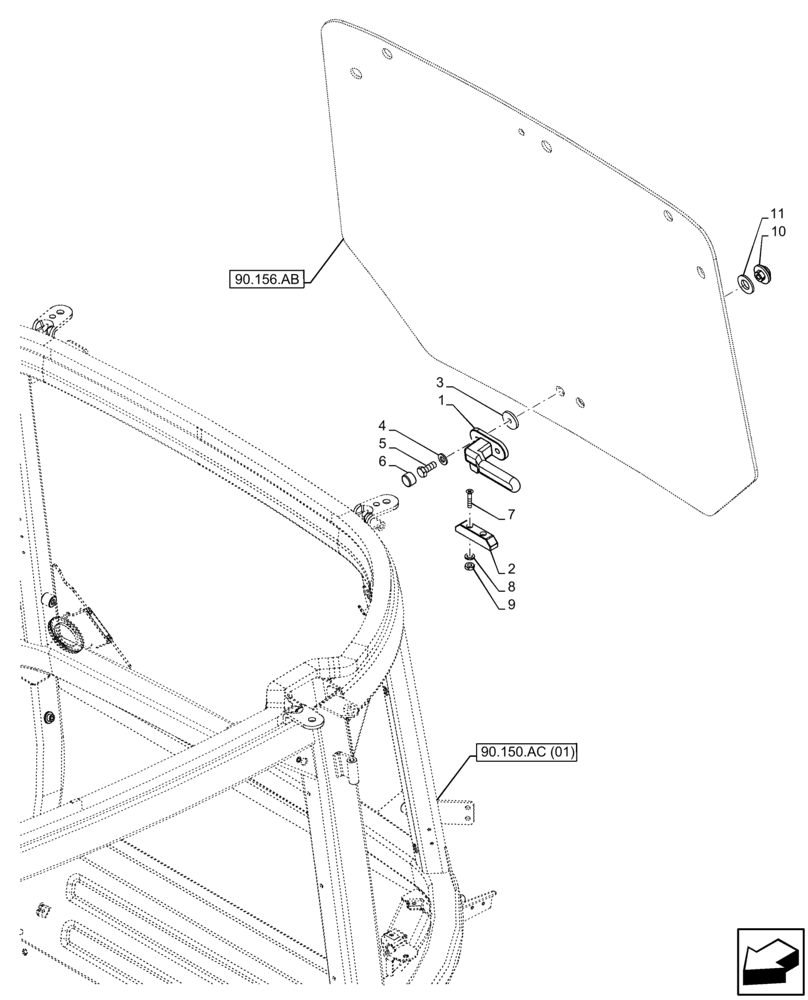

Запчасти Case IH FARMALL 65C (90.156.AA) - VAR - 334183, 334211, 391606, 743496, 743573, 744588 - WINDOW, REAR, HANDLE (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

5089564

HANDLE

Rear Glass

1шт.

2

5094377

BRACKET

Lock Lever

1шт.

3

5094375

WASHER,8mm ID x 32.2mm OD x 3.9mm Thk

32.2mm OD x 8mm ID x 3.9mm H

2шт.

4

11194074

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.9mm Thk

2шт.

5

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

6

5089481

CAP,17mm OD

2шт.

7

843-2525

SCREW,M5 x 25mm L

M5 x 25 Cl 4.5 Zinc

2шт.

8

10519301

WASHER,5.3mm ID x 9.55mm OD x 1mm Thk

2шт.

9

14048617

LOCK NUT,M5 x .8

2шт.

10

5094141

NUT,Spheric, M8

M8, Plastic

2шт.

11

5094140

WASHER,19mm ID x 39mm OD x 4mm Thk

39mm OD x 19mm ID x 4mm H

2шт.
